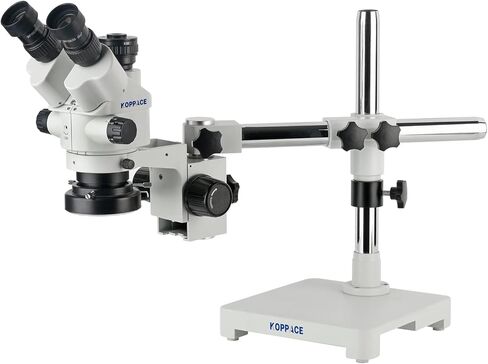

Model：KP-N45TR-L1
Optical Enlargement：3.5X-90X

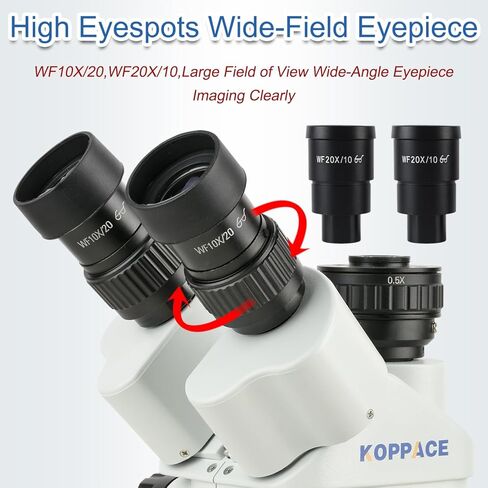

Eyepiece：High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10
Field of View：4.44mm-57.14mm

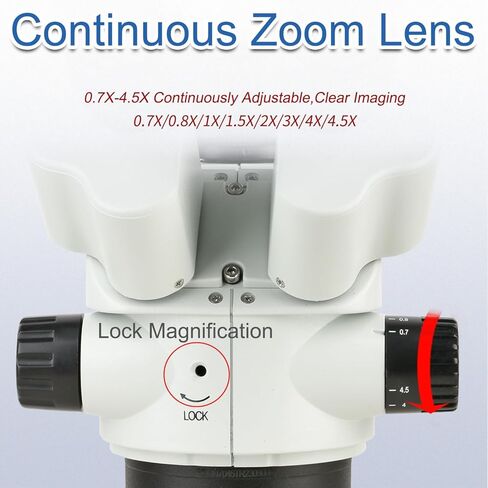

Objective Lens：0.7X-4.5X
Viewing Head：

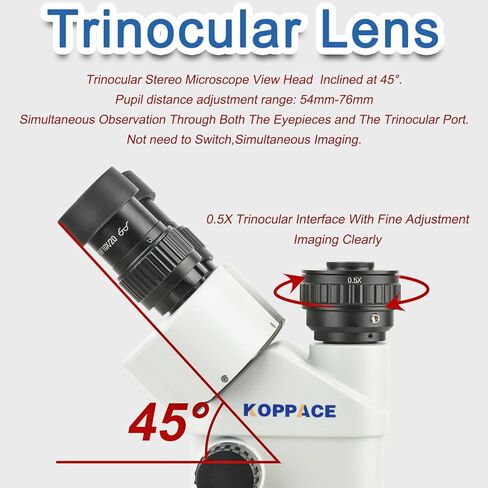

Trinocular Stereomicroscope View Head Inclined at 45°.

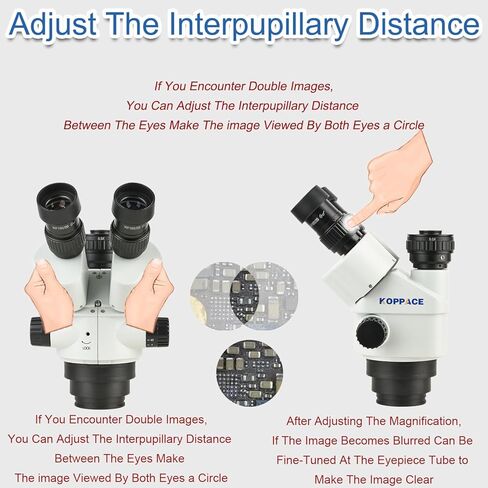

The Pupil Distance Adjusting Range 54mm-76mm,With Magnification Locking Function

Working Distance：100mm-165mm
Focusing Bracket：Focusing Handwheel Tightness is Adjustable,lifting Range 50mm

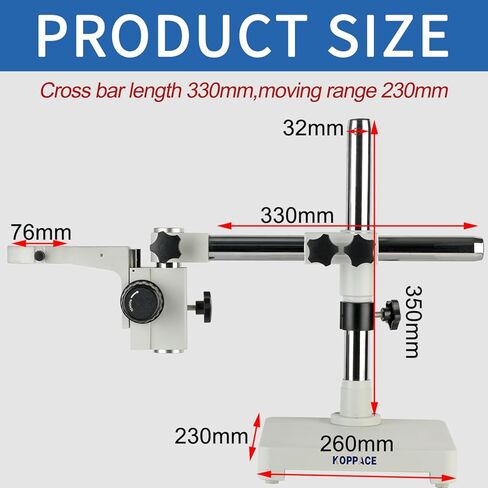

Single-Arm Bracket：Base Column 230X260X40mm,Column Diameter 32mm,Lens Aperture 76mm,Vertical Height 350mm,Horizontal Movement 230mm

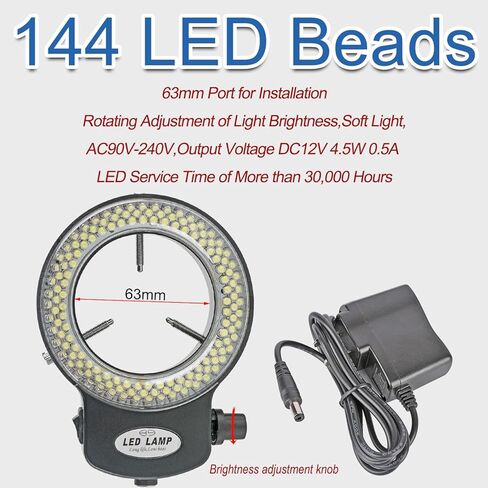

LED Light Source：LED Qty 144,Internal Diameter Size 63mm,Diameter Size 94mm,Input voltage AC90—240V,Maximum Output Power 4.5W,Voltage 12V0.5A
Trinocular Interface：0.5X CTV

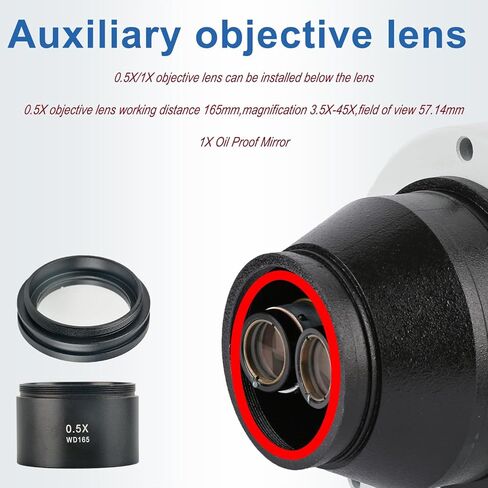

Auxiliary Lens：0.5X/165mm,1X oil Proof Mirror

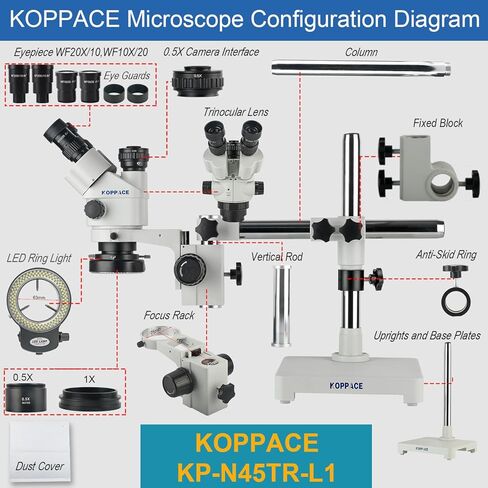

Packing List :
1、Eyepiece WF10X/20 One Pair
2、Eyepiece WF20X/10 One Pair
3、Focus Rack *1
4、Eye Guards One Pair
5、Trinocular Zoom Lens *1 (With Magnification Locking Function)
6、LED Ring Light *1
7、Single-Arm Bracket *1
8、Pillar Stand and Base Plate *1
9、Dust Cover *1
10、Anti-Skid Ring *1
11、0.5X Auxiliary Lens *1
12、1X Oil Proof Mirror *1
13、Trinocular Interface 0.5X CTV *1
14、Fixed Block *1
15、Vertical Rod *1

Note: Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.Not Need to Switch,Simultaneous Imaging.
