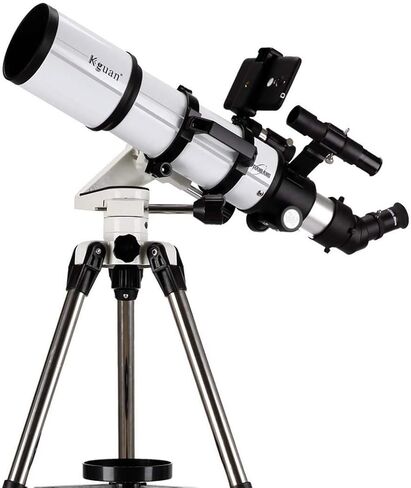

Model: 80AZ-W-2 "Type / 90AZ-W-2" type
Optical structure: double separation four surface image correction refraction
Effective caliber: 80mm/90mm
Objective lens focal length: 600mm (f / 7.5) / 500mm (f / 5.6)

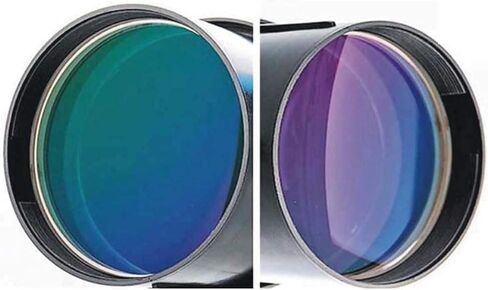

Optical coating: full surface multilayer broadband coating
Eyepiece: PL25mm， 62F10mm
Extender: 3x
Effective magnification: 24x60x72x180x/20x50x60x150x
Zenith mirror: 45° full positive image
Optical Finder: 6×25 five-piece three-group broadband optical structure

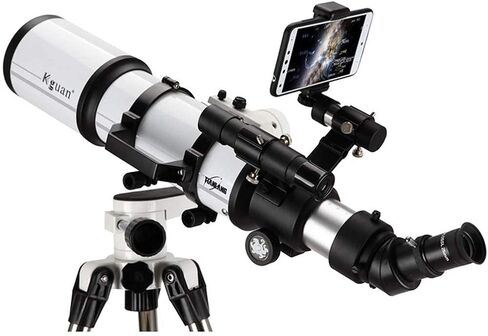

Mobile phone finder: coaxial calibration connection
Focusing interface: 2 inches (50.8mm)
Tracking system: side arm type warp and weft double axis micro motion type
Support system: stainless steel tripod
Portable packaging: thick shockproof backpack
Product weight: 6kg (about)
annotation
Effective caliber 80mm/90mm
AZ: ground level warp and weft bracket
W: fretting tracking
2": Focusing terminal interface 2 inches (50.8mm)
