Product Description:

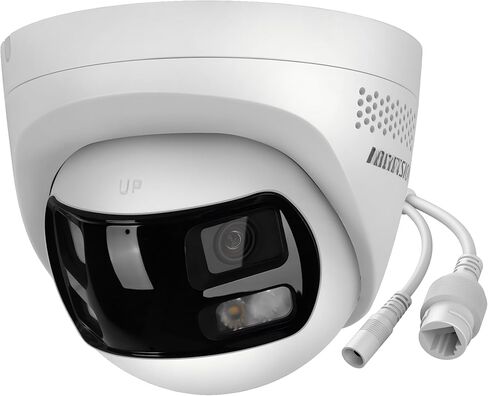

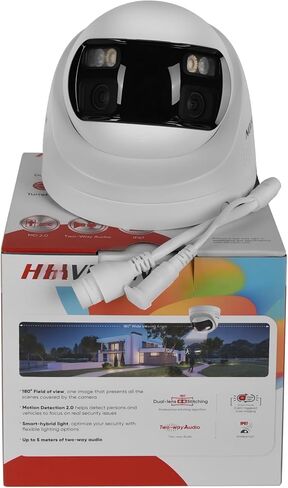

Upgrade your security with Ⲏikvision DS-2CD1383G2P-LIUF/SL 8MP Smart Hybrid Light Turret Camera – engineered for 24/7 professional surveillance.

Why Choose This PoE Camera?
Dual-Lens Stitching Technology: Capture seamless 180° ultra-wide views (horizontal) for parking lots, yards, or large retail spaces.
Proactive Intrusion Prevention: Active strobe light and customizable audio alarms scare off trespassers before incidents occur.
Enterprise-Grade Compression: H.265+ reduces bandwidth/storage usage by 80% vs. H.264 while maintaining 8MP clarity.
Flexible Installation: Compact turret design blends into any environment. PoE support simplifies wiring (12V DC optional).

Ideal For:
Home Security Systems
Business/Retail Surveillance
Construction Site Monitoring
Perimeter Protection

Technical Specs:
Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max. Resolution: 4256 × 1888
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2 mm
Focal Length & FOV: 2 mm, horizontal FOV 180°, vertical FOV 77°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI
DORI: 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m

Illuminator
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream
50 Hz: 20 fps (4256 × 1888)
60 Hz: 20 fps (4256 × 1888)

Sub-Stream
50 Hz: 20 fps (1200× 536, 960 × 432)
60 Hz: 20 fps (1200× 536, 960 × 432)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Region of Interest (ROI): 1 fixed region for main stream
Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio
Audio Type: Mono sound
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: ONVlF (Profile S, Profile T, Profile G),ISAPI,SDK
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 11,
Local service: Chrome 80+, Firefox 80+, Edge 89+

Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes,1 built-in microphone
Built-in Speaker: Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset Key: Yes

Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

General
Power: 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 11.5 W
Material: Base: Metal, cover: Plastic
Dimension: Ø130.1 mm × 109.1 mm (Ø5.1" × 4.3")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 586 g (1.3 lb.)
With Package Weight: Approx. 760 g (1.7 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
General Function: Heartbeat,anti-banding,password protection,password reset via email
Flashing Light/SL model: White Light
