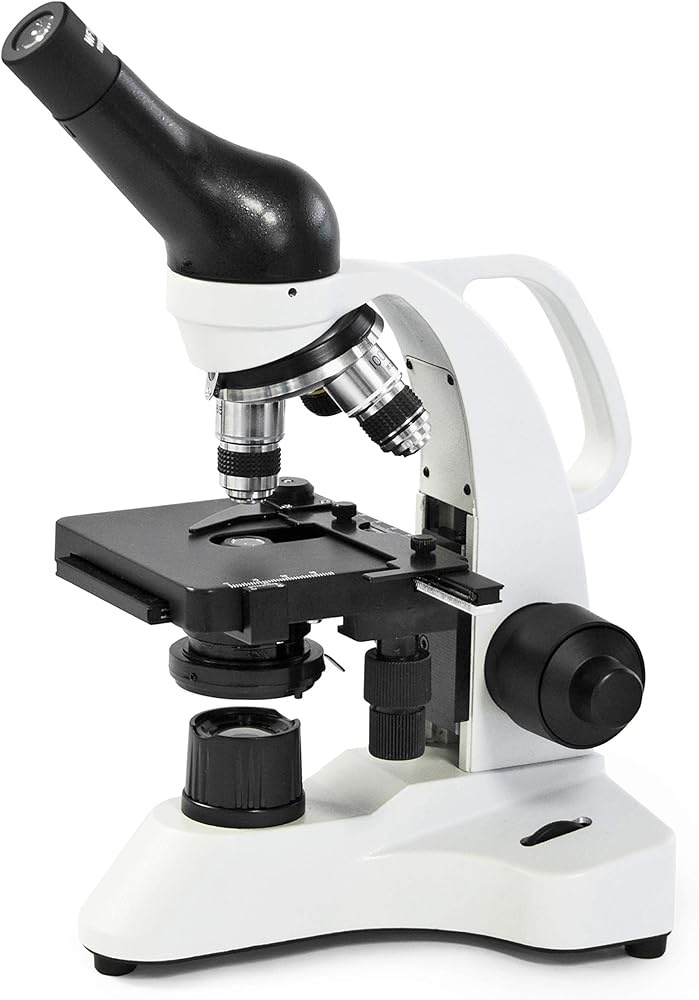

The ME61 LED compound microscope is the ultimate educational tool with top optical quality and durability. The modern and versatile design makes it an ideal choice for students. A conveniently placed handle on the arm allows for easier mobility and hassle-free transfer from place to place.

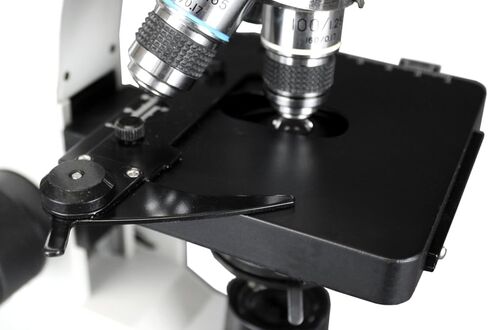

The built-in mechanical stage allows for precise, accurate positioning and smooth movement of the slide. The WF 10X and WF 20X eyepieces are interchangeable, allowing for increased magnification from 40X to 2000X.
Rugged cast aluminum construction. Packed in a fitted styrofoam box; includes a dust cover and instruction manual. 5-year limited warranty excluding bulbs.
Specification:
Head: Monocular, 45° inclined, rotates 360°
Eyepiece: WF 10X with pointer / WF 20X
Magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X
Objective Lens: 4X, 10X, 40XR, 100XR; achromatic color-coded; parcentered and parfocaled
Nosepiece: 4 hole objective turret; reverse position with click-stops

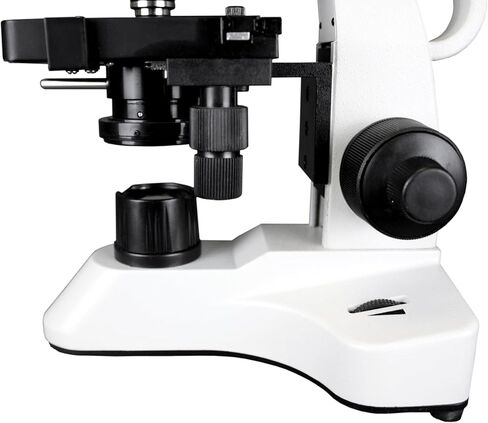

Focusing: Coaxial coarse and fine focusing
Condenser: 1.25 N.A Abbe condenser, Iris diaphragm, swing-out filter holder
Stage: 105mm x 95mm stage ; built-in, double-layer with low position coaxial x-y controls
Light source: LED with intensity control
Power: 110V
Overall Dimensions: 13” x 5.5” x 7” – 6lbs
Packing List:
One monocular microscope with built-in mechanical stage and built-in LED illumination
One 10X wide-field eyepiece with pointer
One 20X wide-field eyepiece
4X DIN achromatic objective
10X DIN achromatic objective
40XR DIN achromatic objective
100XR DIN achromatic objective
Immersion oil for 100XR DIN achromatic objective
One dust cover
User Manual
