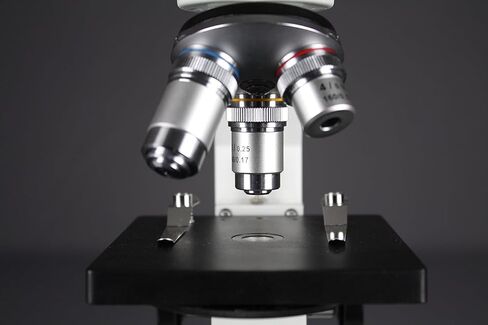

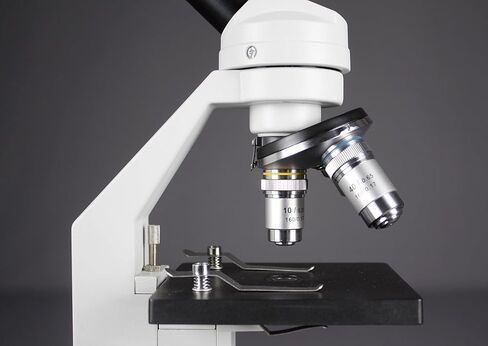

This compound microscope is ideal for High School instruction. Cool-to-touch, long-lasting LED Illumination is equipped with intensity control. Ball-bearing objective turret is mounted, allowing for smooth alignment while positive click stops ensure precise magnification.
DIN achromatic objectives are parfocal and parcentered to provide sharp, color-corrected images. Coarse and fine focusing knobs are positioned low on bracket near base, making certain that adjustments are made with maximum stability and minimum strain.
Rugged cast aluminum with gray enamel finish. Packed in a fitted styrofoam box; includes a dust cover and an instruction manual. 5-year limited warranty excluding bulbs.
Specifications
Head: Monocular, 45° inclined, rotates 360°
Eyepiece: WF 10x with pointer & WF 20x
Magnification: 40x, 80x, 100x, 200x, 400x, 800x
Objective Lens: 4x, 10x, 40xS DIN achromatic
Stage: Large 110mm x 120mm
Focusing: Separate coarse and fine focus
Condenser: 0.65 N.A lens
Diaphragm: 5 hole disc diaphragm
Light Source: LED Illumination with intensity control
Power: 110V
Overall Dimensions: 5.2” x 6.9” x 14.2” 4lbs

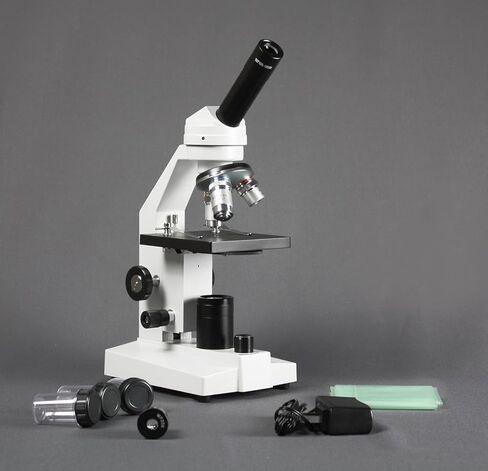

Packing List:
One monocular microscope with plain stage and built-in LED illumination
One 10X wide-field eyepiece with pointer
One 20X wide-field eyepiece
4X DIN achromatic objective
10X DIN achromatic objective
40XR DIN achromatic objective
two stage clips
Power adaptor
One dust cover
User Manual
One wrench
