Reverse nosepiece, coaxial coarse and fine focus; Five levels of magnification 40x, 100x, 250x, 400x, 1000x

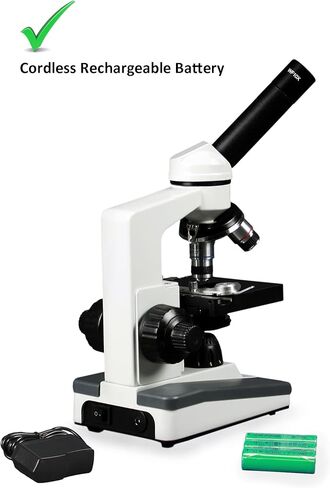

The rechargeable battery enhances flexibility, adding a cordless feature, which guarantees easy transport and increased mobility

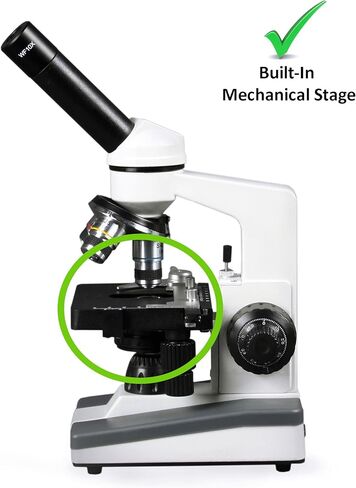

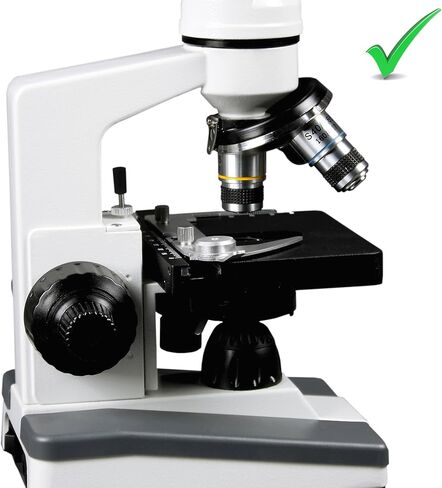

Double layer, built-in mechanical stage is low-profile and ball-bearing, with a mounted specimen holder, ensuring easy mobility and precise control of specimen under observation

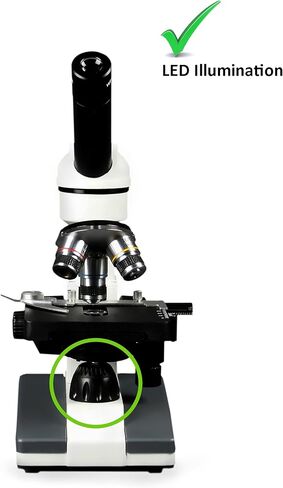

LED illumination guarantees a clear and crisp, cool-to-touch white light that lasts up to 60X longer than traditional tungsten bulbs. A/C adapter for traditional power supply or rechargeable battery operated system
Scaled back, simple design of microscope, ideal for young students. It has many of the standard microscope features most commonly used in North America, with rugged metal components engineered for years of reliable performance
وصف

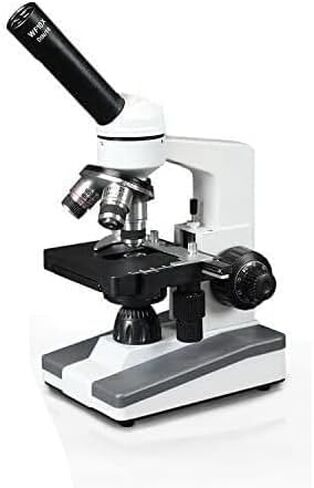

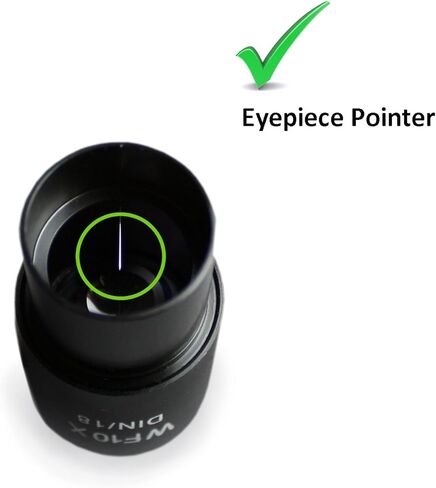

This monocular compound microscope has a 10x widefield eyepiece with a pointer, and a 25x widefield eyepiece. The 45° inclined monocular viewing head reduces eye and neck strain and rotates 360° to provide trouble-free observation for two people. An eyepiece pointer ensures that definite points on the slide can be easily designated and quickly identified.
Specifications
Head: Monocular, 45° inclined, rotates 360°

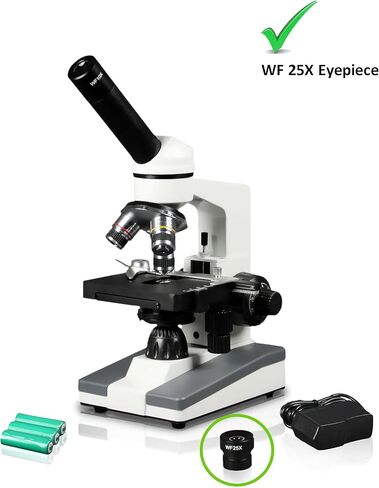

Eyepiece: WF 10X with pointer, WF 25X Eyepiece
Magnification: 40x, 100x, 250x, 400x, 1000x
Objective Lens: 4x, 10x, 40xR achromatic objectives
Nosepiece: 3 hole objective turret; reverse position
Stage: Built in, double layer mechanical stage 4” x 3 ½ “ (W x D)
Focusing: Coaxial coarse and fine focusing with gear movement for smooth operation
Condenser: 0.65 Abbe Condenser
Diaphragm: Iris Diaphragm
Light Source: LED Illumination with intensity control
Power: 110V or Rechargeable (Cordless) Batteries
Warranty:5 year limited warranty excluding bulbs
Packing List
Monocular biological microscope with LED illumination
One 10x wide-field eyepieces with pointer
One 25x wide-field eyepieces
4x, 10x, 40x objectives
Double layer, built-in mechanical stage with 2 Stage clips
3AA batteries
Power adaptor
One dust cover
User manual
