This compound microscope is perfect for any educational application or classroom, elementary to high school, or for basic biological/laboratory use.
Cool-to-touch, long-lasting LED Illumination is equipped with intensity control. Ball-bearing objective turret is mounted, allowing for smooth alignment while positive click stops ensure precise and immediate magnification.
DIN achromatic objectives are parfocaled and parcentered to provide sharp, color-corrected images. Coarse and fine focusing knobs are positioned low on bracket near base, making certain that adjustments are made with maximum stability and minimum strain.
Rugged cast aluminum with gray enamel finish. Packed in a fitted styrofoam box; includes a dust cover and an instruction manual. 5-year limited warranty excluding bulbs.
Specification
Head: Dual View, 45° inclined, rotates 360°
Eyepiece:WF 10x with pointer / WF 25x eyepiece
Objective Lens:4x, 10x, 40x DIN achromatic
Magnification:40x, 100x, 250x, 400x, 1000x

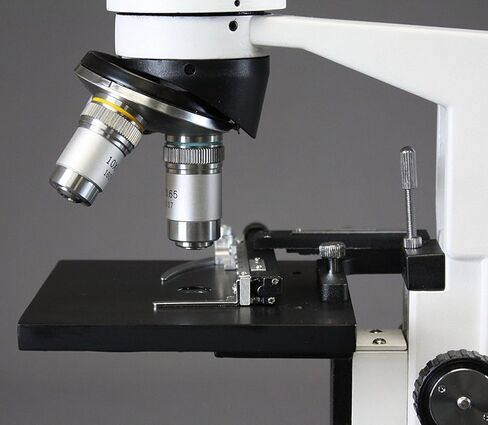

Stage:Large 110mm x 120mm (4 ⅜” x 4 ¾”) mechanical stage with a pair of stage clips
Focusing: Separate coarse and fine focus
Condenser: 0.65 N.A lens
Diaphragm:5 hole disc diaphragm
Light Source:LED Illumination with intensity control
Power:110V
Packing List

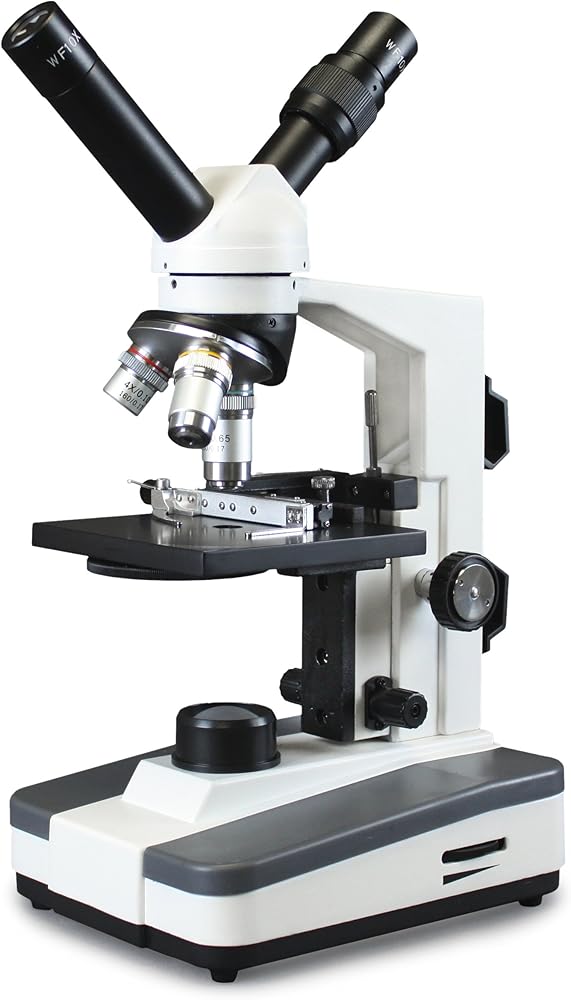

One 45° dual view microscope with mechanical stage and built-in LED illumination

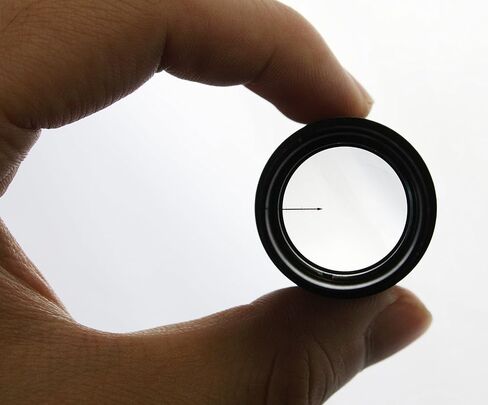

One 10X wide-field eyepiece with pointer
One 25X wide-field eyepiece
4X DIN achromatic objective
10X DIN achromatic objective
40XS DIN achromatic objective
two stage clips
Power adaptor
Three rechargeable batteries
One dust cover
User Manual
