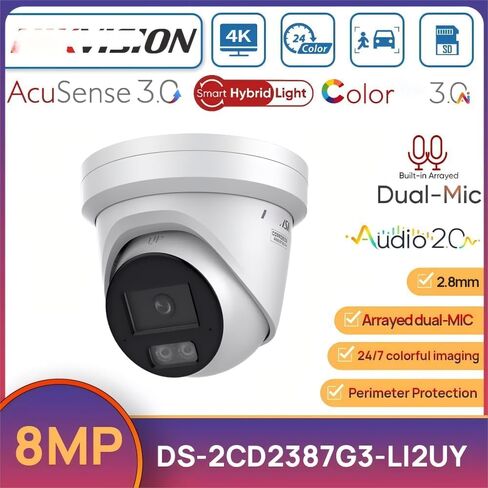

Ⲏikvision DS-2CD2387G3-LI2UY 8MP Outdoor Security Camera with Color Night Vision, Smart Hybrid Light, IP67 & AI Detection, 2.8mm Lens, 512GB SD Slot for Outdoor / Indoor Usage

Why Choose This Security Camera?
Upgrade your home or business security with Ⲏikvision 8MP Smart Hybrid Light Turret Camera, engineered for 24/7 reliability. Its Color View technology ensures vivid color footage day and night, while AI-driven person/vehicle classification minimizes irrelevant alerts. The IP67-rated anti-corrosion housing outperforms standard NEMA4X models, ideal for coastal or industrial areas. With built-in dual microphones and 3 supplemental lighting modes, monitor properties in total darkness with audio clarity. Compatible with Hikvision NVR systems or standalone use.

Technical Specifications:
Camera
Image Sensor：1/1.8" Progressive Scan CMOS
Max. Resolution：3840 × 2160
Min. Illumination：Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time：1 s to 1/100,000 s
Day & Night：IR cut filter
Angle Adjustment：Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens Type：Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV：2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
Lens Mount：M16
Iris Type：Fixed
Aperture：F1.0
Depth of Field：2.8 mm: 3.3 m to ∞

DORI
DORI：2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

Illuminator
Supplement Light Type：White Light,IR
Supplement Light Range：Up to 30 m
Smart Supplement Light：Yes
IR Wavelength：850 nm

Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate：32 Kbps to 16 Mbps
H.264 Type：Baseline Profile,Main Profile,High Profile
H.265 Type：Main Profile
Bit Rate Control：CBR,VBR
Scalable Video Coding (SVC)：H.264 and H.265 encoding
Region of Interest (ROI)：1 fixed region for main stream

Audio
Audio Type-2U: Mono sound
Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering-2U: Yes

Network
Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View：Up to 6 channels
API：ONVlF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host：Up to 32 users
3 user levels: administrator, operator, and user
Network Storage：NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client：iVMS-4200,Hik-Connect,Hik-Central
Web Browser：Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 80+, Firefox 80+, Edge 89+

Image Parameters Switch：Yes
Image Settings：Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch：Day,Night,Auto,Schedule
Image Enhancement：BLC,HLC,3D DNR,Distortion Correction,Defog
SNR：≥ 52 dB

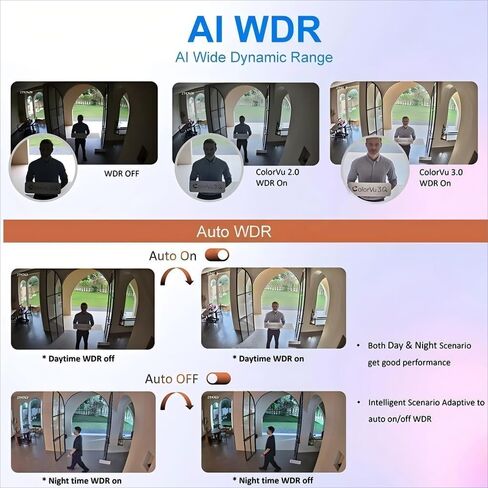

Wide Dynamic Range (WDR)：130 dB
Image Stabilization：EIS
Privacy Mask：4 programmable polygon privacy masks

Interface
Ethernet Interface：1 RJ45 10 M/100 M self-adaptive Ethernet port

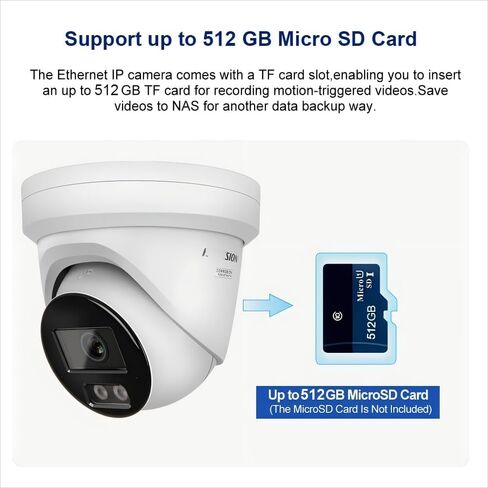

On-Board Storage：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Audio
Built-in Microphone-2U: Arrayed dual-microphone
Reset Key：Yes

Event
Basic Event：Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event：Scene change detection
Linkage：Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email

Deep Learning Function
Face Capture：Yes
Perimeter Protection：Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
Power：12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11 W
Material：Cover: Metal, main body: Metal
Dimension：Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension：170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight：Approx. 750 g (1.7 lb.)
With Package Weight：Approx. 1140 g (2.5 lb.)
Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function：Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
