This compound microscope is perfect for any educational application or classroom, elementary to high school, or for basic biological/laboratory use.

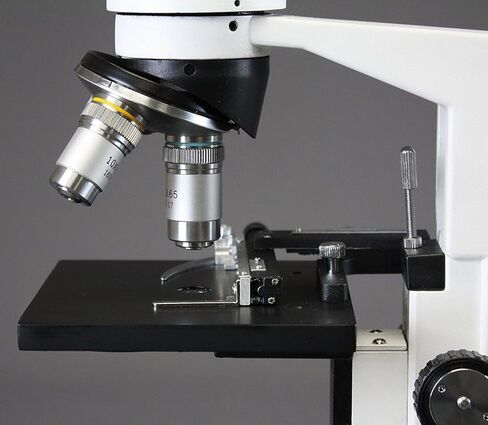

Cool-to-touch, long-lasting LED Illumination is equipped with intensity control. Ball-bearing objective turret is mounted, allowing for smooth alignment while positive click stops ensure precise and immediate magnification.
Specifications
Head: Dual view, 45° inclined, rotates 360°

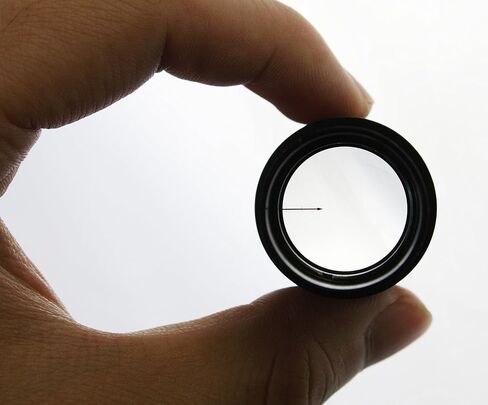

Eyepiece: Pair of 10x WF (with a calibrated pointer)/one 25x WF
Magnification: 40x, 100x, 250x, 400x, 1000x
Objective Lens: 4x, 10x, 40xR DIN achromatic
Stage: Large 110mm x 120mm (4 ⅜” x 4 ¾”) mechanical stage with a pair of stage clips
Focusing: Separate coarse and fine focus
Condenser: 0.65 NA lens
Diaphragm: 5 hole disc diaphragm
Light Source: LED illumination with intensity control
Power: 110V or Cordless Rechargeable Battery
Camera Specifications
3.0 megapixel (2048 x 1536 Max Resolution)
30 fps (640 x 480 Pixels)
JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface
Packing List:

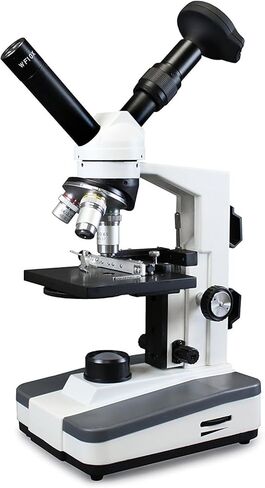

One 45° dual view microscope with plain stage and built-in LED illumination
One 3.0MP Digital Eyepiece Camera, USB 2.0, Imaging software CD
Pair of 10x wide-field eyepieces (one with a calibrated pointer)
One 25x wide-field eyepiece
4X DIN achromatic objective
10X DIN achromatic objective
40XR DIN achromatic objective
mechanical stage with a pair of stage clips
Power adaptor
3AA batteries
One dust cover
User Manual
