Product Description:

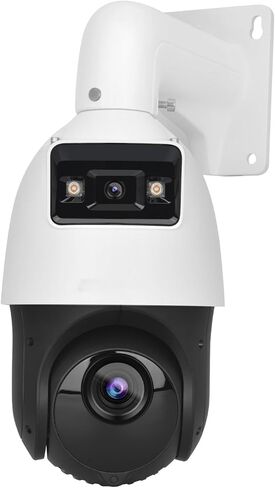

Upgrade your surveillance system with the Ⲏіkvіsіon DS-2SE4C425MWG-E/14 (F0) 4MP PTZ Security Camera, engineered for professional-grade monitoring. This dual-lens camera combines a fixed bullet channel (2.8mm wide-angle) and a PTZ channel (25x optical zoom) to capture both sweeping panoramas and precise details.

Key Features:
Stunning 4MP Clarity: Dual 2560×1440 resolution channels deliver crisp imaging for license plates, facial recognition, and critical details.
Low-Light Mastery: DarkFighter ensures visibility in near darkness (0.0005 Lux), while Color View maintains full-color video under 30m white light.
Smart PTZ Tracking: Auto-focus on targets up to 100m away with IR illumination or 30m with white light deterrents.
Adaptive Image Optimization: WDR (Wide Dynamic Range) balances extreme lighting, while 3D DNR and defog eliminate noise and haze.
AI-Driven Efficiency: Focus on human/vehicle activity with deep learning, minimizing irrelevant alerts.

Technical Highlights:
Dual Power Options: 12V DC or PoE+ for easy installation.
Weatherproof Design: Built for harsh outdoor environments.
Onboard Storage: Supports Micro SD cards (256GB) for local backup.

Ideal for commercial properties, construction sites, and large residential areas needing 24/7 reliability.

Technical Specification:
Camera
Image Sensor: [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: 1 s to 1/30,000 s
Day & Night: ICR
Zoom: [PTZ channel] 25 × optical, 16 × digital
Slow Shutter: yes

Lens
Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
FOV: [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Focus: semi-auto||manual||auto
Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed: [PTZ channel]: approx. 3.6 s

Illuminator
Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
Smart Supplement Light: Yes

PTZ
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan: yes
Presets: 300
Preset Freezing: yes
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans
Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioning: yes
PTZ Status Display: yes
Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memory: yes

Video
Main Stream
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression: H.265||H.264||MJPEG
Video Bit Rate: 32 kbps to 16384 kbps
H.264 Type: baseline profile||main profile||high profile
H.265 Type: main profile
Scalable Video Coding (SVC): yes
Region of Interest (ROI): 8 fixed regions for each stream

Audio
Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering: yes

Network
Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
Simultaneous Live View: 20
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: 32
Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter Network Storage: NAS (NFS, SMB/ CIFS)|| ANR
Client: iVMS-4200||Hik-Connect
Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters Switch: Yes
Image Settings: sharpness, saturation, brightness, contrast
Day/Night Switch: day, night, auto, scheduled-switch
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Defog: Digital defog
Image Stabilization: EIS
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focus: Yes
Regional Exposure: Yes

Interface
Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarm: 1 alarm input, 1 alarm output
Reset: yes

Event
Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Face Capture: [Bullet channel] no,[PTZ channel] yes

General
Power: 12VDC, PoE+
Dimension: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
Weight: Approx. 2.4 kg (13.2 lb.)
Material: ADC12
Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
General Function: mirror,password protection,watermark,IP address filter
Demist: Demist by heating the glass
Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Approval
Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
