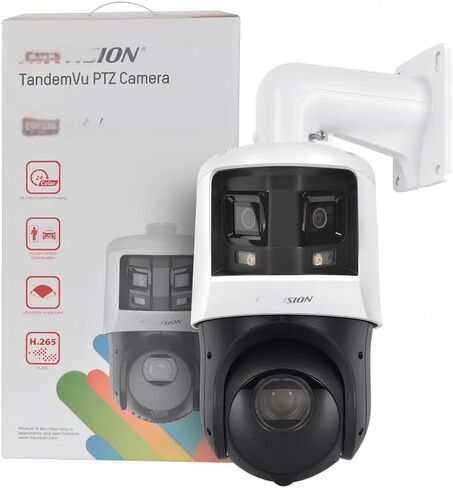

HlKVlSlON DS-2SE4C425MWG-E/26(F0), 6MP Panoramic PTZ Camera with 25X Zoom, TandemVu 6+4MP 25X Colorful & IR Panoramic & PTZ Camera, Original International English Version
Camera
Image Sensor: [Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Resolution: [Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
 Shutter Speed: 1 s to 1/30,000 s
Day & Night: ICR
Zoom: [PTZ channel] 25 × optical, 16 × digital
Slow Shutter: yes

Lens
Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
FOV: [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;
 [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele),  Vertical field of view: 33° to 1.4° (wide-tele),  Diagonal field of view: 61.5° to 2.8° (wide-tele)
 Focus: semi-auto||manual||auto
Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed: [PTZ channel]: approx. 3.6 s

Illuminator
Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
Smart Supplement Light: Yes

PTZ
Movement Range: (Pan)360°
Movement Range: (Tilt)-15° to 90° (auto flip)
Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan: yes
Presets: 300
Preset Freezing: yes
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans
Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioning: yes
PTZ Status Display: yes
Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memory: yes

Video
Main Stream
[Bullet channel]
 50 Hz：25 fps（3632 × 1632，3680 × 1656）
 60 Hz：30 fps（3632 × 1632，3680 × 1656）
 [PTZ channel]
 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
 Sub-Stream
[Bullet channel]
 50 Hz：25 fps（1200 × 536，960 × 432）
 60 Hz：30 fps（1200 × 536，960 × 432）
 [PTZ channel]
 50 Hz：25 fps（704 × 576，640 × 480，352 × 288）
 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
 Third Stream
[Bullet channel]  No
 [PTZ channel]
 50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）
 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
 Video Compression: H.265||H.264||MJPEG
Video Bit Rate: 32 kbps to 16384 kbps
H.264 Type: baseline profile||main profile||high profile
H.265 Type: main profile
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 8 fixed regions for each stream

Audio
Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Audio Sampling Rate: MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
Environment Noise Filtering: yes

Network
Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
Simultaneous Live View: 20
API: ISAPI,SDK,ISUP,ONVIF
User/Host: 32
Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network Storage: NAS (NFS, SMB/ CIFS)|| ANR
Clienti: VMS-4200||Hik-Connect
Web Browser: IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+

Image
Image Parameters Switch: Yes
Image Settings: sharpness, saturation, brightness, contrast
Day/Night Switch: day, night, auto, scheduled-switch
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Defog: Digital defog
Image Stabilization: EIS
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focus: Yes
Regional Exposure: Yes

Interface
Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarm: 1 alarm input, 1 alarm output
Reset: yes

Event
Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Linkage: Panorama Linkage

Deep Learning Function
Face Capture: Detects up to 5 faces simultaneously,  Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
 Regional People Counting: Yes

General
Power: 12VDC, PoE+
Dimension: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
Weight: Approx. 2.4 kg (13.2 lb.)
Material: ADC12
Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
General Function: mirror,watermark,password protection
Demist: Demist by heating the glass
Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
