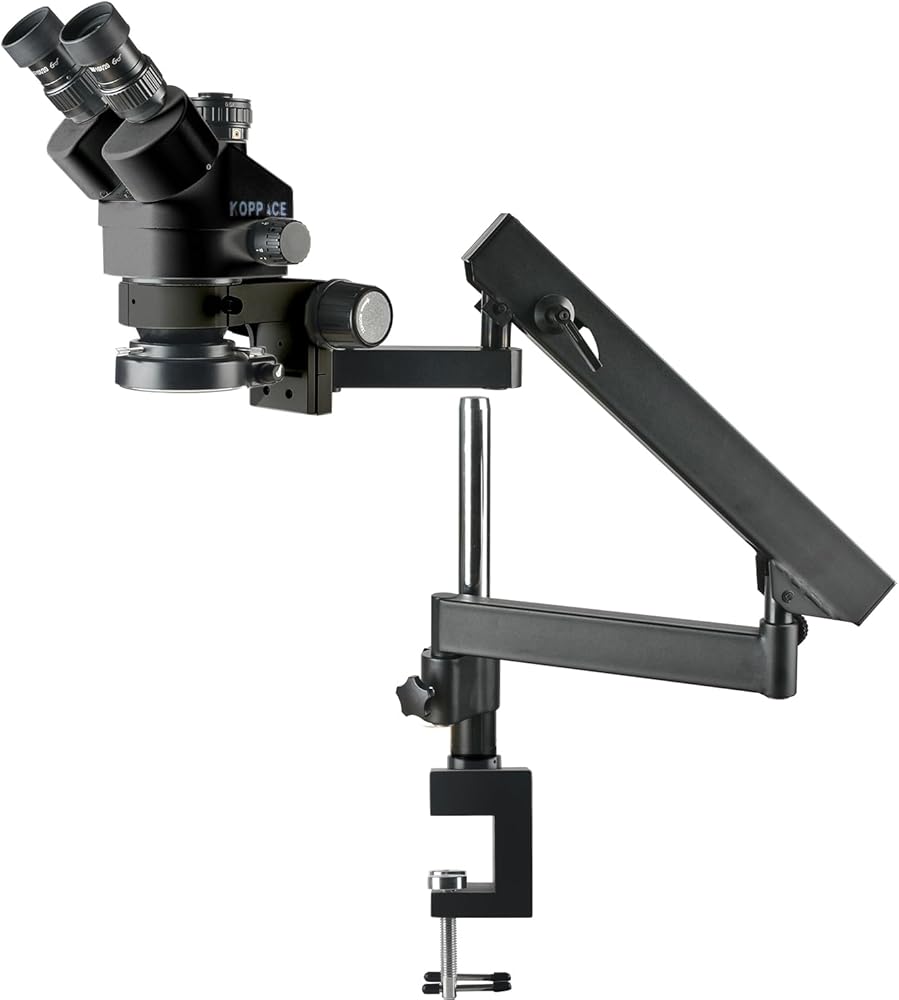

Model：KP-7045TH-FLB
Optical Enlargement：3.5X-90X
Field of View：4.44mm-57.14mm

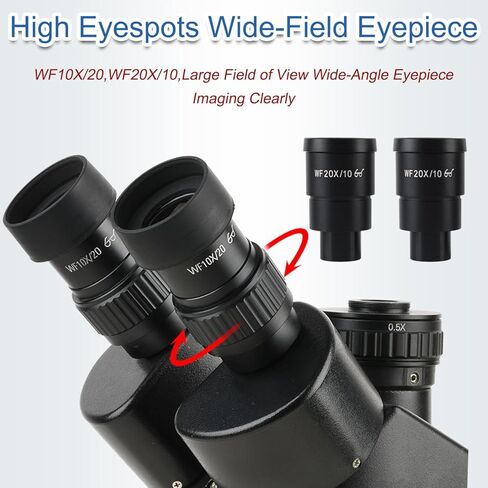

Eyepiece：High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10

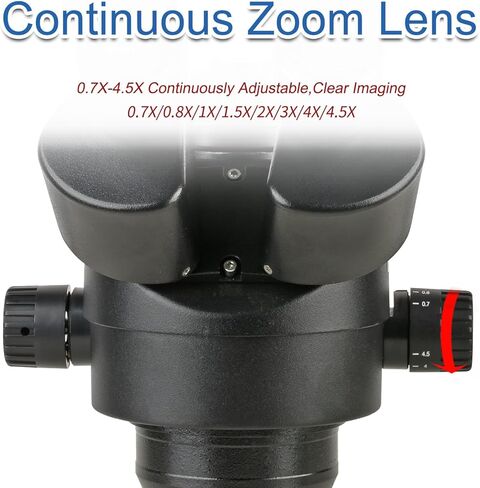

Objective Lens：0.7X-4.5X
Viewing Head：
Trinocular Stereo Microscope View Head Inclined at 45°.
The Pupil Distance Adjusting Range 54mm-76mm

Working Distance：100mm-165mm
Camera Interface：0.5X CTV
Focusing Bracket：Focusing Handwheel Tightness is Adjustable,lifting Range 50mm

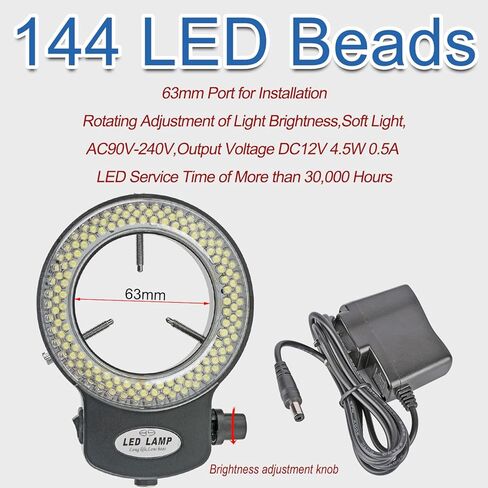

LED Light Source：LED Qty 144,Internal Diameter Size 63mm,Diameter Size 94mm,Input Voltage AC90—240V,Maximum Output Power 4.5W,Voltage 12V0.5A

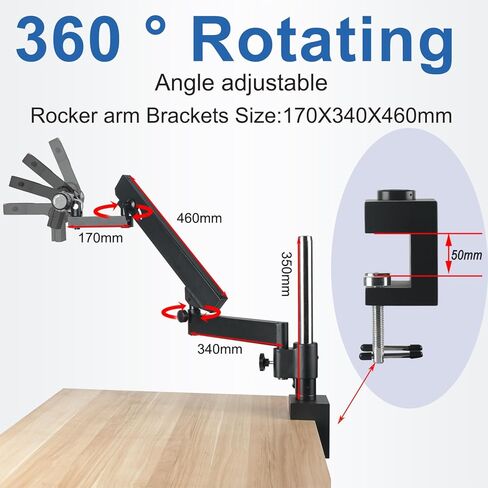

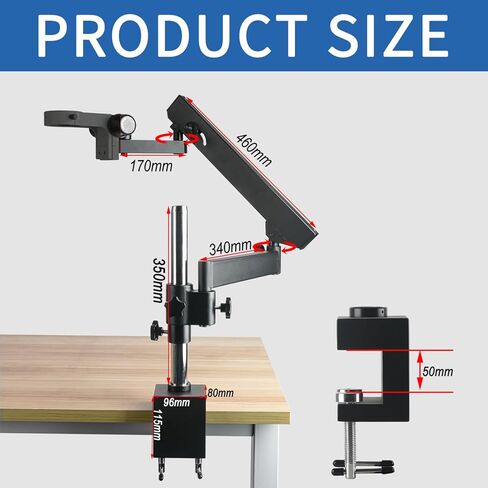

Rocker Bracket：Column Height 350mm,Column Diameter Φ32mm,Rocker arm Bracket Size:170X340X460mm, Horizontal Rotation Range 360° Rotation
Fixed Clamp Interface：50mm
Auxiliary Lens：0.5X/165mm,1X Oil Proof Mirror

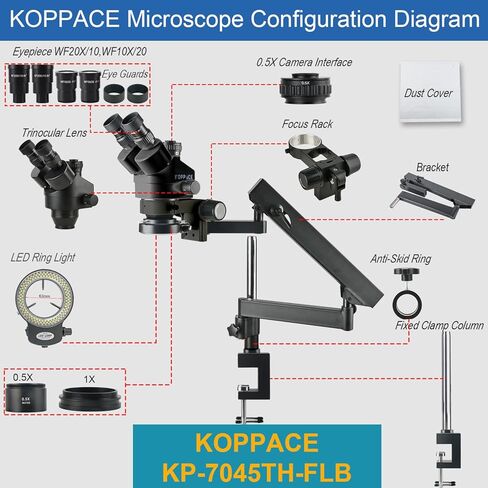

Packing List :
1、Eyepiece WF10X/20 One Pair
2、Eyepiece WF20X/10 One Pair
3、Focus Rack *1
4、Eye Guards One Pair
5、0.7X-4.5X Trinocular Zoom Lens *1
6、LED Ring Light *1
7、Rocker Bracket *1
8、Dust Cover *1
9、Anti-Skid Ring *1
10、0.5X Auxiliary Lens *1
11、1X Oil Proof Mirror *1
12、0.5X Camera Interface *1
13、Fixed Clamp Column *1

Note: Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.
