We will ship according to your choice. 1* Sliding table
1* Coupling with 8mm hole (Nema23 57mm Motor Bracket)
1* Coupling with 14mm hole (60mm Servo Motor Bracket)

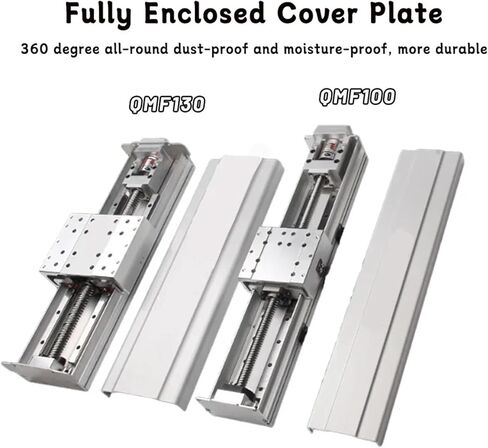

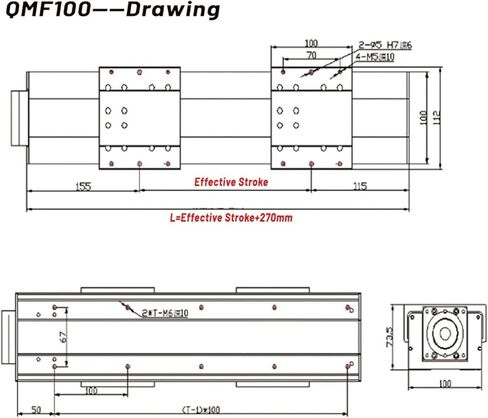

Model: QMF100
Module width:100mmEffective Stroke:100mm-1000mm Optional
Total length: Effective Stroke+270mm(QMF100)
Ballscrew type:SFS1605 ( Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm )/ SFS1610
Mobile table size:100mm*112mm
Ballscrew outer diameter:16m
Block:4*MGN15CA
Guide:2*MGN15
