Specification:
electronic starter type: 2-phase 4-wire system
Drive voltage: 5v / 270mA (the higher the voltage, the greater the force, the greater the heat)
Screw length: 55mm
Nut diameter: 6mm
Nut thickness: 3mm
electronic starter diameter: 10mm
Screw diameter: 3mm
Screw pitch: 1.2mm
Step angle: 18°
Phase resistance: 18 ohms
Stroke: about 50mm
Total Measurement: 67.8*17.7*12mm
Attention: This electronic starter is a stepper electronic starter and needs to be connected to the stepper electronic starter drive board to operate.
Black line: A+ Brown line: B+ Red line: A - White line: B-
Package Include:

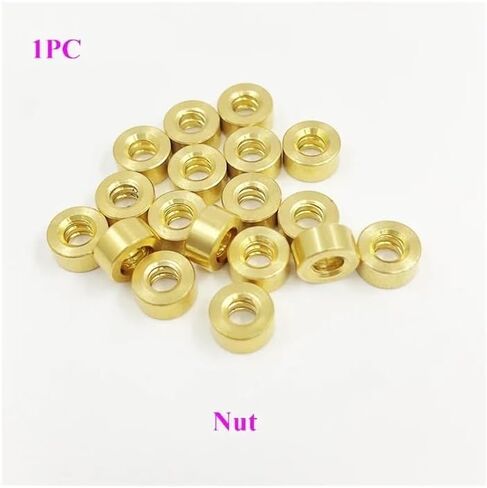

Screw Stepper electronic starter x 1pc or Nut x 1pc
