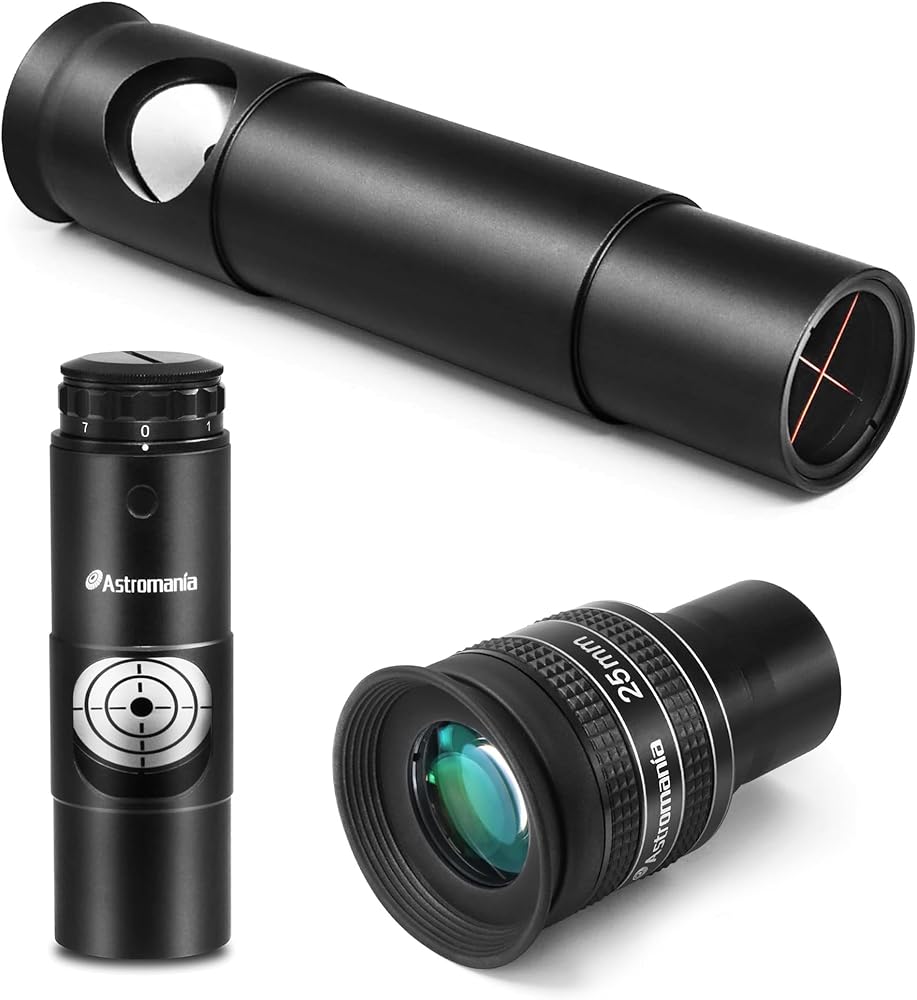

Astromania Telescope Eyepiece 25mm ، زاوية واسعة 58 درجة - حزمة مع - 1.25 بوصة طويلة Cheshire Eyepiece & محاذاة 1.25 "ملمع الليزر

KWD 34.500

ماركة
Astromania
1 +

مميزات خاصة

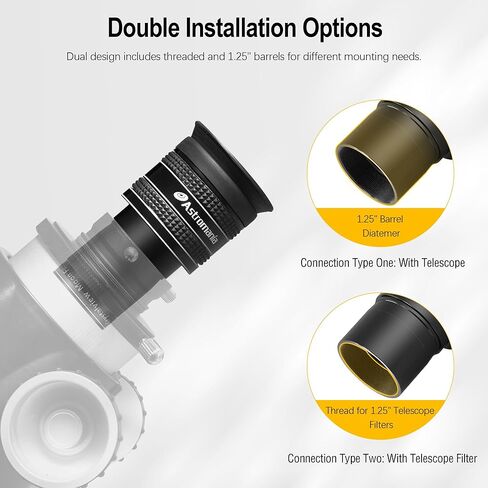

  • Fits in 1.25 inch focusers and easy to use; simply cap the telescope; remove the diagonal and place the eyepiece directly in the focuser
  • For aligning optics of Newtonian reflectors; dobsonian reflectors and Schmidt-Cassegrain Telescopes

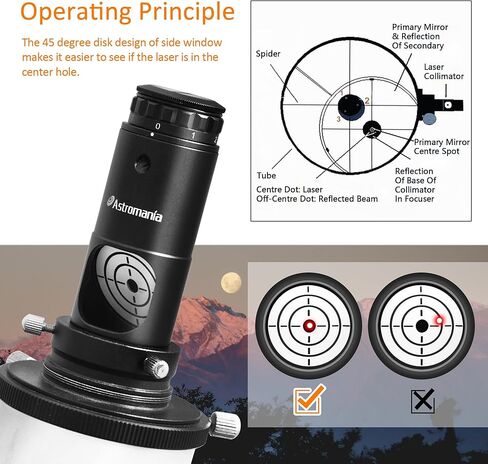

  • Well-Engineered: The laser comes fully adjusted however further adjust if required; it has three openings for adjustment; arranged at 120°; which are initially sealed; small screw cap at the rear of the laser must be first unscrewed to allow this;

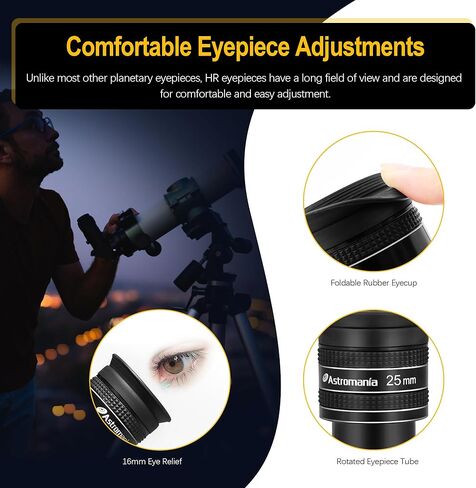

  • Wider 58 Degree Field of View: Comfortable eye relief averaging 16 mm across the series and focal lengths is between 2.5 mm to 25 mm; giving maximum detail and definition across the entire 58 degree field of view

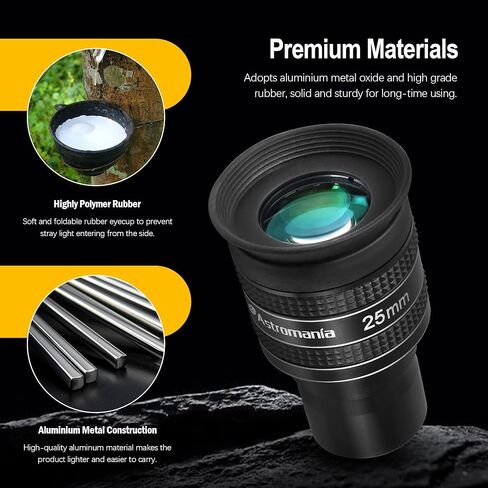

  • Multi-coated Lense Design: Each eyepiece has 5 lens elements in 3 groups; with retaining high transmittance and contrast ratio with least lateral cchromatic aberration and scattering phenomenon; having a wide view

وصف

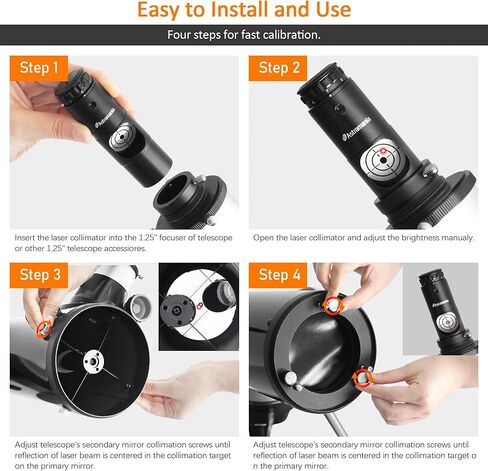

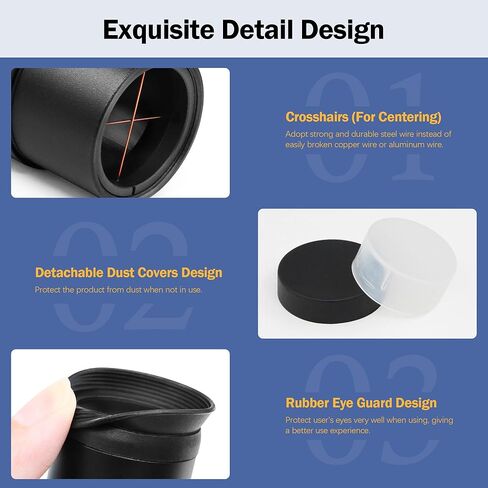

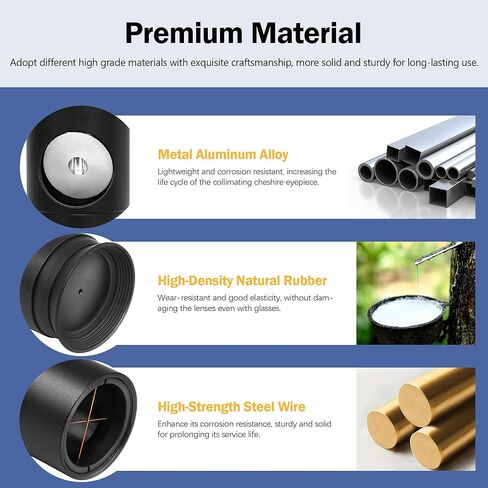

This is a great accessory for precisely collimating the optics of your Newtonian reflector telescope to achieve the best image the telescope can deliver.The approximately 6" long aluminum tube is a combination sight tube and Cheshire eyepiece. Peephole in the top and wire crosshairs at the bottom allow quick and precise centering of the optics. Fits in 1.25" focusers or in 2"-1.25" adapters. All metal construction. No instructions are included with the item but this kind of information can be found easily on the internet. Here is some tips for using it. To use the collimating eyepiece, insert it into the eyepiece tube of your telescope and illuminate the angled ring. Sight down the tube and note the crosshair target. Center the First Mirroe (diagonal in a Newt, secondary in a CAT) on the crosshair, and adjust its tilt until the bright ring the collimator is producing is centered in the reflection. Next, adjust each successive mirror in the scope so that the image of the ring is concentric with the optic. Professional opticians refer to this as “working BACK THROUGH the system,” ie.: adjusting each mirror in succession from the eyepiece outwards. In other words, before you align the primary on a CAT system, you have to have the secondary aligned, because it's the first thing you SEE while looking up the tube.
