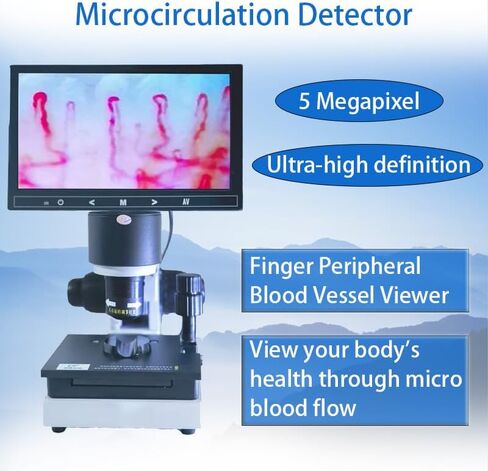

High Definition Microcirculation Detector, Non-Invasive Nail Fold Finger Peripheral Tip Vascular Folw Vascular Velocity Microscopic Observation Instrument

How to use:
1. Apply oil, evenly apply cedar oil to the nail crease.

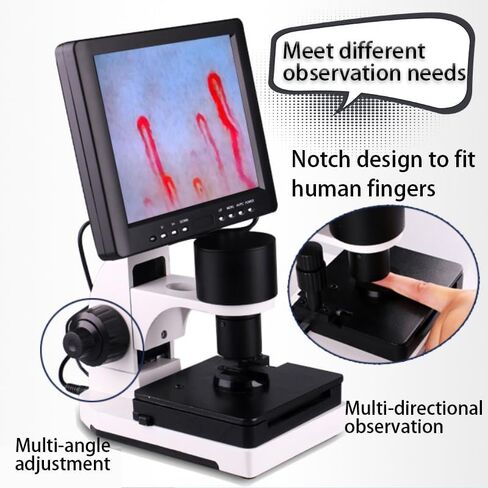

2. Put the finger, put the greased finger into the groove, so that the nail joints are directly under the light source.

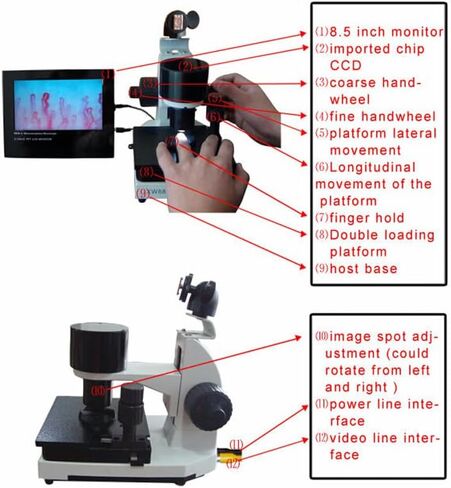

3. Adjust the focus, adjust the coarse and fine adjustment knobs until a clear picture of the skin is visible.
4. Adjust the position, adjust the front/back/left/right knobs until the blood vessels are clearly visible.
5. Fine-tuning observation, when the blood vessel image appears on the screen can be used appropriately to fine-tune the focus to achieve the best observation effect.

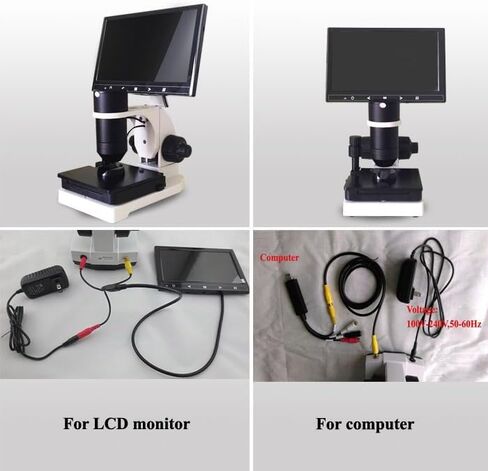

Screen installation method:
1. Adjust the knob to loosen the interface to facilitate the installation of the screen
2. Install the U-shaped slot at the bottom of the display base corresponding to the part of the instrument connector.
3. Adjust the tightness of the knob again to fix the display and adjust the height of the screen for easy observation.

Specifications:
Amplification:680x，1200x，1800x
Built-in CCD:80,000pixel
Objective:5X, effective range25mm

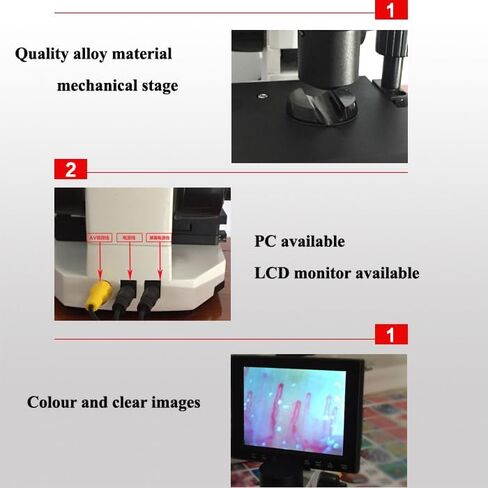

Finger holder:Single mechanical stage
Inner dimming:LED cold light
Power:12V, 1A DC power source

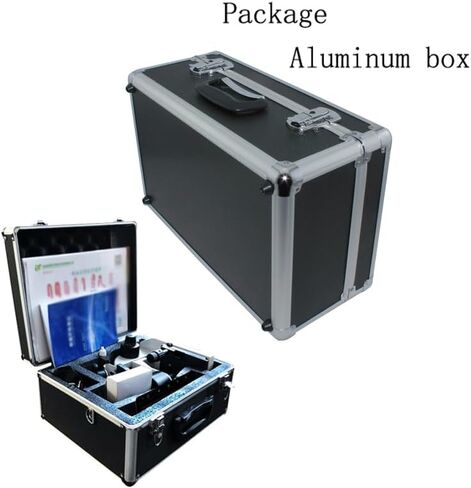

Package:Aluminum box

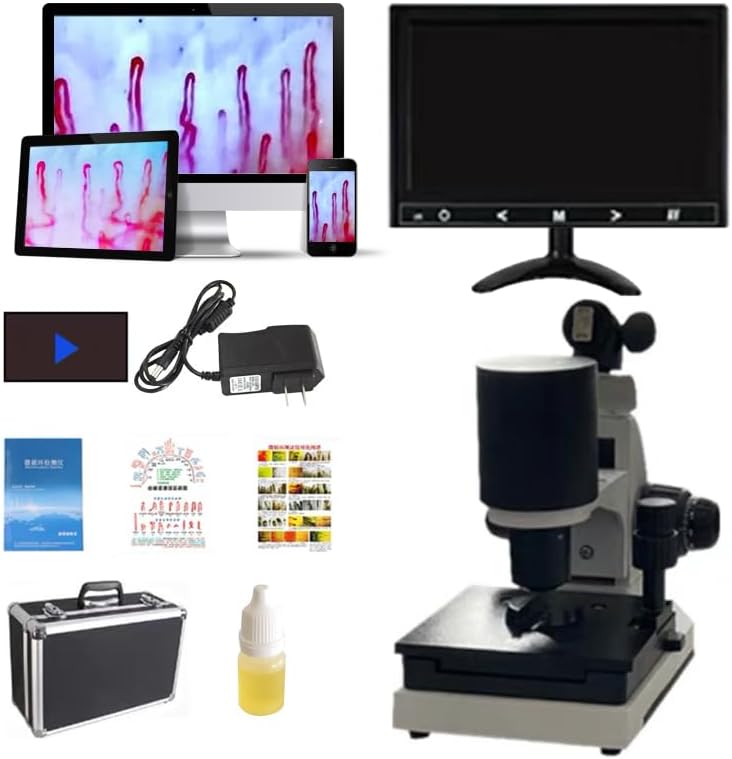

Package includes:
1*Microscope
1*Power Source
1*Cedar Oil
1*Manual

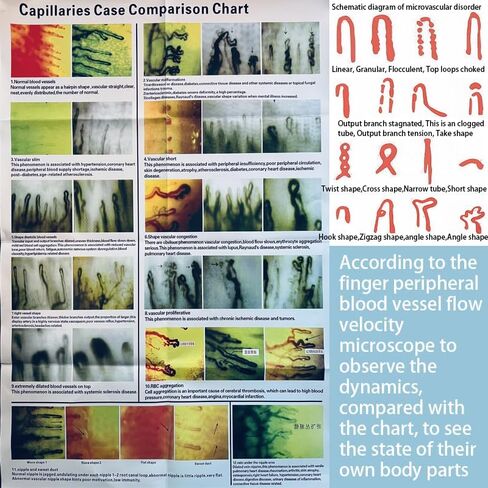

1*Chart
1*Suitcase
