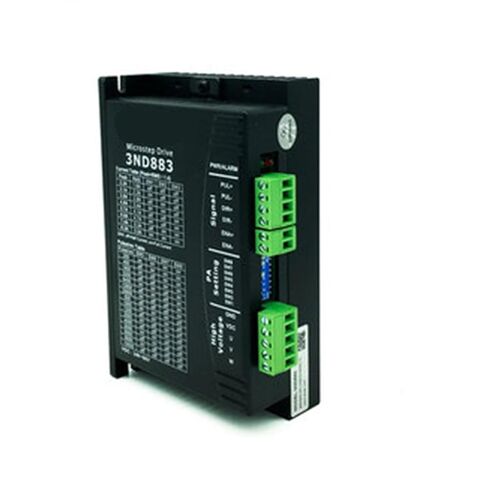

3ND883 3 Phase Analog Stepper Drive Max 50 VDC 8.3A
==========
Power Supply : DC
Model Number : 3ND883
Motor Type : Stepper Motor
Control Mode : Step & Direction
Max Input Frequency : 200Khz
Input Voltage Range : 80 VDC max
Output Current : 8.3A max
Logic Current Range : 7-16mA (10mA typical)
Logic Voltage Range : 4-5 VDC for pulse active high (default)
Communication Type : RS232
Step Width : 2,500 ns
Isolation Resistance : 500M Ohm
Protection : Over-current, over-voltage, and stall
