Kindly Note The Monitr is Compatible with Sony NP-F970 Series Batteries or Canon LP-E6 Battery(Battey is NOT Included. Please Purchase Separately).
Functions in Menu
Picture:Brightness; Contrast; Saturation; Tint; Sharpness; Color Temp; Red Gain; Green Gain; Blue Gain; Red offset; Green Offset; Blue Offset
Marker:Center Marker; Aspect Marker; Safety Marker; Marker Color; Grid; Marker Mat; Thickness
Function:Scan; Aepect; Underscan; Check Field; Zoom; Freeze; DSLR
Waveform:Peaking; Peaking Color; Peaking Level; False Color; Exposure; Exposure Level; Histogram
Audio:Volume; Level Meter

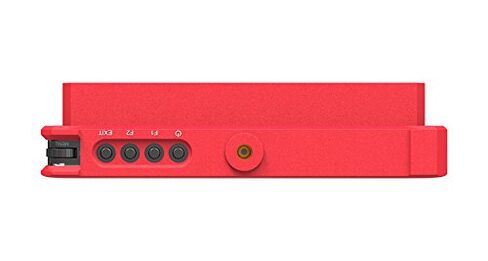

System:OSD Timer; Image Flip; Back Light; F1/F2 Configuration; Reset
Parameters and Connections

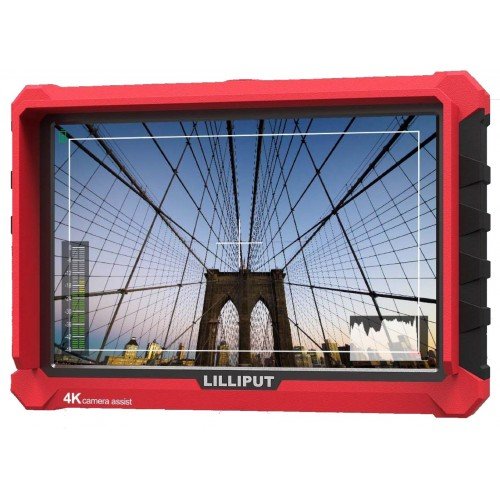

Screen dimension: 7 Inch
Resolution: 1920x1200
Brightness: 500cd/㎡
Contrast: 1000:1
Viewing angle: 170/170 degree (H/V)

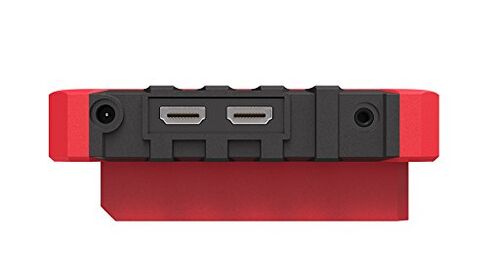

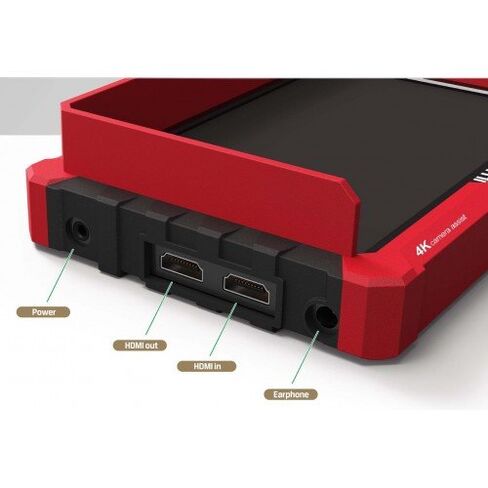

Video Input: 1xHDMI
Video output: 1xHDMI
Audio output: 1xSpeaker; 1xHeadphone Jack
Power system
Current: 1A
Input voltage: DC7-24V; 1xDC12V connector
Power consumption: ≤12W
Battery Indicator for viewing Battery Status

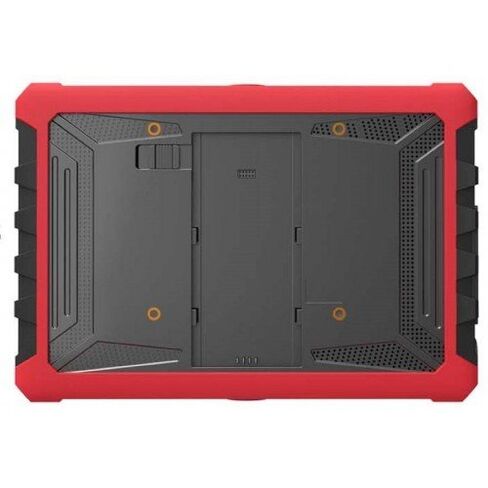

Battery Release Button to Attach or Remove battery without any concern at dropping it down during shoot
Dimension: 182.1x124x20.5 (mm)
Weight: 320g
PACKAGE CONTENTS:
1* Lilliput A7S Monitor
1* Foldable Sun Hood
1* Silicon Rubber Case
1* HDMI A/C Cable
1* Battery Plate for F970

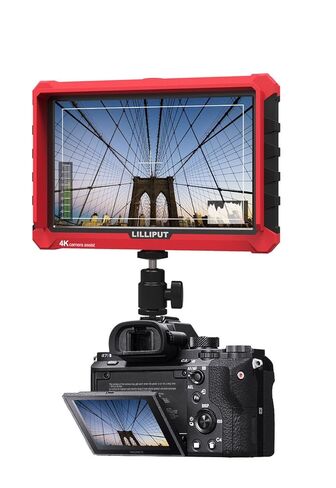

1* Cold Shoe Mount Bracket
1* Product Manual
1* LP-E6 battery plate
1* 12V AC ADAPTER
