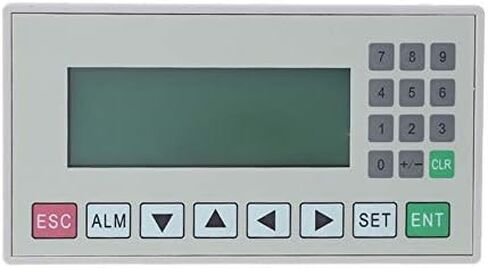

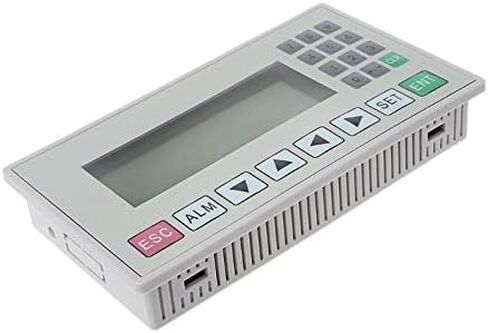

425D OP320-A Text Display Compatible with V6.5 MD204L Support 232 485 Communication
OOTDTY
Type:Yellow-green LCD
LifeMore than 20,000 hours, an ambient temperature of 25, 24-hour operation
Display area:192*64
Brightness:Potentiometer adjustable
Text Settings:Simplified English
Character size:Bitmap fonts, vector fonts
Button:20
Menu:64KB FlashROM
Data:1KB SRAM
Download port:RS232
Communication port:RS232 /RS485
Voltage range:DC12V-DC24V
Current consumption:
Allowable Voltage:10mS (actual loss of power is less than 1 second)
Anti-voltage surge:AC1000V,20mA less than 1 minute
Insulation resistance:10M,DC500V
Operating temperature:0-50 degrees
Storage Temperature:-20-60 Degrees
Operating humidity:10% RH to 90% RH (non-condensing)
Anti-jamming capability:Interfere with air pressure: 1500Vp-p Pulse cycle: 1uS In Duration: 1 min
Air:Non-corrosive gases
Cooling method:Natural air-cooled
Size:17.1x9.3x3cm/6.73x3.66x1.18inch
Note:
Please allow 1-3mm error due to manual measurement.pls make sure you do not mind before you bid.
Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!

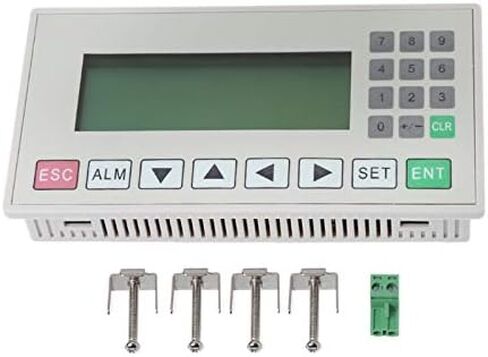

Package includes:
1x OP320-A Text Display
4x Screws
1x Terminal
Item specifics:
Origin: CN(Origin)
Certification: NONE
Electricity generator type: A Text Display
Type: Plant
Output voltage (v): DC12V-DC24V
Model number: 425D1AA700752
