NEMA34 OPEN LOOP STEPPER MOTOR
Model
Buy Now

Motor Length
Current
Motor Shaft
Dual Shaft
Brake
86HS65
LINK
2.8Nm
(28kgf.cm)
65mm
4.0A
14mm
(with 5mm key)
Optional
Optional
86HS78
LINK
4N
(40kgf.cm)
78mm
5.5A
86HS82
LINK
4.5Nm
(45kgf.cm)
82mm
4.5A
86HS100
LINK
6.5Nm
(65kgf.cm)
100mm
5A
86HS118
LINK
8.5Nm
(85kgf.cm)
118mm
5.6A
86HS156
LINK
12Nm
(120kgf.cm)
156mm
6.2A

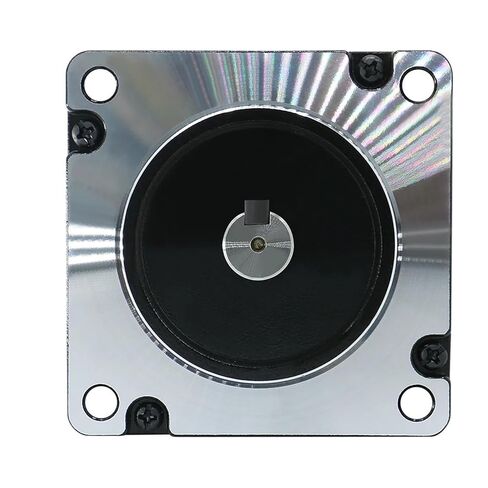

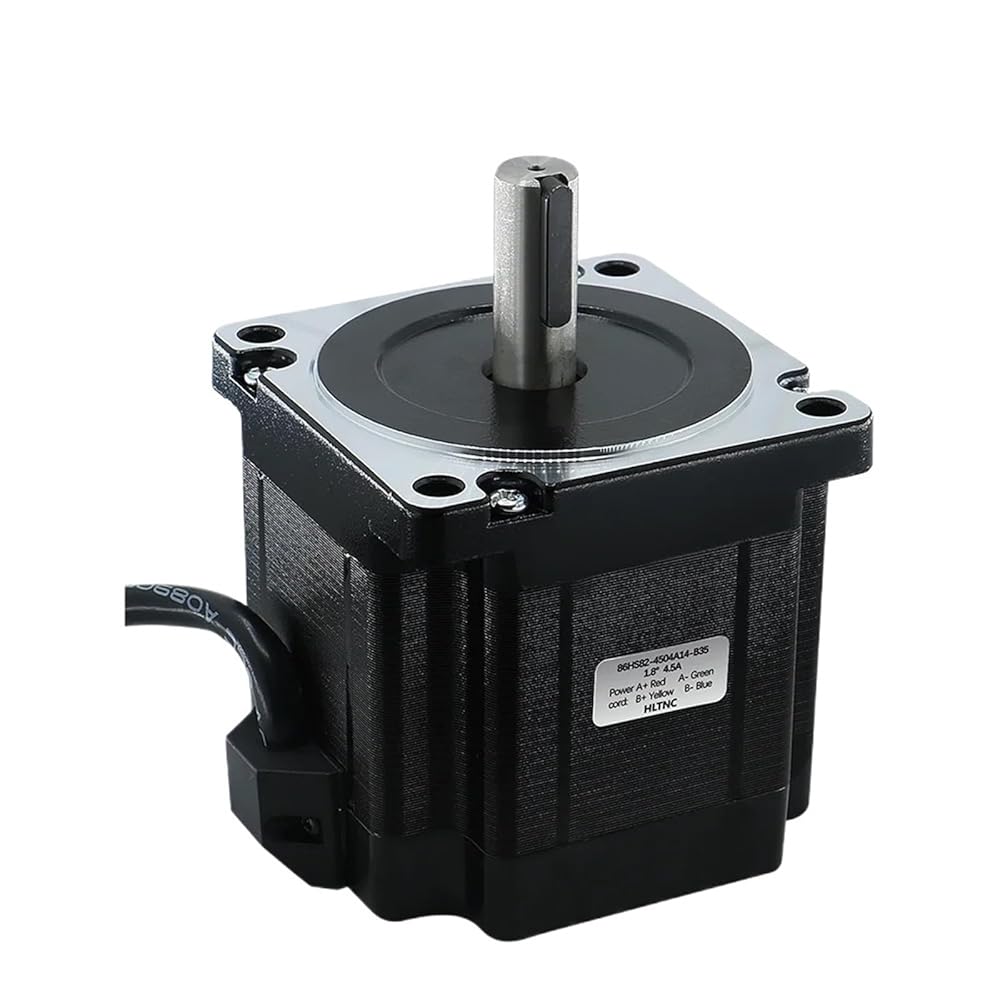

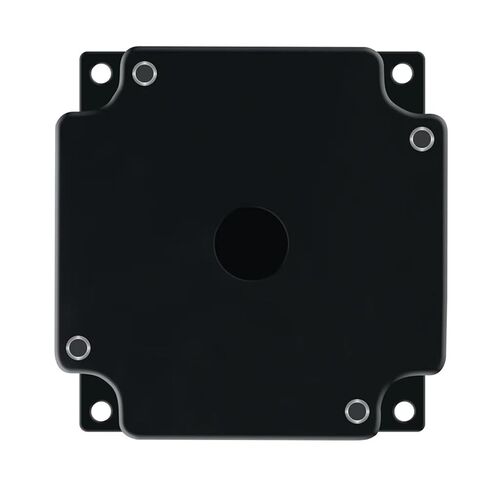

1x 86HS82 4.5Nm Nema34 Stepper Motor
86HS82-4504A14-B35
HYBRID STEPPER MOTOR

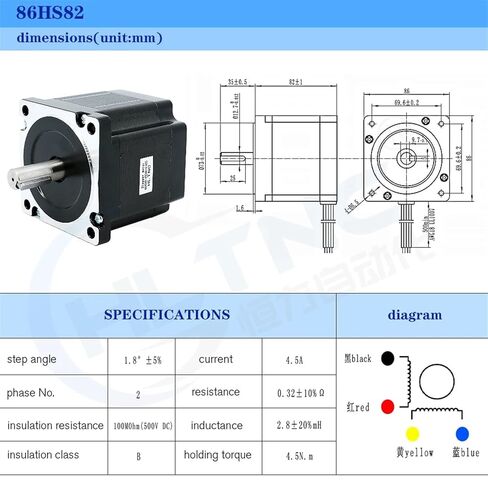

Specifications
Diagram
Step Angle
1.8 ° ± 5%
Current
4.5A
Phase No.
2
Resistance
0.32±10%
Insulation resistance
100MOhm (500V DC)
Inductance
2.8± 20%mH
Insulation Class
B
Holding
4.5N.m
DM860 Driver
DM860H Driver
click the model to see more details
