Package including
1 pcs NMRV040 Worm Gearbox Speed Reducer
Notice

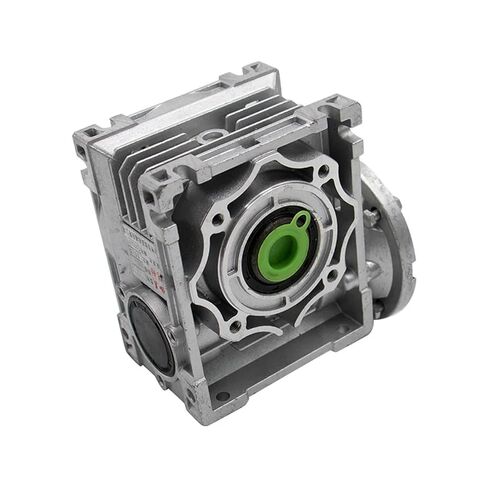

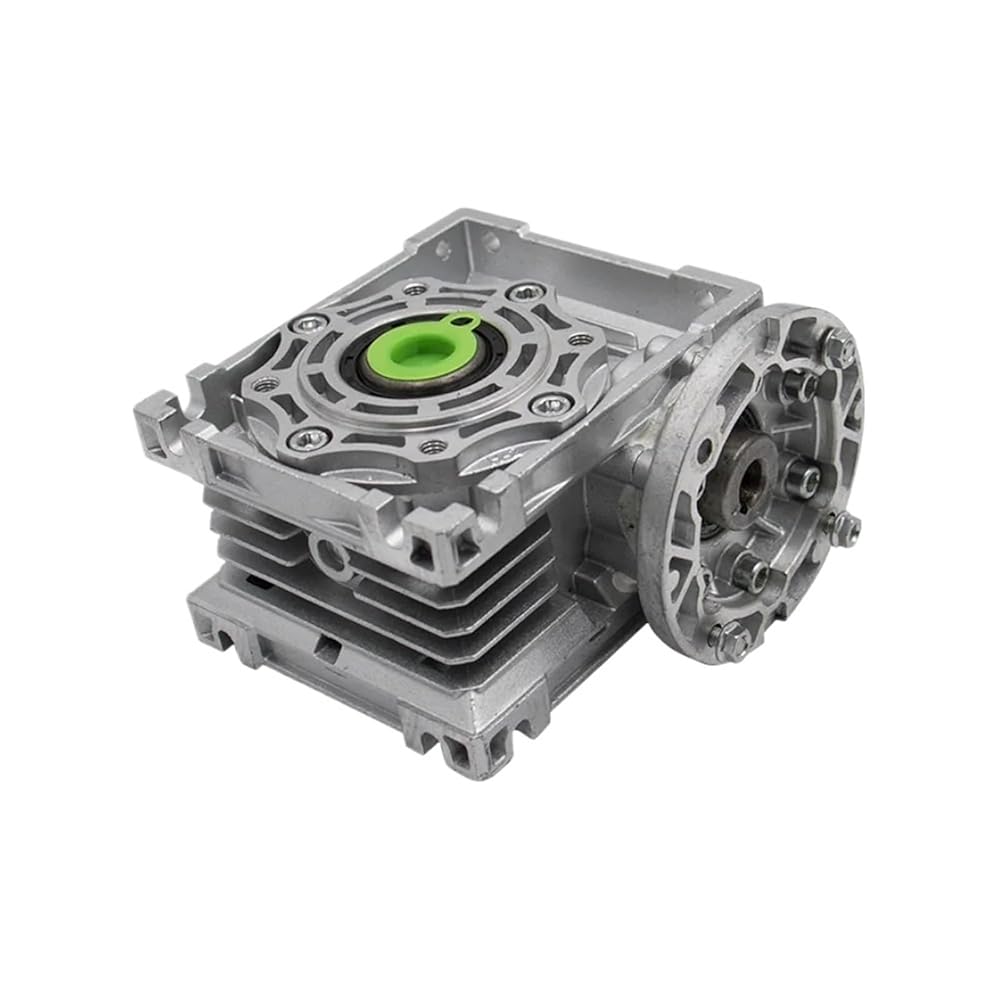

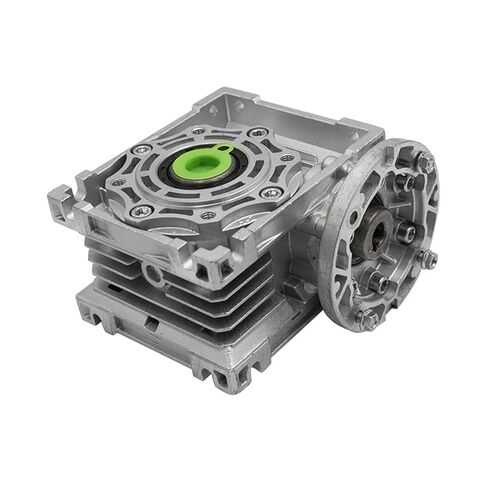

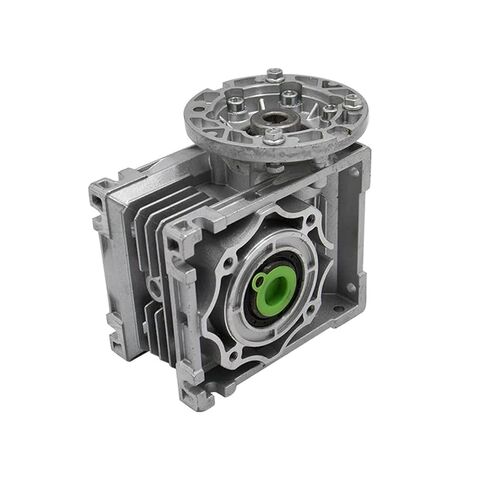

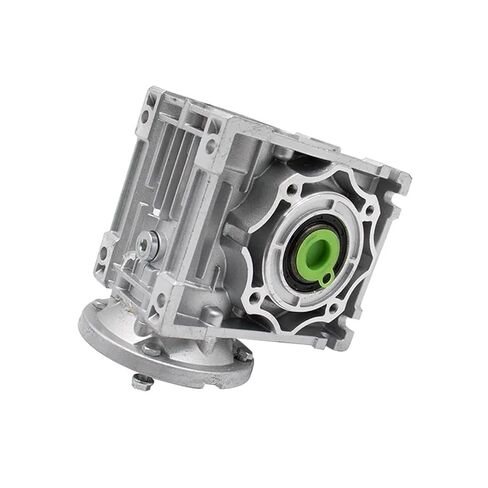

90 degree Gearbox NMRV040 Worm Gear Speed Reducer 9mm or 11mm or 14mm out hole diameter 18mm
Note:
With a ratio of 5:1,7.5: 1, 10: 1, 15: 1, 20: 1, 25: 1, 30:1,40: 1, 50: 1, 60: 1, 80: 1,100:1 for customers, please leave a message about the ratio transmission, input shaft (9mm or 11mm or 14 mm?) and Flanged Type when placing an order. Please leave a message about the gear ratio you need when you order.
Color: silver and blue (Sometimes only one color is available)
This is a worm gearbox connection without an output shaft, if necessary, please contact us or order this link.
We also have NMRV 25/30/50/63/75/90 Models, if need, contact us please.
Color: silver and blue (sometimes just one color)
Material for worm reducer:
housing: aluminum alloy die cast
Worm gear: Nodular cast iron and bronze
Feature of worm reducer gearbox:
1) aluminum alloy die cast gearbox
2) High accuracy worm gear and worm shaft
3) Less noise and lower temperature increase
4) Easy mounting anc connection, high efficiency
The mounting dimension of worm reducer NMRV040:
==========
: 90NM
Usage : BOAT,CAR,Electric Bicycle,FAN,Home Appliance
Model Number : NMRV040
Continuous Current(A) : acording to the motor
Construction : Series Wound
Type : Gear Motor
Protect Feature : Explosion-proof
Commutation : Brush
Output Power : 370w
Origin : Mainland
Certification : CCC
output hole diameter : 18mm
Input hole diameter : 9mm or 11mm or 14mm
Input Speed : about 1500rpm
Speed ratio : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1 60:1,80:1,100:1
IEC Flange : 71B5; 71B14; 63B5; 63B14; 56B5 for customers.
Output Speed : Changes with the speed ratio
