How to Use

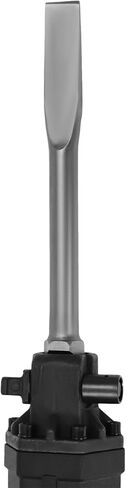

Installation Method of Pickaxe
1. Pull out the rotating clip with the dot facing upwards.
2. Insert the pickaxe.
3. Pull out the rotating clip with the dot facing downwards.
Quick Start Method
1. Turn up and close the air door.
2. Press the oil bubble to fill it with oil.
3. Pull the start-pull rope.
4. Lower and open the air door.
5. Pull the pull rope again.
6. The startup is completed.
Specification
Process: Integrated Die-Casting
Color: Red + Black
Assembly Required: Yes
Power Source: Gasoline Powered
Start Method: Hand Pull Start
Stroke: Two-Stroke
Spark Plug Type: Two-Stroke Spark Plug
Applicable Oil Type: Two-Stroke Engine Oil
Displacement: 52CC
Fuel Consumption: ≤0.6L/h/0.16Gal/h
Impact Frequency: 1500 Times/min
Power: 1900W
Speed: 6500RPM
Fuel Tank Capacity: 1.2L/0.32Gal
Mixing Ratio: 1:25
Impact Energy: 55J
Duration of Use: 1h
Pickaxe Length: 31cm/12.2in
Product Size: 40 * 27 * 95cm/15.74 * 10.62 * 37.4in
Package Size: 76 * 41 * 36cm/29.92 * 16.14 * 14.17in
Gross Weight: 22.45kg/49.49lbs

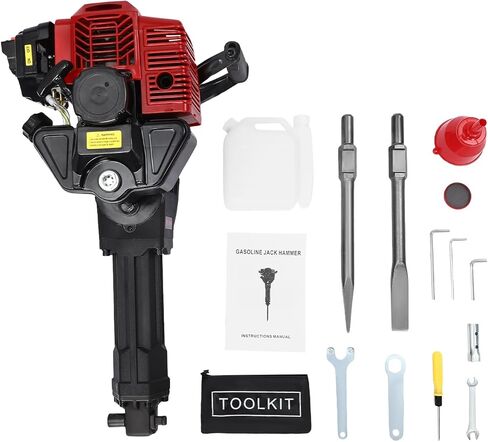

Package Included
1 * Jack Hammer 1 * Pointed Pickaxe 1 * Flat Pickaxe 1 Set * Tools 1 * Funnel 1 * English Manual
Notes
1.The mixing ratio of gasoline and engine oil (not included) is generally 25:1, but due to differences in engine oil quality in different regions, we recommend using a ratio of 20:1. The recommended engine oil is two-stroke special engine oil (cheap engine oil is refused).
