Overviews:

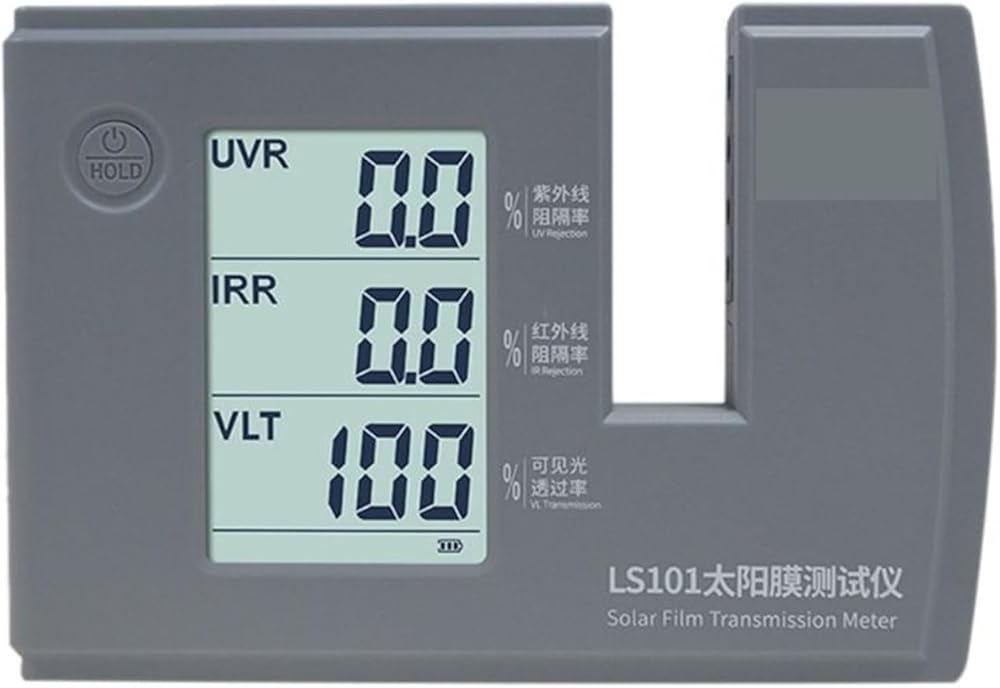

101 is able to measure and display UV, rejection value and visible light transmission value simultaneously. This meter is self-contained light sources and self -calibration. No manual adjustment is needed. The users only need to the power supply, turn on the and put the solar film in the slot. The resulting performance data will appear on the display

Features
6.Ultra low power consumption, 4 AA alkaline batteries, lasting more than 180 hours.
7.Applicable to the transmittance (rejection rate) test of automotive film, explosion-proof film, architectural film, thermal film, film s, etc.
8.Simple operation, putting the testing sample in the test slot, UV Rejection, Rejection, Visible light transmission value of the sample will be displayed simultaneously.
9.Applicable to solar film performance exhibition, production, quality inspection, inspection and other occasions.
Parameter
1.Size: 175mm*120mm*30mm L H
2.Test slot: 23mm * 76 mm H
3.Weigh: 360g
4.Resolution: 0.1%
5.Accuracy: ±2% (Colorless and transparent material)
6.UV wavelength: 365nm
7.VL wavelength: 380-760nm, conforming to the CIE photo function standard
8.IR wavelength: 950nm
9.Power supply: 4*AA alkaline Not included) or 5V power supply (USB Type-C
Packa included:(with retail box)
1 * 101 Solar Film Transmission Meter
1 * User Manual

solar film transmission meter, Spectrometers, Optical Instruments, Measurement & Analysis Instruments
