Eight holes allow attachment to almost any surface

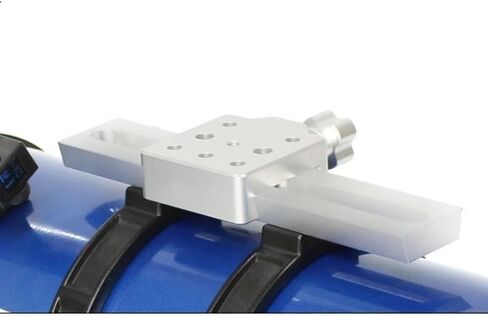

Simply screw the dovetail clamp onto the tripod head to mount the telescope to your tripod.

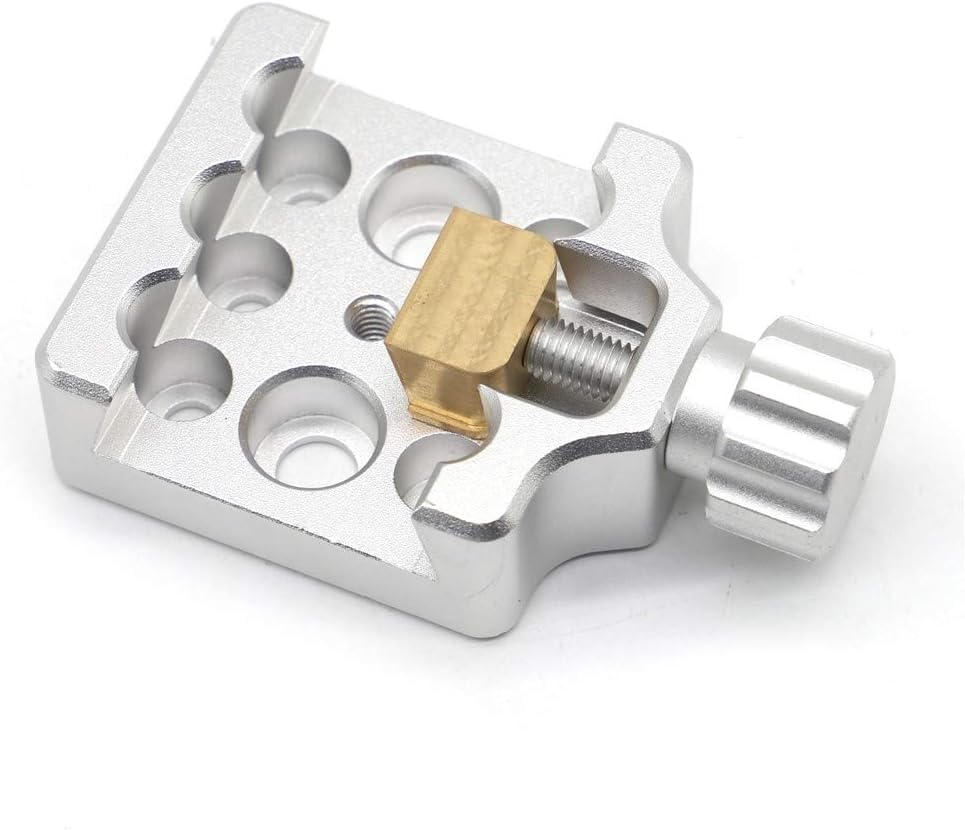

A large surface with a width of 24 mm presses the rod against the other side of the clamp.
Zone clamping using brass screws and locking screws - protects attachments and provides a very stable connection.

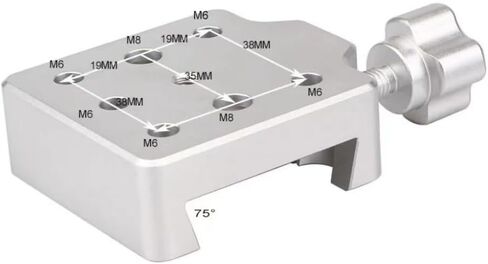

The center distance between the two holes of M8 screw is 35mm
For the mounting clip, there are 7 holes available, 5 holes for M6 and 1/4" screws and 2 holes for M8 screws.
The clamp itself can be adapted to a mount, counterweight shaft, or other dovetail rod to create a dual connection.
وصف
Model: dovetail groove
Type: single tube
Metal material: aluminum alloy
Color: silver
Loading weight: 10kg
Dovetail upward space: 39.5 mm
Dovetail defect: 45mm
Dovetail depth: 12mm
Net weight Net content: 193g/6.83oz
M8 pitch is 35mm
M6 spacing: 19mm, 38mm

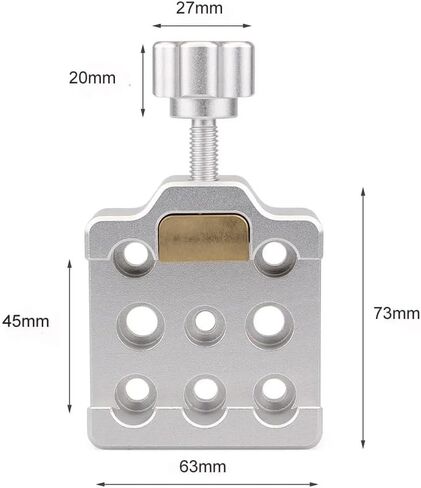

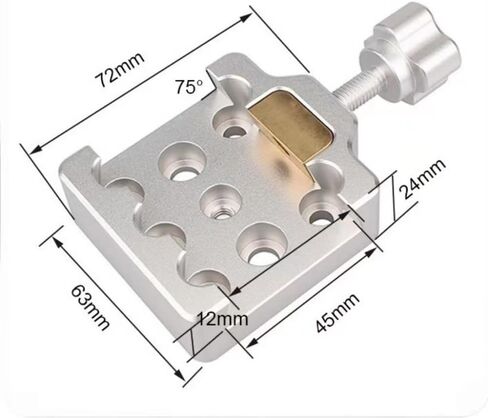

Dimensions: 72x63x24mm (excluding screws)
Using quick connectors you can securely connect your telescope or camera.
