Camera
Image Sensor:1/2.8" Progressive Scan CMOS
Max. Resolution:3840 × 2160
Min. Illumination:Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time:1/3 s to 1/100,000 s
Day & Night:IR cut filter
Angle Adjustment:Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Focal Length & FOV:2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°
Lens Mount:M12
Iris Type:Fixed
ApertureF1.6
Depth Of Field:2.8 mm: 1.7 m to ∞
DORI:2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
Illuminator
Supplement Light Type:IR,White Light
Supplement Light Range:Up to 40 m
Smart Supplement Light:Yes
IR Wavelength:850 nm
Video
Main Stream:50 Hz:20 fps (3840 × 2160)25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:20 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression:Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Video Bit Rate:32 Kbps to 16 Mbps
H.264 Type:Baseline Profile,Main Profile,High Profile
H.265 Type:Main Profile
Scalable Video Coding (SVC):H.264 and H.265 encoding
Bit Rate Control:CBR,VBR
Region Of Interest (ROI):1 fixed region for main stream and sub-stream
Target Cropping:Yes
Audio
Audio Compression:-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate:-2U: 8 kHz/16 kHz/3
2 kHz/48 kHz
Environment Noise Filtering:-2U: Yes Network
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View:Up to 6 channels
API:Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP Security:Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host:Up to 32 users;3 user levels: administrator, operator, and user
Client:iVMS-4200,Hik-Connect,Hik-Central
Network Storage:NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser:Plug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch:Yes
Day/Night Switch:Day,Night,Auto,Schedule
Image Settings:Rotate mode
Wide Dynamic Range (WDR):120 dB
SNR:≥ 52 dB
Image Enhancement:BLC,HLC,3D DNR
Privacy Mask:8 programmable polygon privacy masks
Interface
Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port

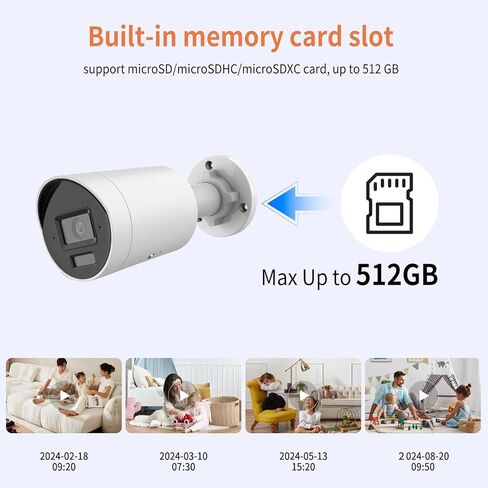

On-Board Storage:Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key:Yes
Audio:-2U: Dual Array Microphone
Event
Basic Event:Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event:Unattended baggage detection, object removal detection
Linkage:Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Perimeter Protection:Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)
General
Power:12 VDC ± 25%, 0.5 A, max. 6 W,reverse polarity protection,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material:Metal
Dimension:2.93" × 6.94"
Package Dimension:9.21" × 4.72" × 4.61"
Weight:1.1 lb.
With Package Weight:1.7 lb.
Storage Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:33 languages
General Function:Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
