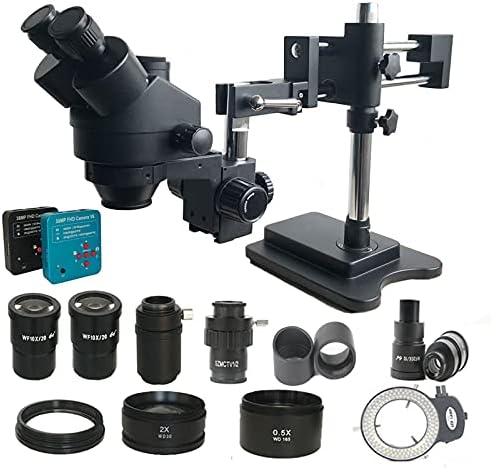

3.5X-180X Double Boom Simul Focal trinocular Stereo Microscope Industrial Soldering 38MP HDMI USB microscopio Video Camera Tools (Color : Black Magnification : 3.5X 180X) (White 3.5X 90X)

KWD 791

Brand
CGKs6anmU
Category
Microscopes
ColorWhite
Size3.5X 90X
1 +

Special Features

  • 7X-45X Extremely Large Zoom Magnification Power
  • Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging
  • Erect Stereo Sharp Images Over a SUPER Widefield of View
  • If there is a quality problem, please contact us by email, and we will definitely give you a satisfactory answer.

Description

If there is a quality problem, please contact us by email, and we will definitely give you a satisfactory answer.
Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
Crystal Clear Original True Color Images
45 Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
30mm SUPER Widefield Eyepieces (see the difference in the above picture)
Both Ocular-Tubes with Adjustable Diopter
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
4" (100mm) Extremely Large Working Distance
Versatile Boom Stand Covering Large Working Area
Double-Arm Design for 3-Degree Freedom
Able to Place Microscope Head Toward to Any Direction
Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
Rugged Solid Cast Steel Base
30mm SUPER Widefield Eyepieces Included
165mm and 30mm working distance auxiliary objective

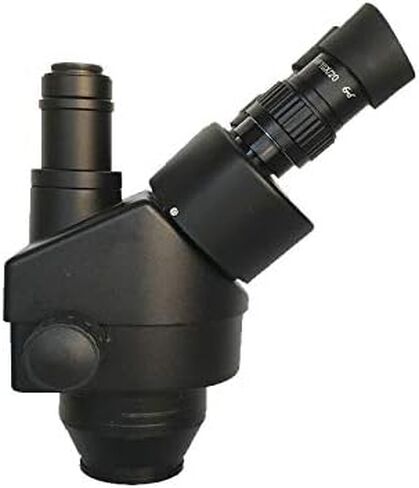

Head: 45 inclined 360 swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20mm
Objective: 0.35-9.0X

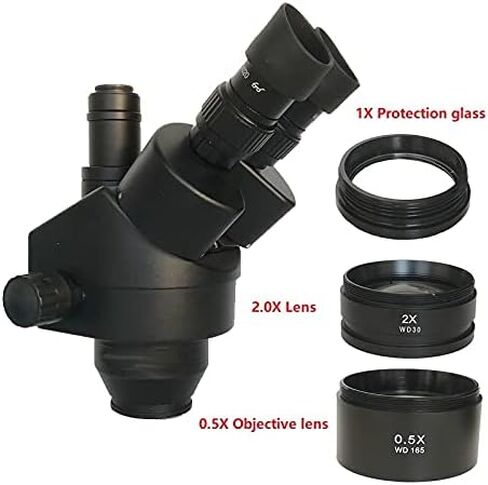

Auxiliary objective :SZM0.5X & SZM2.0X
Zoom Range: 6.4:1
Diopter Adjustment: 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Field of View: 2-1/2" (65mm) in diameter
Working Distance: 4" (100mm)
Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

144 bright white LED bulbs
100,000 s of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-6m

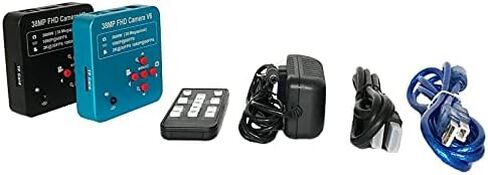

Sensor 1:38 MegaPixel, 38 million pixels CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:21MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI res
