Microscope Eyepiece, High Speed USB Camera High Definition Microscope Electronic Eyepiece 5MP Cmos Industrial Camera For Machine Vision

KWD 26
Brand
CookiBlend
Category
Telescopes
Weight
188 g
– 1 +

Special Features

  • 【High-speed USB Interface】The camera features a high-speed USB2.0 interface, allowing for data transfer speeds of up to 480Mb/s.
  • 【Large Area Array CMOS Image Sensor】Equipped with a large area array CMOS progressive scan image sensor, the camera supports both static and dynamic image capture. The exposure time is adjustable, ensuring optimal image quality.
  • 【Uncompressed Raw Image Data】With 8-bit uncompressed raw image data and software implementation for Bayer color conversion, the camera provides reliable and stable images. It is easy to install and supports and play functionality.
  • 【Wide Application】The camera is suitable for a variety of applications including pattern recognition, industrial testing, traffic management, machine vision, and microscope imaging. It is compatible with various microscope models and can be used in different scenarios.
  • 【C-Mount Eyepiece Interface】Designed specifically for microscopes, the camera has a C-mount eyepiece interface (adapter) that can be easily inserted into 2mm, 30mm, and 30.5mm openings.

Description

Specifications:
Color：Black
Material: metal
Image sensor: 1 / 2.5" color CMOS image sensor
Pixels size: 2.2 μm × 2.2 μm
The spectral response: 550nm
Scan mode: progressive scan
Pure hardware 5 megapixel image sensor, no compression, no interpolation
Resolution:640X480@30fps,1280x1024@30fps,1600x1200@30fps,1920x1080@30fps 2048x1536@ 30fps,2592x1944@ 30fps
White Balance: Auto / Manual
Auto Exposure Control: Auto / Manual
Image output: USB2.0, 480Mb / s
Operating temperature: 0 ° C ~ 50 °
Working current: ≈200mA

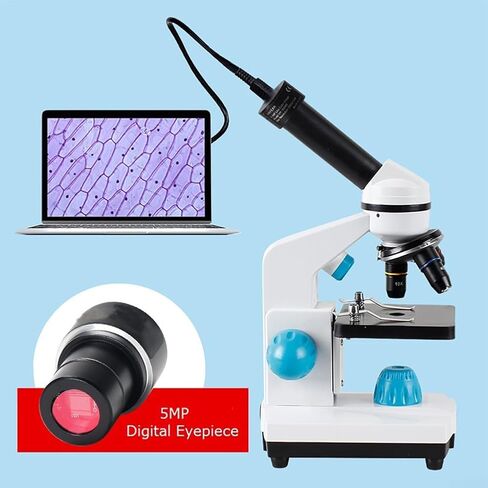

Application: Microscope imaging, General image acquisition, macro imaging, etc.

Package Included:

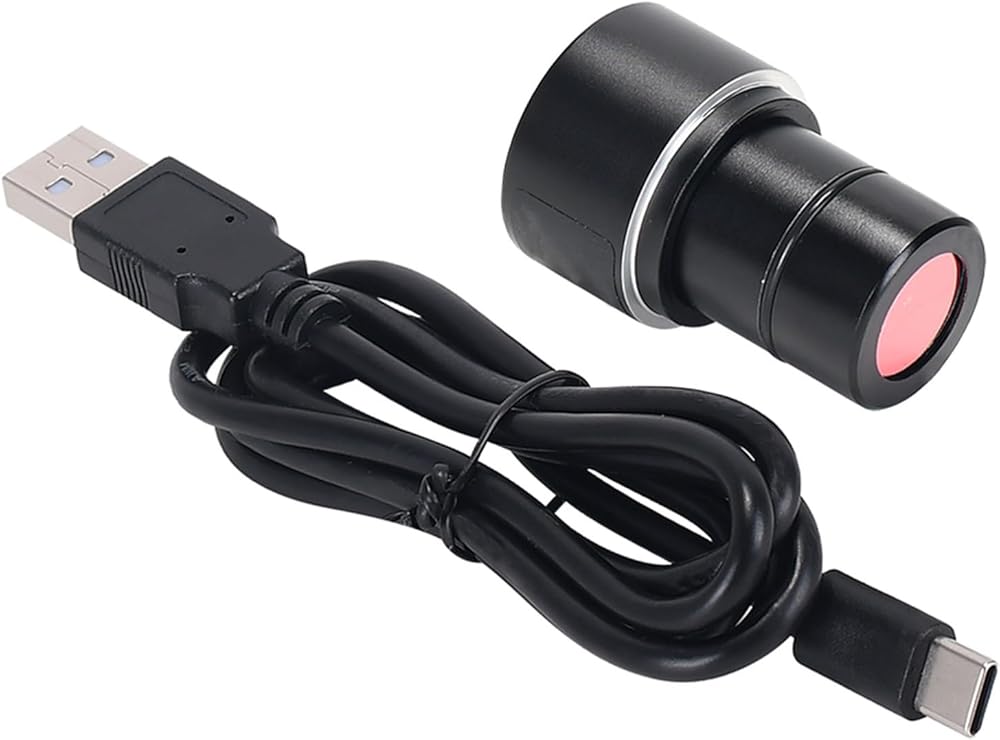

1PCS Microscope camera
1PCS USB-Kable

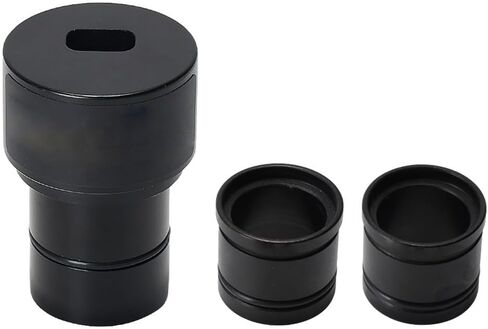

1PCS 30mm adapter
1PCS 30.5mm adapter
1PCS CD
