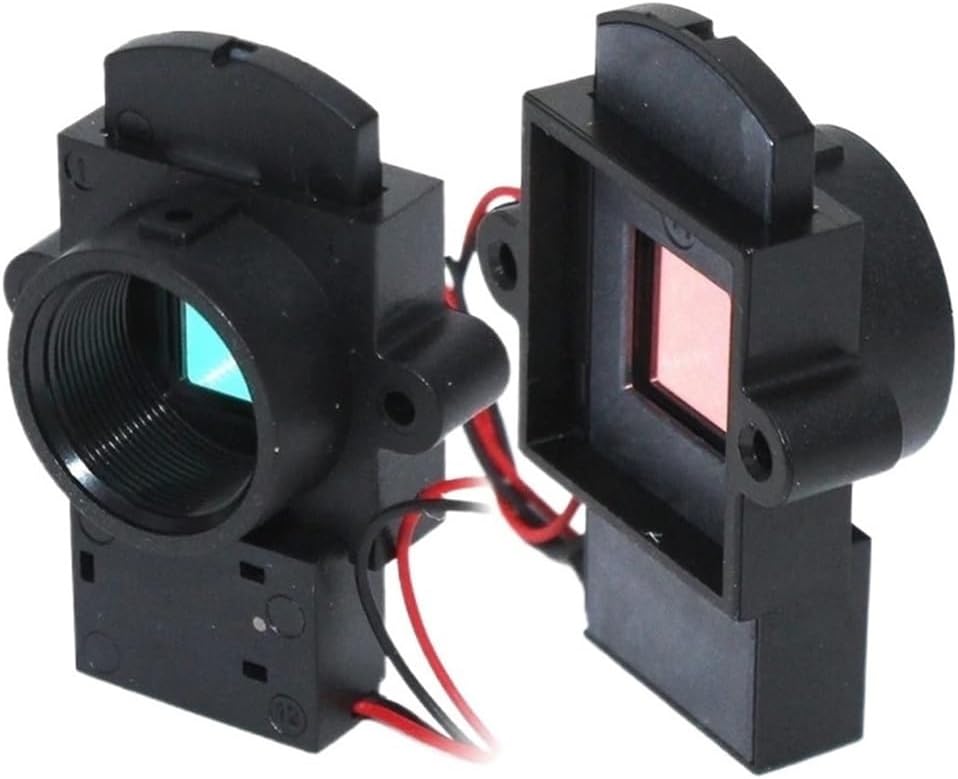

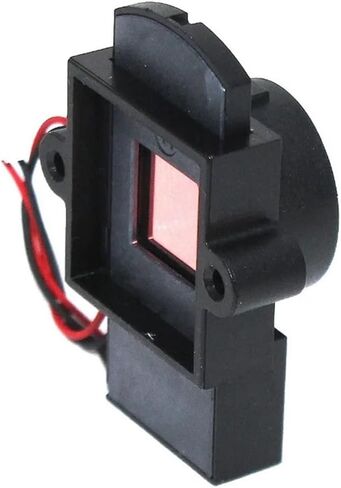

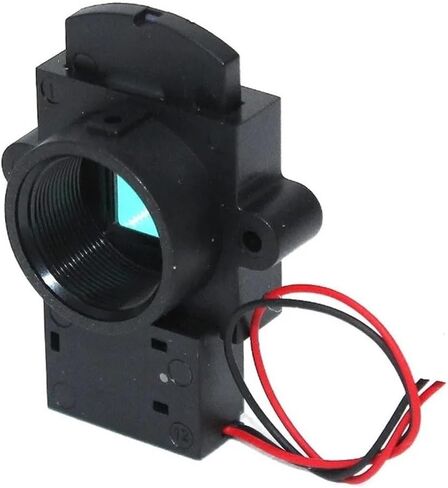

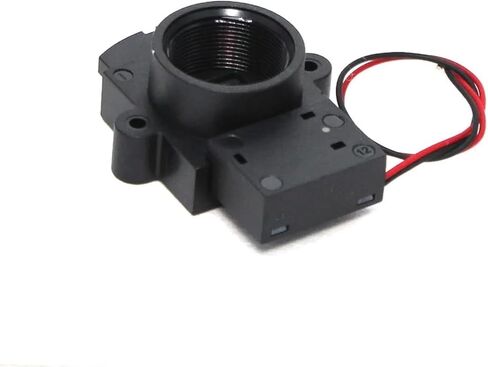

5.0 Megapixel M12 IR Cut Filter Dual ICR Double Switcher IR-CUT 20mm Lens Mount Holder for 5MP IP AHD CVI TVI CCTV Camera
5MP Optical double filter switcher IR CUT
This product is suitable for network cameras, millions of HD cameras, infrared cameras, bolts and other cameras, let it cut off
Or through, the name is: dual filter switcher
The main role and function:
Corrects daytime polarization problems and improves nighttime brightness
working principle:
IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One Fully Permeable Filter + Electromagnetic Structure
1. Product material: lower cover PC plastic + lens mount PC plastic
2. Coil impedance: 22±5 (at room temperature 25°C)
3. Drive voltage: Operating voltage: 4-12V
Drive pulse signal time: 100ms
4. Inductance: 430uH±5%
5. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter
Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not)
6. IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms
7. Actuation mode Adopt DC voltage circuit to control magnetic rotary magnetic valve
8. Static energy retention Product retains power even when no power is applied
9. Normal temperature and humidity standard Temperature: +25°C±5°C, humidity 65%±20%
10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C
11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg
Package: 1PCS IR CUT
==========
Hign-concerned Chemical : None
Lens Type : Manual
Focal Length : 2.1mm
Certification : CE,FCC,RoHS,KC
Origin : Mainland China
mount : m12
Holder : 20mm
