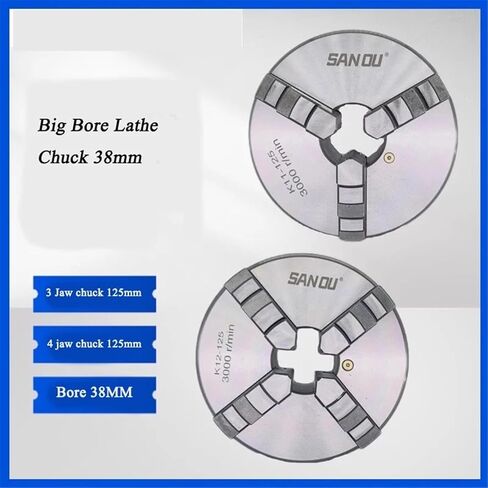

4 jawlathe chuck K12-125 (Big bore 38mm)
Specifications:
Jaws material:Hardened Steel
Model: K12-125

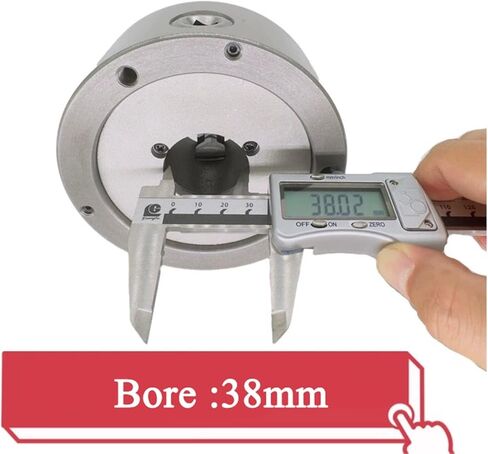

Through hole : 38mm
Max RPM: 3000 r/min
Jaw: 4 Jaw
Power: Manual
Features:
1.Short cylindrical center mounting.
2. Model K12chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3.Model K12chucks are supplied with traditional two-piece jaws.
Internal Jaw:
Clamping Range A-A1: 2.5- 40mm
Jamming Range B-B1: 38- 125mm
External Jaw:
Clamping Range C-C1: 38- 110mm

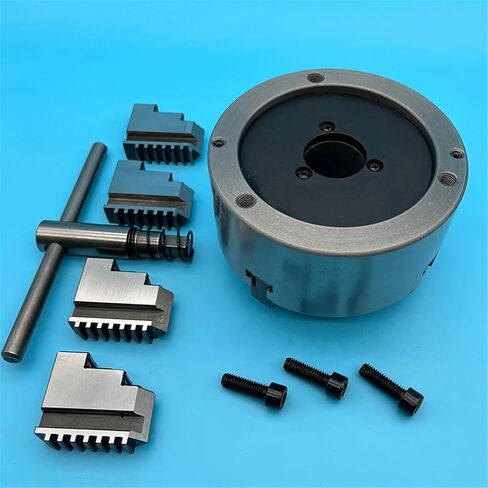

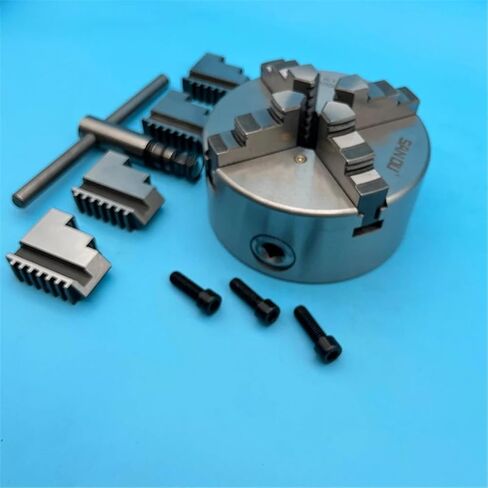

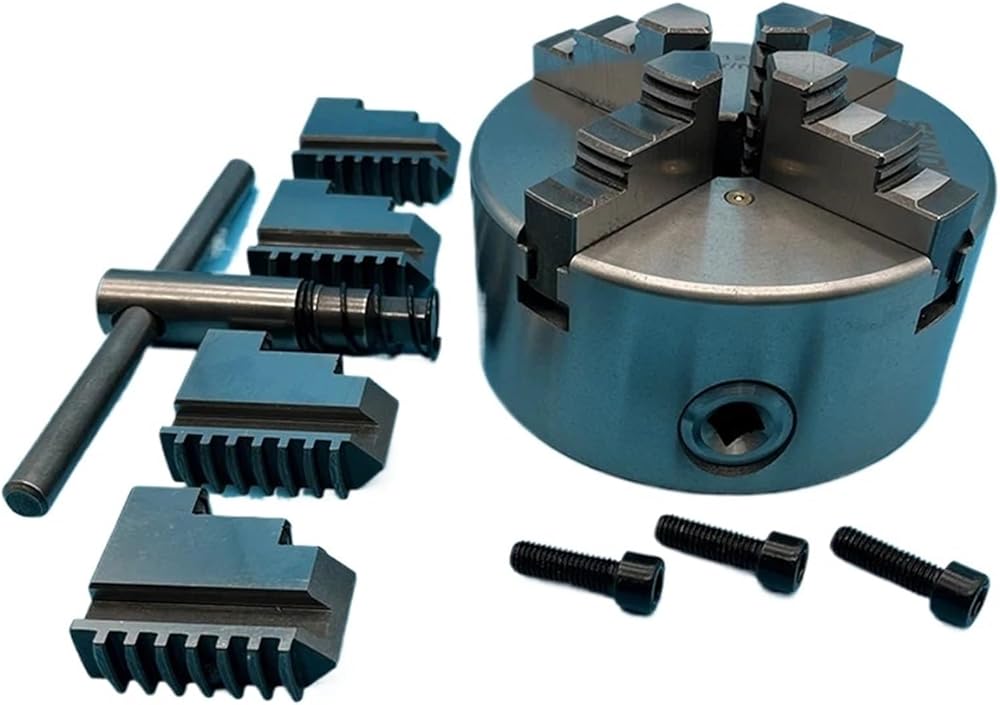

Packaged included:
Self-Centering chuck body x1
Internal jawsx 4
External jawsx 4
Safety chuck keyx 1
Mounting boltsx 3
==========
Model Number : K12-125(Bore 38mm)
Number of Jaws : 4
Power : Manual
Through hole : Big bore 38mm
Size : 125mm
Packing : Carton
Internal jaw clamp range : 2.5-40mm
Jamming range : 38-125mm
Name : 4 jaw chuck
Keywords : lathe chuck 4 jaw 125mm
