An AHD camera (Analog High Definition camera) is a type of surveillance camera that transmits high-definition video over traditional analog coaxial cables (like RG59 or RG6). It is an upgraded version of standard analog CCTV cameras, offering better resolution and image quality while maintaining compatibility with existing analog infrastructure.
Key Features of AHD Cameras:
High Definition Resolution
Supports 1080p (Full HD) resolutions, which are much clearer than traditional analog cameras (like CVBS, which only supports 480p).
Uses Analog Cables
Works with coaxial cables (e.g., RG59, RG6) and BNC connectors, making it easy to upgrade older CCTV systems without rewiring.
Long-Distance Transmission
Can transmit video signals up to 500 meters (with a good-quality cable and signal booster) without significant quality loss.
No Compression & Real-Time Video
Unlike IP cameras, AHD cameras transmit uncompressed video with zero latency, making them ideal for real-time monitoring.
Compatibility with DVRs
Requires an AHD 1080p-compatible DVR (Digital Video Recorder) for recording and playback. Some hybrid DVRs support both AHD and traditional analog cameras.
Plug-and-Play Installation
Easy to install since it doesn't require network configuration (unlike IP cameras).
Purchasing Guide for this AHD-1080p Cameras (Analog High Definition Cameras):

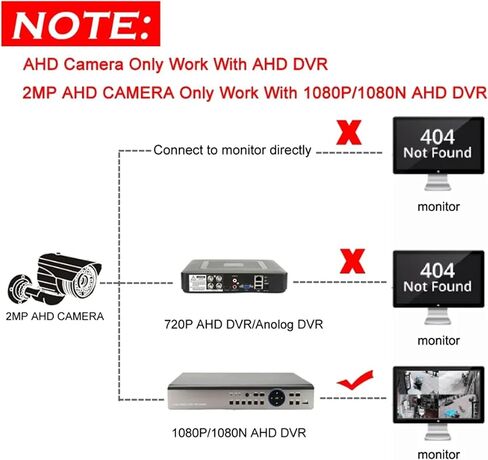

1. DVR (Digital Video Recorder): Must be AHD 1080p or above compatible (e.g., AHD 1080p DVR or hybrid 1080p DVR). AHD 720P DVR and older analog DVR will not be compatible with this camera.
2. Directly connect to monitor is not supported: It is not supported to directly connect this AHD camera to the monitor, otherwise the image will not be displayed.
3. DC 12V power supply required (Not Include): Common DV12V1A, requires a separate power adapter. The power supply is not included in package list, you have to prepare your own power supply for this camera.
4. AHD 1080P mode & NTSC signal: Camera default setting AHD 1080P NTSC standard.
All cameras are factory set to AHD mode by default, so please set your DVR to AHD mode when you test the camera for the first time.
If your DVR is set to PAL, you need to convert it to NTSC.
