Achromatic Objectives: Includes 4X, 10X, 40X, and 100X oil immersion lenses for clear, sharp imaging.
Double-Layer Movable Platform: Large 140x140mm stage with 75x45mm precise movement range for sample adjustment.
Comfortable Viewing: Hinged binocular observation head tilted at 45° with WF10X eyepiece, WF16X optional for wider field of view.

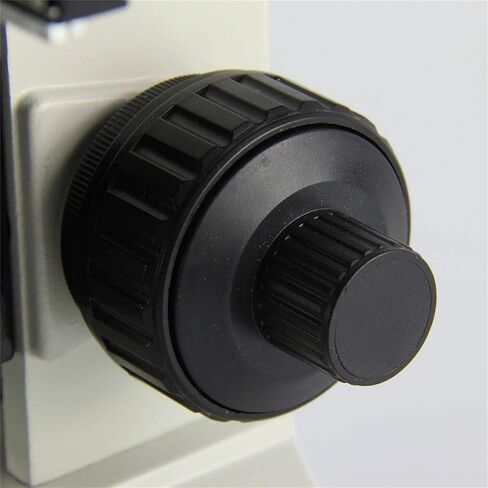

Precise Focusing System: Coaxial coarse and fine focus with 30mm range and fine adjustment scale value of 0.002mm.

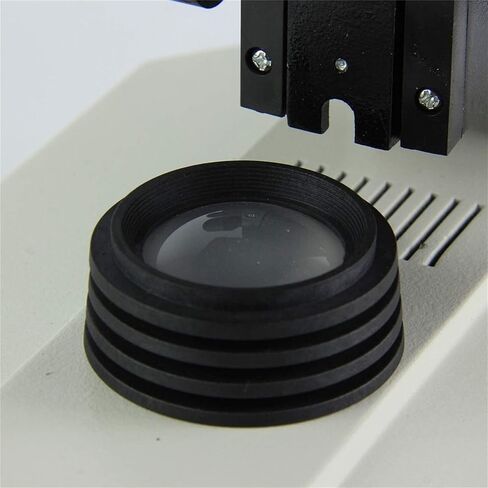

Advanced Lighting & Condenser 6V 20W halogen lamp with NA=1.25 Abbe condenser, variable diaphragm, and color filter for optimal illumination.
Description

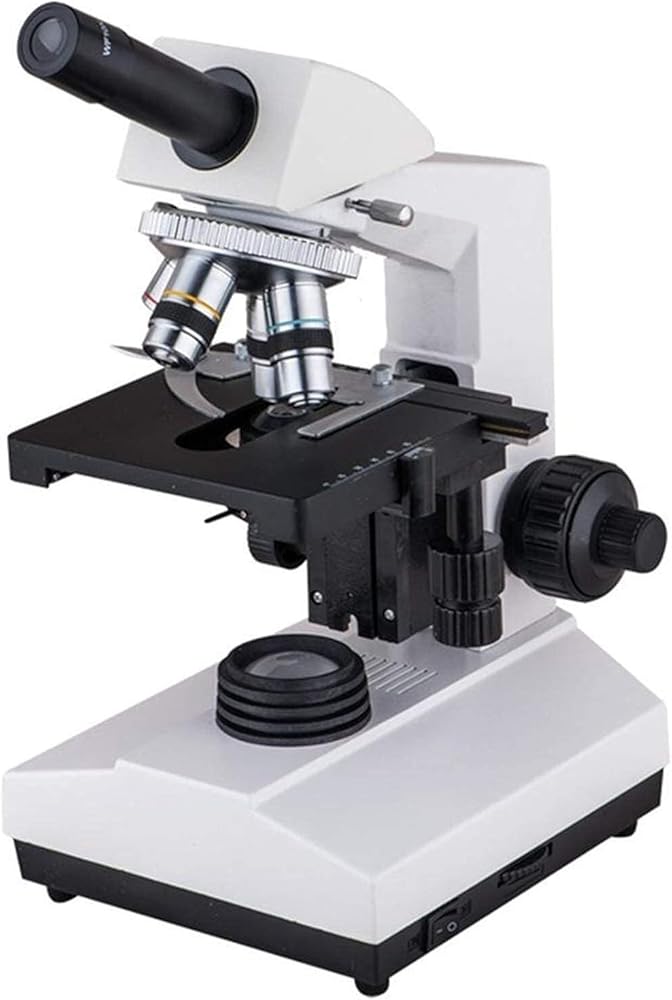

The Monocular Biological Microscope is designed for educational and laboratory use, offering exceptional clarity and precision. Equipped with achromatic objective lenses ranging from 4X to 100X oil immersion, this microscope delivers detailed observation of biological specimens such as animal and plant samples. The double-layer movable platform provides ample space and accurate positioning for sample slides. Its hinged binocular head, tilted at 45°, ensures comfortable viewing during prolonged use. The coaxial coarse and fine focusing system allows for precise adjustments with a fine scale value of 0.002mm. Illumination is powered by a 6V 20W halogen lamp paired with an NA=1.25 Abbe condenser featuring a variable diaphragm and color filter for enhanced image contrast. Ideal for school laboratories and science education, this microscope is a reliable instrument for detailed biological analysis.
