Description

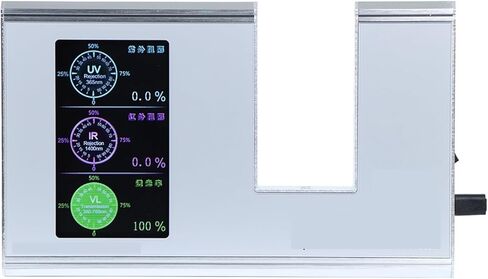

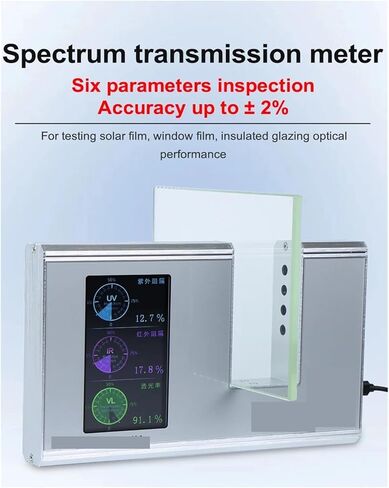

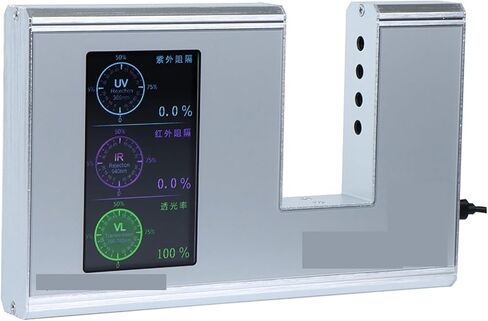

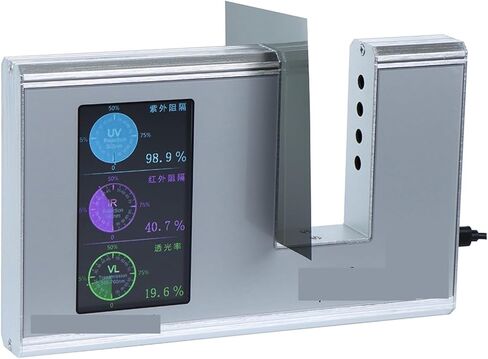

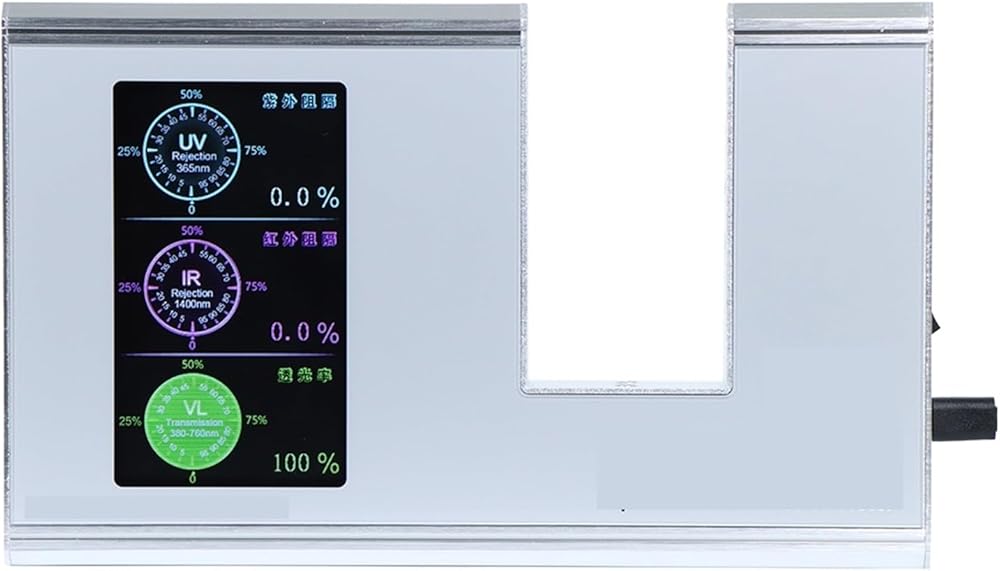

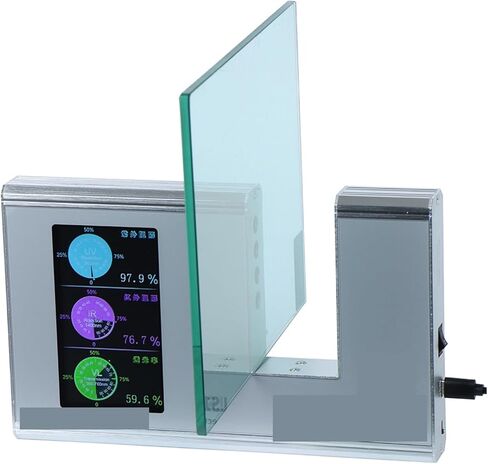

182 spectrum transmission meter can measure SHGC (Solar Heat Gain Coefficient), 940nm, 1400nm, and full infrared rejection rate, 365nm ultraviolet rejection rate, and 380nm-760nm visible light transmittance. It employs parallel light path design and can measure materials up to 47mm in thickness. The LCD screen provides convenient reading with three selectable modes. It features real-time dynamic self-calibration, automatically calibrating upon startup. It operates on 5V power supply and can be directly connected to a e power source. Commonly used in industries such as window film, s, and architectural doors and windows.

Specifications
1. UV peak wavelength: 365nm
2. IR peak wavelength: 940nm, 1400nm, Full IR and SHGC
3. Visible light: 380-760nm (conform to photopic luminosity function)
4. Resolution: 0.1%
5. Measurement accuracy: ± 2% (colorless and uniform transparent material)
6. Test card slot: 47mm×91mm (W*H)
7. Weight: about 590g
8. Dimension: 216mm × 134mm × 29mm (L*H*W)
9. Power supply: 5V DC/1A (Type-C)

Features
6. Commonly used in industries such as window film, s, and architectural doors and windows.

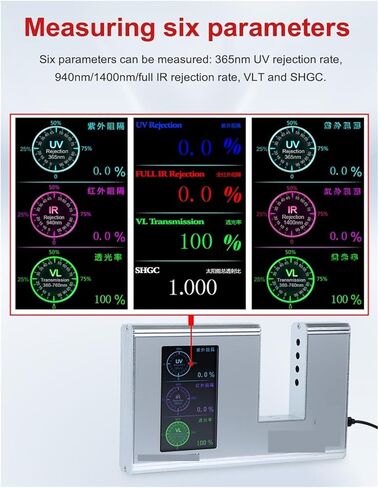

Measuring six parameters
Six parameters can be measured: 365nm UV rejection rate, 940nm/1400nm/full IR rejection rate, VLT and SHGC.

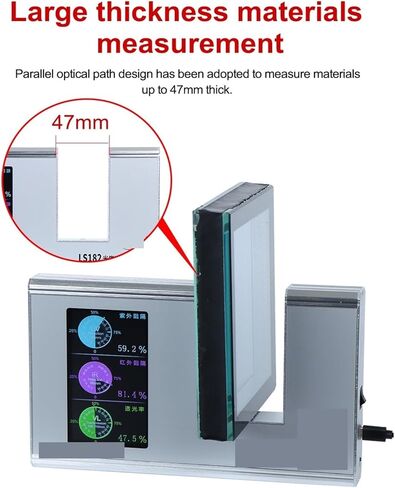

Parallel optical path design

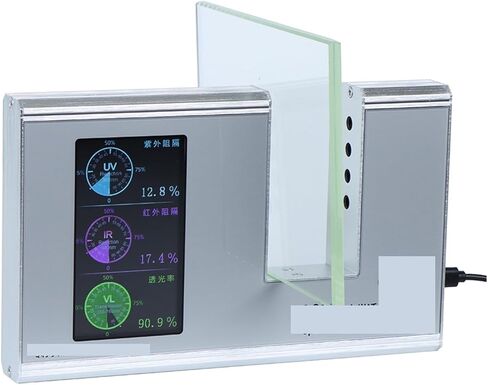

Parallel optical path design has been adopted to measure materials up to 47mm thick.

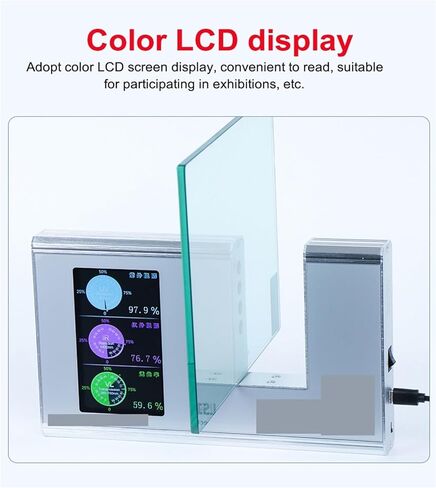

Color LCD display
Adopt color LCD screen display, convenient to read, suitable for participating in exhibitions, etc.
Real-time dynamic self-calibration function
It has real-time dynamic self-calibration function and is automatically calibrated after power on.
5V power supply
5V power supply with Type-C interface, can be directly connected to the e power supply.
Wide ran of applications
Commonly used in materials such as solar film, window film, insulated glazing, laminated s.
