Solar Film Transmission Meter 101 Self-calibration and auto-calibration, NO need any manual adjustments Resolution 0.1%

Feature:

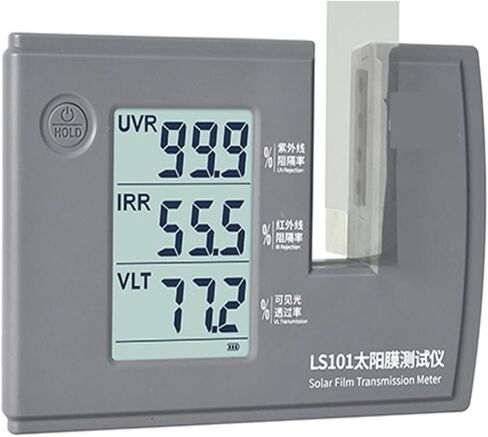

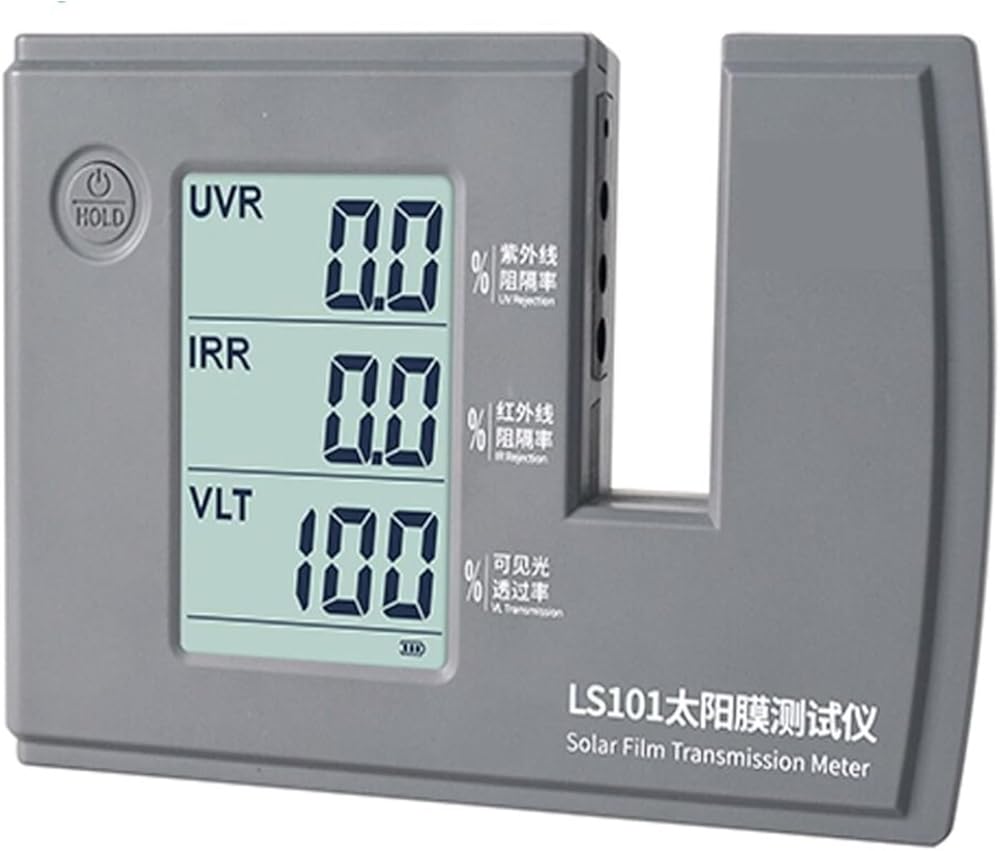

101 is able to measure and display UV, IR rejection value and visible light transmission value simultaneously. This meter is self-contained light sources and self -calibration. No manual adjustment is needed. The users only need to the power supply, turn on the switch and put the solar film in the slot. The resulting performance data will appear on the display interface.

Parameter:
1. Size: 175mm*120mm*30mm (L*W*H)
2. Test slot: 23mm * 76 mm (W*H)
3. Weigh: 360g
4. Resolution: 0.1%
5. Accuracy: ±2% (Colorless and transparent material)
6. UV Peak wavelength: 365nm
7. VL Peak wavelength: 380-760nm, conforming to the CIE photo vision function standard
8. IR Peak wavelength: 950nm
9. Power supply: 4*AA alkaline battery (not include)
or 5V AC/DC power supply (USB Type C interface) (Optional ).
Features
1. Adopt lar-screen LCD with backlight, which can be used without light.
2. Adopt parallel light source design which is suitable for testing the thick materials.
3. UV rejection meter, IR rejection meter, light transmittance meter, three function in ONE device.
4. Equipped with real-time dynamic self-calibration function, which is automatically calibrated after powering on.
