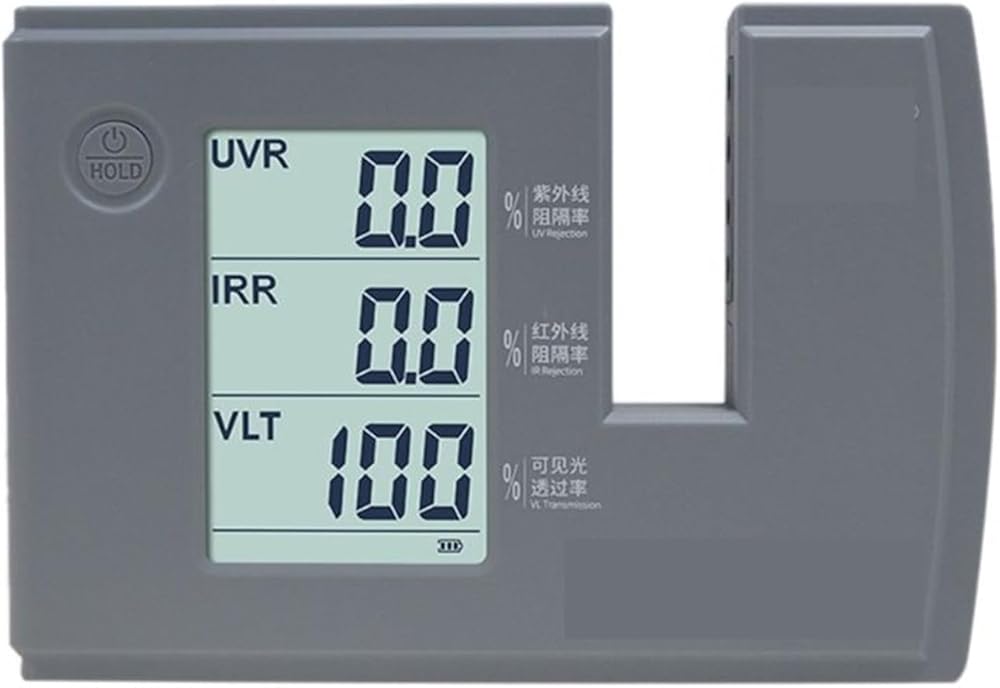

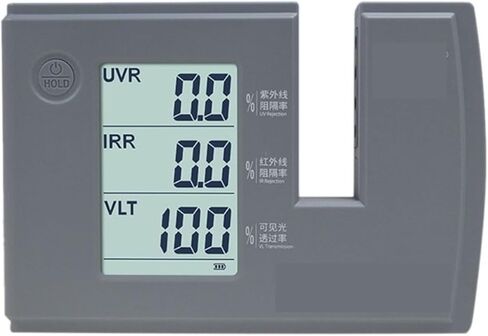

101 Window Tint s Solar Film Transmission Meter Rejection Rate UVR IRR VLT Tester

Overviews:
101 is able to measure and display UV, IR rejection value and visible light transmission value simultaneously. This meter is self-contained light sources and self -calibration. No manual adjustment is needed. The users only need to the power supply, turn on the switch and put the solar film in the slot. The resulting performance data will appear on the display interface.

Features
1.Adopt large-screen LCD with backlight, which can be used without light.

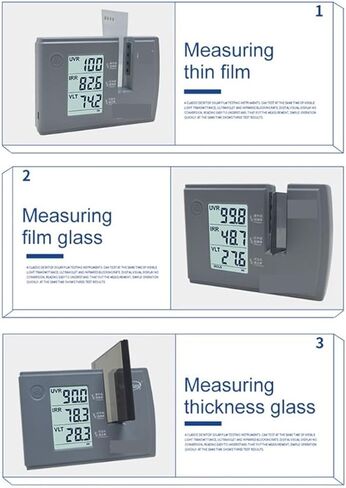

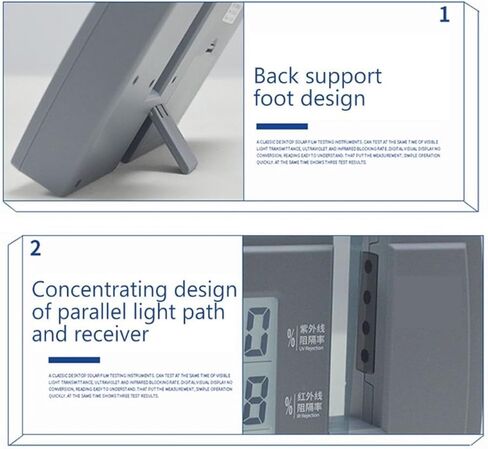

2.Adopt parallel light source design which is suitable for testing the thick materials.
3.UV rejection meter, IR rejection meter, light transmittance meter, three function in ONE device.

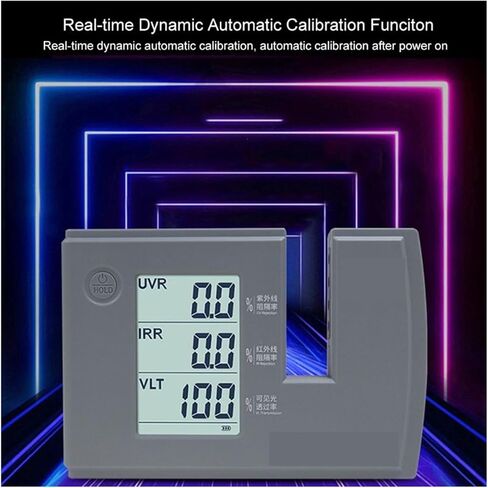

4.Equipped with real-time dynamic self-calibration function, which is automatically calibrated after powering on.

Parameter

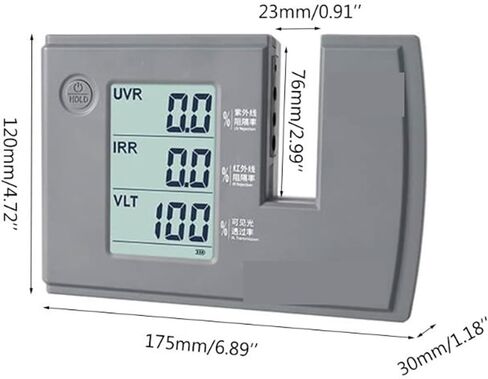

1.Size: 175mm*120mm*30mm (L*for W*H)
2.Test slot: 23mm * 76 mm (for W*H)
3.Weigh: 360g
4.Resolution: 0.1%
5.Accuracy: ±2% (Colorless and transparent material)
6.UV for Peak wavelength: 365nm
7.VL for Peak wavelength: 380-760nm, conforming to the photo for VISION function standard
8.IR for Peak wavelength: 950nm
9.Power supply: 4*AA alkaline battery(Not included) or 5V AC/for power supply (USB Type-C interface)

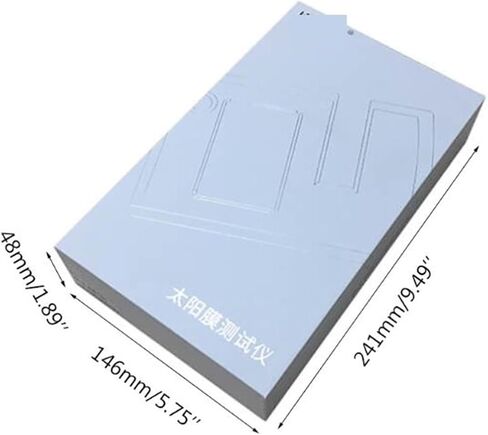

Package included:(with retail box)
1 * 101 Solar Film Transmission Meter
1 * User Manual
