Special Features

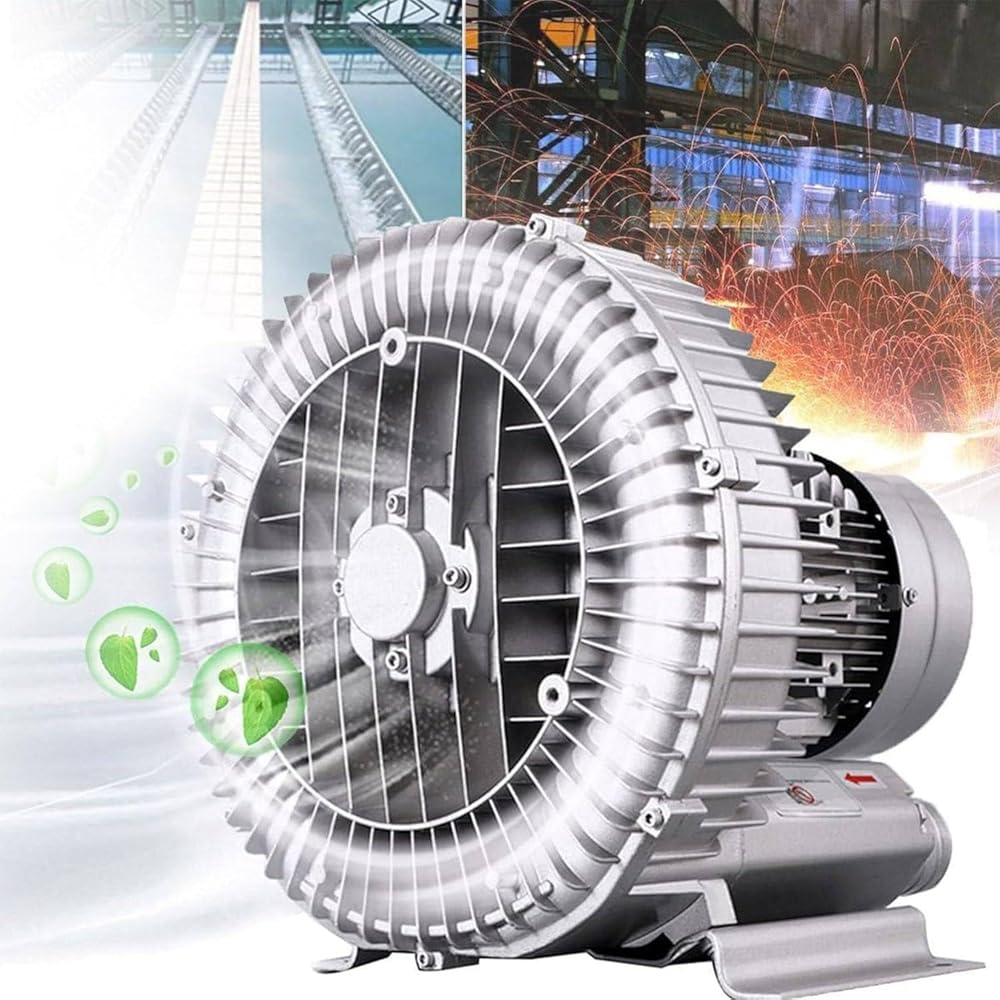

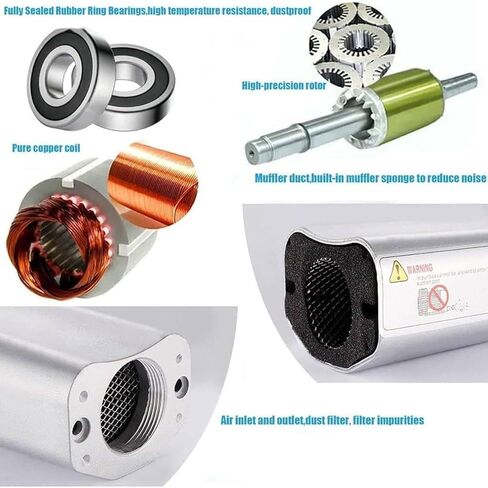

【Vortex ring blower】: The single phase vortex blower can be used for suction purposes such as fish pond farming, vacuum adsorption, industrial adsorption, air knife drying, and blowing. High-temperature resistants precision bearings effectively drive the rotor to rotate, allowing the fan to run smoothly and provide strong power for the fan.

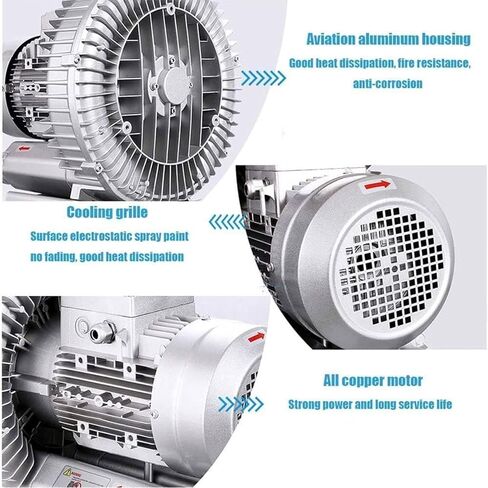

【Body material】: The regenerative blower body adopts aviation aluminum shell, which has good heat dissipation performance and high temperature resistance, ensuring that the fan can run stably in various harsh environments.
【Dust filter】: Dust filter is installed at the air inlet and outlet, which can effectively filter impurities in the air and keep the fan clean.
【Solid base】: The industrial blower base design can firmly support the fan to prevent it from shaking or overturning during operation. It can withstand greater weight and impact. High-pressure multi-wing spiral fan blades, centrifugal circulation, and high-precision balance calibration.

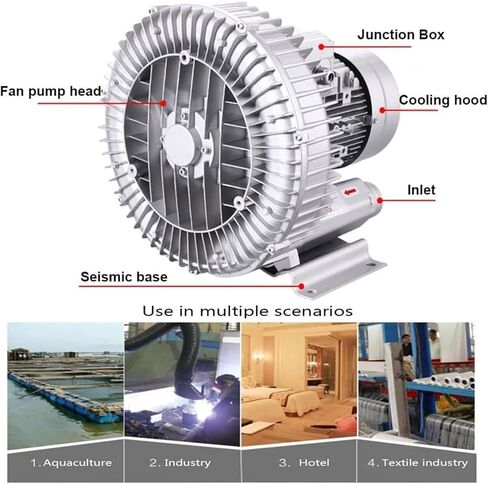

【Wide application】: The vacuum pressure blower has two functions of suction and blowing. It can send air to a certain area or extract air from a certain area according to different ventilation needs. It is very flexible and practical. The blower is suitable for industrial blowing, textile industry, construction sites, powder and particle transportation, fish pond aeration, hotels, printing and papermaking industries.

Description

▶ Regenerative vortex fan is used in applications requiring low pressure or vacuum with high air volume.

▶ Widely used in manufacturing, textile, chemicals processing, printing, food, aquaculture and water treatment industries.

▶ Function: fish pond aeration, drying, ventilation, dust removal, force transmission.

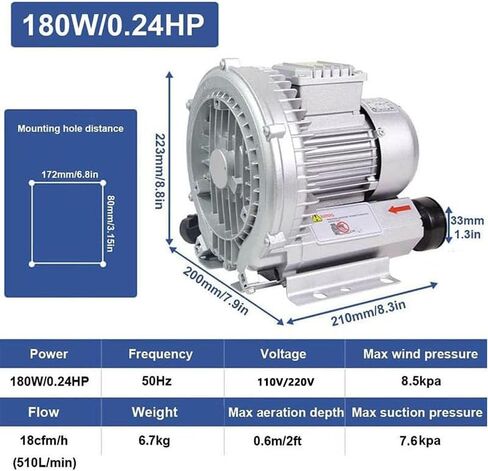

▶ Specifications:

Name: Regenerative fan

Material: Aviation aluminum.

Color: Silver

Voltage: 110V/ 220V

Frequency: 50HZ

Number of phases: single phase

Motor speed: 2800rpm

Working temperature: -40℃~40℃

Inlet temperature: -40℃~80℃

Power: 180W/0.24HP, 550W/0.74HP, 1100W/1.48HP.

Maximum wind pressure: 8.5kPa, 14kPa, 24kPa

Maximum suction: 7.6kPa, 13kPa,22kPa.

Maximum ventilation depth: 0.6m, 0.9m, 1.2m

Installation: horizontal or vertical

Weight: 8/15/26KG

▶Packing list:
1 * Side channel compressor

1 * Instruction manual
