The Lilliput Q15 is a stable work horse machine, packed with features and facilities for the serious photographer, videographer, or cinematographer. Compatible with a multitude of inputs - and featuring the option of a 12G SDI SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording - a first for a Lilliput monitor.

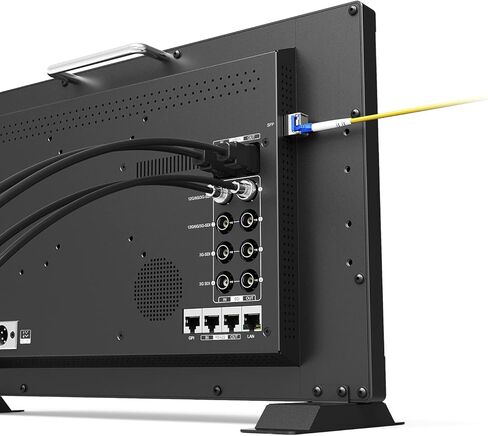

The 12G SDI inputs allow the units allow for multiple configurations of input. Single Link, Dual Link, and Quad link inputs mean you can use a either a single input or conjoined inputs to make up your 4K video input signal. This opens up the input workflow for the multiple types of camera to be attached into the monitor depending on the usage and configuration of the video capture environment.
Audio Vectoring - The Lilliput Q15 allows for the visualization of the input audio using a Lissajous graph system. A graph is represented on screen, with two intersecting lines forming a cross. The line from top left to bottom right measures the left hand part of the stereo field, while to line from top right to bottom left measures the right hand part of the stereo field. The crossover of the two lines is the centre balance, and the audio field will create a specific shape in the graph to represent your input audio
With HDR activated (HDR 10), the display produces a much greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly - effectively enhancing the overall picture quality. Supported Formats HDMI Formats Supported2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 SDI Formats Supported2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 SFP Formats Supported2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 Video Loop Output HDMI Video Loop Output1x HDMI 2.0
