Handheld Window Film Transmission Meter with 1400nm IR Rejection,UV Blocking Rate Visible Light Transmittance 162A for UV Measuring

KWD 81
Brand
DISIROU
Weight
499 g
– 1 +

Special Features

  • 1. The window film transmission meter has simple operation and the measurement is fast. Just put the measured object into the test slot then the visible light transmittance, ultraviolet and infrared rejection rate will be immediately displayed on the interface. The instrument has two languages of Chinese and English.162A window tint meter test stick-film s
  • 2. The instrument has small size and it is very convenient to carry out; the test card slot is 8mm wide, which can directly test the car windshield.162A window tint meter test car side windshield

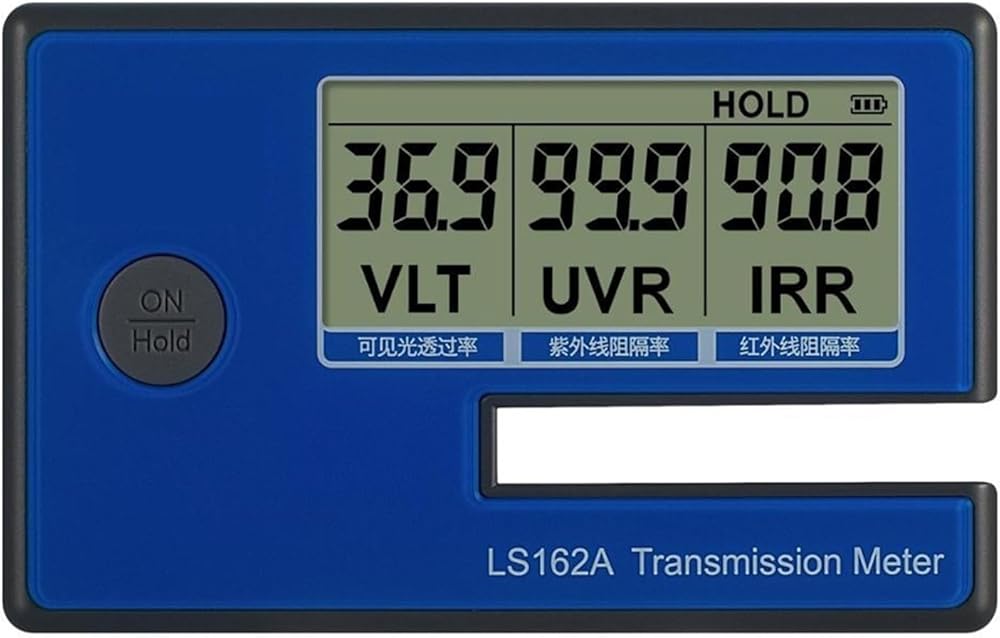

  • 3. The instrument has the data lock function. After the test is completed, press the HOLD button to lock the test data. The data will remain on the display interface after taking away the tested material.162A transmission meter data lock function

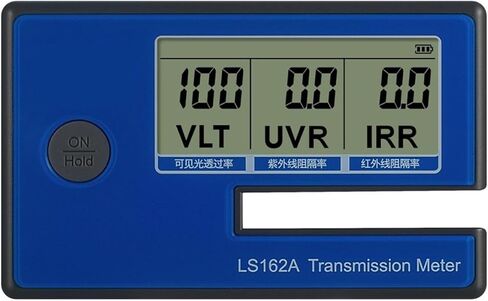

  • 4. 162A portable solar film transmission meter has real-time dynamic calibration function. When there is no test object, the window tint meter will automatically return to the original data state to ensure more accurate test data.162A window tint meter original status

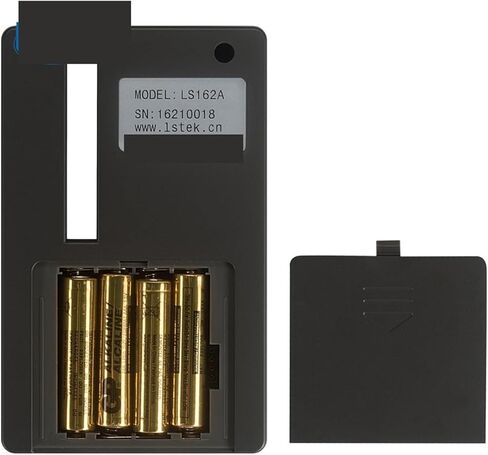

  • 5. The transmission meter is powered by 4 AAA alkaline dry batteries with ultra-low power consumption. And the instrument will automatically shut down after 3 minutes without any operation. With this design, the instrument is more energy efficient.

Description

Description
I. 162A Transmission Meter Introduction
162A portable transmission meter is a classic three-band solar film tester. Three test holes are used to test the visible light transmittance, UV rejection rate and infrared rejection rate of the material. Simply place the tested material in the test slot then we can read the three test data at the same time. It is mainly suitable for optical properties of various uniform and transparent materials such as solar film, laminated s and automobile side s.

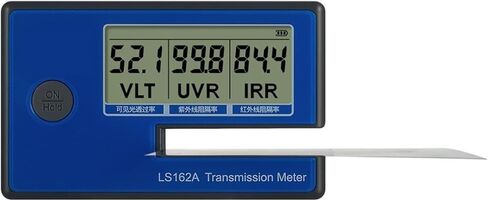

162A transmission meter display
II. 162A Transmission Meter Application

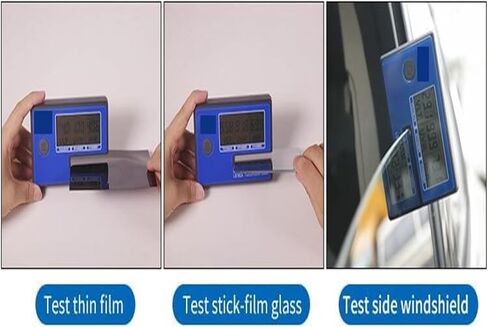

162A solar film tester test different materials
III. 162A Transmission Meter Parameters
UV peak wavelength
365nm
IR peak wavelength
1400nm
Visible light
380nm-760nm full wavelength, in line with photopic luminosity function
Resolution
0.1%
Measurement accuracy
better than ± 2% (colorless and uniform transparent material)
Maximum sample thickness
Weight
about 165g(batteries excluded)
Dimension
120mm × 25mm× 75mm (L*W*H)
Power supply
4 AAA alkaline dry batteries

No.
Description
Quantity
Unit
1 162A Transmission Meter
1 pcs
2 AAA battery
4 pcs
3 User Manual
1 pcs
5 Packing box dimension 18*11*5 cm(L*W*H)
1 pcs
162A transmission meter package
