UV-int 150 UV Power Meter, UV Measuring Instrument Reader Radiometer for UV Measuring

KWD 125
Brand
DISIROU
Weight
1 kg
– 1 +

Special Features

  • The UV-Int 150 is a UV measuring instrument. It is used to measure UV energy of
  • different light sources, especially on printing machines. It is to ensure quality control of printing and drying processes.
  • Small size, heavy duty pass-through Integrator with a diameter of 90 mm. It is reliable and simple to use.
  • Spectral ran: UV 250- 410 nm
  • Measuring ran: 0 to 5,000 mW/cm2

Description

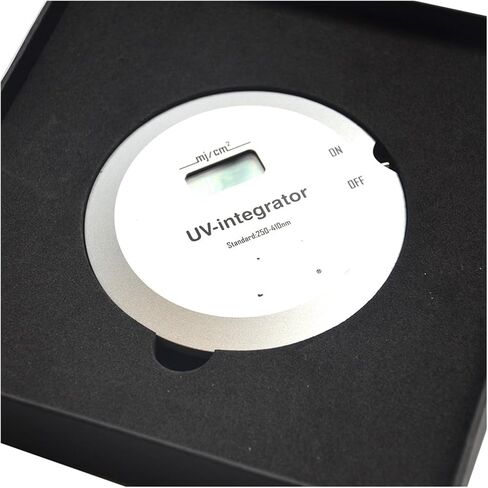

UV-int 150 UV Power Meter UV measuring instrument reader radiometer

UV-int 150

Technical Data:
Spectral ran: UV 250- 410 nm
Measuring ran: 0 to 5,000 mW/cm2
Display: 6-digit LCD
Display ran: 0 to 999,999 mJ/cm2
Power source: long life 3.6 V Lithium Battery
Power consumption: 100 uA
Battery service life: 10,000 hrs
Dimensions: diameter (90 mm), height (12 mm)
Weight: approx. 5.25 ounce (150 grs.)
Temperature ran: 0 to 45 Centigrade
Heat protection: Heat shield on back plate
Base Accuracy: +-5 %

While on the conveyer belt, the UV-Int 150 can withstand max. 110° Centigrade for up to 10seconds.

uv power meter uv measuring instrument, UV Radiometers, Physical Measuring Instruments, Measurement & Analysis Instruments
