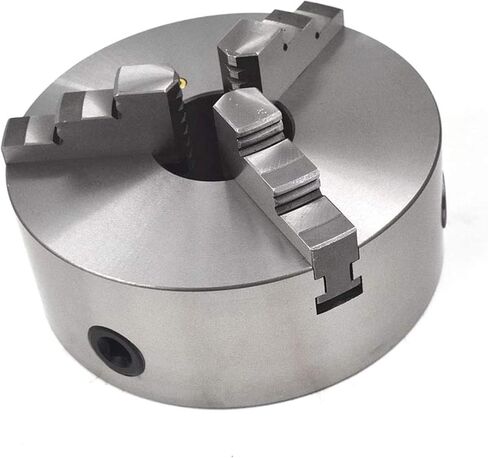

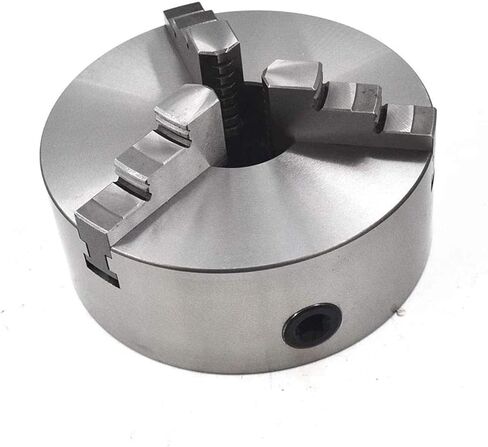

3 Jaw 8'' K11 200 Lathe Chuck Self Centering Reversible Hardened Steel 200mm
Features:
Model K11 chucks are provided with jaws(which include a set of internal jaws and a set of external ones ).
Max RPM: 3000 r/min
The jaws for K11A, K11C,K11D and K11E chucks are composed of two piece jaws. They can perfrom as either internal jaws through adjustment
Specification:
Material:Hardened Steel
Model: K11 200
Max RPM: 3000 r/min
Jaw: 3 Jaw
High precision: ?0.05mm
Application: for CNC Drilling Milling Machine
Color: Silver
Diameter: 200mm(7.874")
Thickness: 75mm(2.953")
Center Hole: 65mm(2.559")

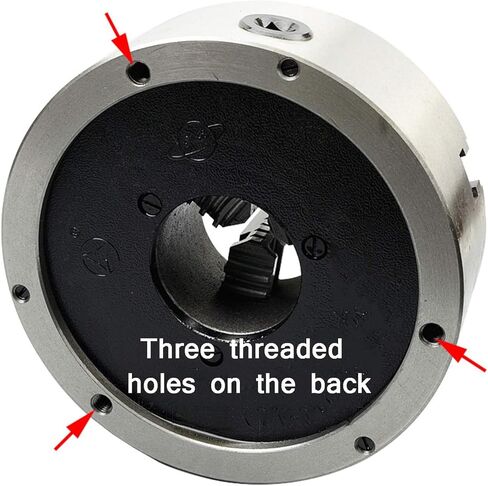

Bolt Circle Diameter: 180mm(7.087")
Runout: 0.08mm(0.003")
Internal Jaw:
Clamping Range A A1: 4 85mm(0.157 3.346")
Jamming Range B B1: 65 200mm(2.559 7.874")
External Jaw
Clamping Range C C1: 65 200mm(2.559 7.874")

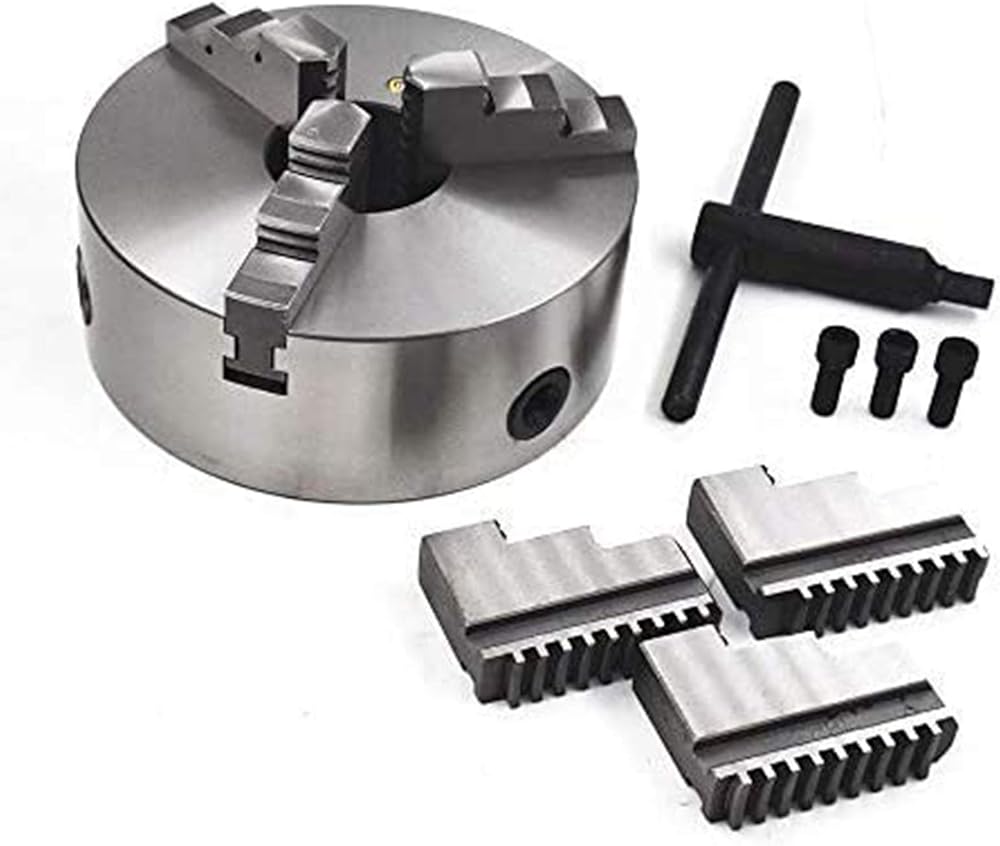

Package list:
1 x Lathe Chuck

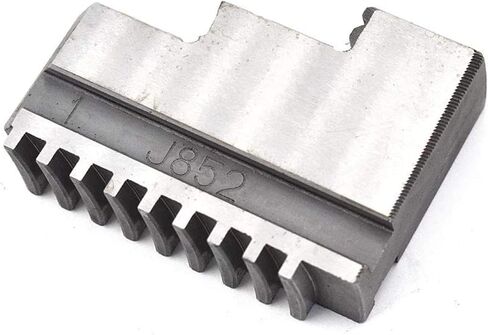

3 x Inside jaws
3 x Outside jaws

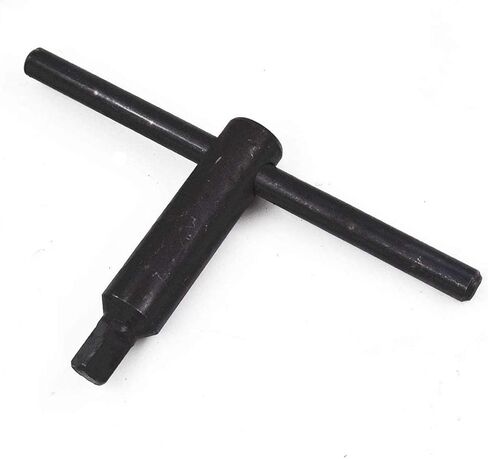

1 x Wrench

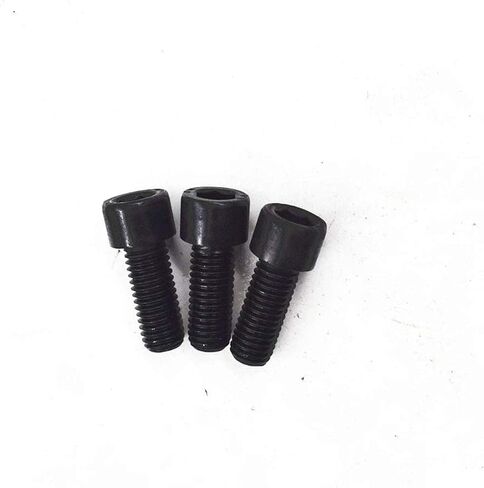

3 x Allen screws
Note鈿?
1. Only the above list is included. The other products in the picture only show how they are used.
2. Please allow 0.5鈥?1鈥?1.3 2.5cm) errors due to manual measurement and make sure you don't mind before ordering.
