Portable Transmittance Tester CT Series Introduction
Part 1. Instrument Advanta

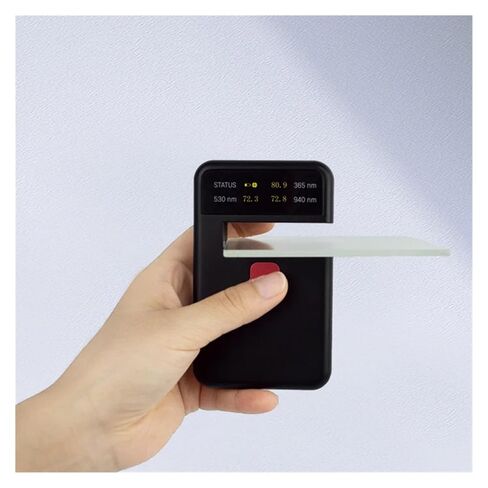

1. Simple operation and fast to t the result, as long as the sample is placed in the test area, the test result will be displayed.
2. It can measure the transmittance of UVlight, visible light, and infrared light.
3. It adopts parallel light path design, sample measurement thickness can reach 13mm.

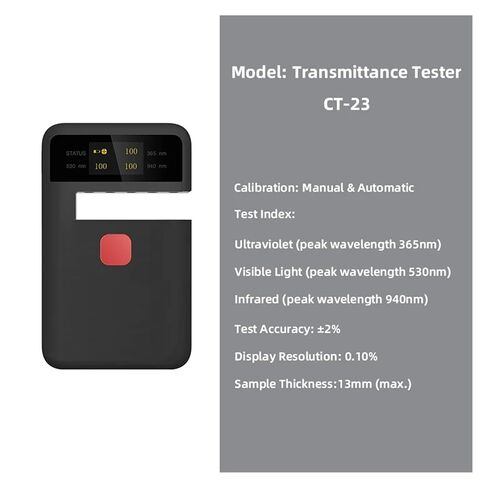

Part 2. Technical Data
Name
Portable Transmittance Tester
Portable Transmittance Tester
Model
CT-23
CT-25
ometry
Transmission
Transmission
Calibration
Manual + Automatic
Manual + Automatic
Test Index
Ultraviolet (peak wavelength 365nm)
Visible light (peak wavelength 530nm)
Infrared (peak wavelength 940nm)
Ultraviolet (peak wavelength 365nm)
Visible light (peak wavelength 530nm)
Infrared (peak wavelength 940nm)
Infrared (peak wavelength 1400nm)
Visible light (380nm-760nm,conform toCIE photopic function standard)
Test Accuracy
±2%
±2%
Display Resolution
0.10%
0.10%
Sample Thickness
13mm(max.)
13mm(max.)
Instrument Size
115* 70* 14mm
115* 70* 14mm
Test Time
Less than 1s
Less than 1s
Battery Volume
750mA
750mA
Power Supply
5V/1A
5V/1A
Screen
Full color display, 135*240, 1.14inch
Full color display, 135*240, 1.14inch
Recharging Interface
USB
USB
Working Temperature
0-40
0-40
Humidity
Less than 85%, no condensation
Less than 85%, no condensation
Standard Accessories
USBcable, Lanyard, operate manual
USBcable, Lanyard, operate manual

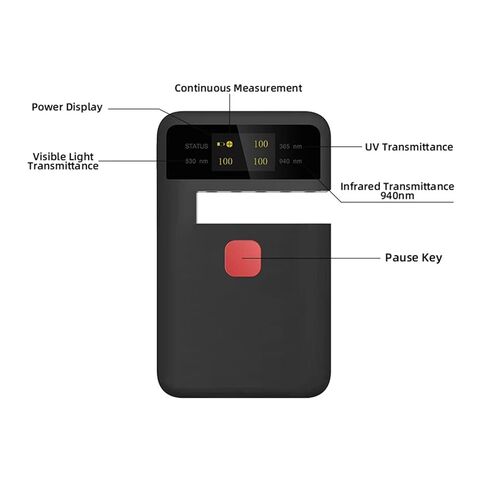

Part 3. Appearance Structure

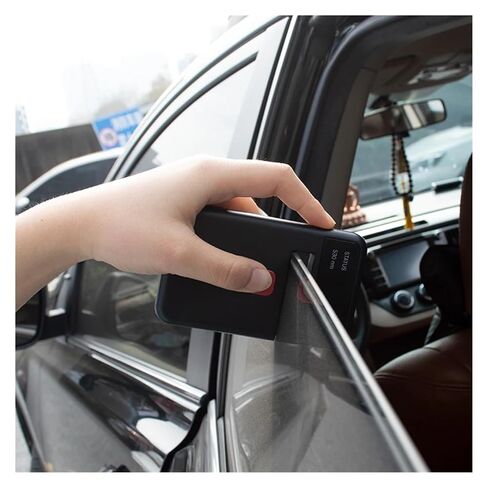

Part 4. Application

ses transmission meter,transmittance tester,tester ses,solar tester,spectrometers
