Specifications
1. UV Peak wavelength: 365nm
2. IR Peak wavelength: 940nm/1400nm optional
3. Visible light: 380-760nm, conform to the CIE photo luminosity function
4. Accuracy:±2% (Colorless and transparent material)
5. Resolution: 0.1%
6. Test Slot: 6mm *58mm (W*D)
7. Dimension: 146 mm ×73 mm ×24 mm (L*W*H)
8. Display: 128*128 Dot matrix LCD
9. Weight: 187g (Include Batteries)
10. Power supply: 4*AAA alkaline batteries
Features

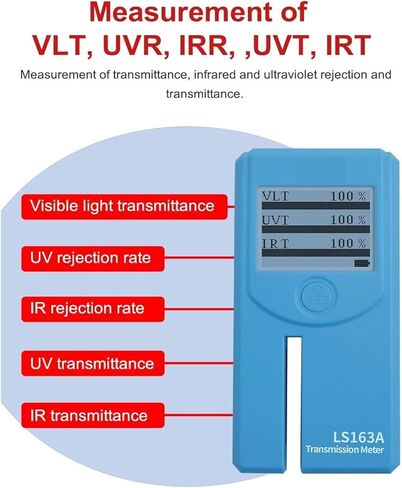

1. Measurement of transmittance, infrared and ultraviolet rejection and transmittance.

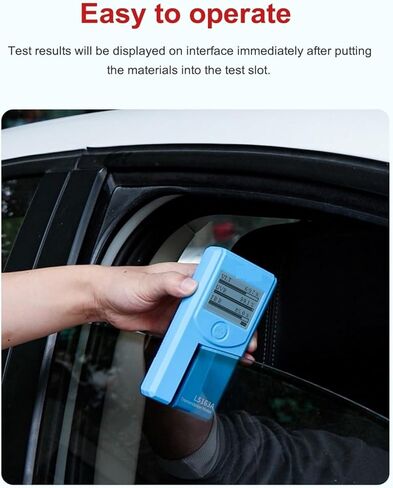

2. Test results will be displayed on interface immediately after putting the materials into the test slot.

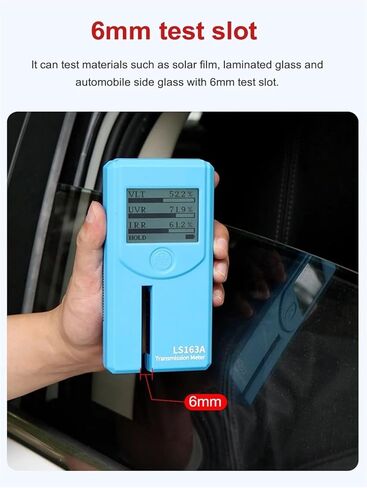

3. It can test materials such as solar film, laminated s and automobile side s with 6mm test slot.
4. The display interface can be rotated in four angles, convenient for reading data measured at different angles.
5. VLT/UVR/IRR, VLT/UVT/IRT and VLT, three display interfaces are available.
6. With real-time dynamic calibration, after power on, transmittance is calibrated to 100%.

1. 163A Transmission Meter*1
2. User Manual*1
4. Packing box dimension 18*11*5 cm(L*W*H)*1
5. Drawstring Bag*1
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the tures.
Please allow 1-2cm measuring deviation due to manual measurement.
