Total magnification: 20X, 40X; Eyepieces: widefield WF10X/20; Rotational objectives: 2X, 4X; Head: 45 degrees inclined binocular with locked-in eyepieces; Diopter adjustment on left ocular-tube; Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Working distance: 2-1/4inch (57mm); Field of view: 10mm/5mm; LED cold illuminators: incident (upper) and transmitted (lower)
Total magnification: 20X, 40X; Eyepieces: widefield WF10X/20; Rotational objectives: 2X, 4X; Head: 45 degrees inclined binocular with locked-in eyepieces; Diopter adjustment on left ocular-tube; Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Working distance: 2-1/4inch (57mm); Field of view: 10mm/5mm; LED cold illuminators: incident (upper) and transmitted (lower)
Total magnification: 20X, 40X; Eyepieces: widefield WF10X/20; Rotational objectives: 2X, 4X; Head: 45 degrees inclined binocular with locked-in eyepieces; Diopter adjustment on left ocular-tube; Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Working distance: 2-1/4inch (57mm); Field of view: 10mm/5mm; LED cold illuminators: incident (upper) and transmitted (lower)
Frosted glass stage plate: 3-3/4inch (95mm) in diameter; White/black plastic stage plate: 3-3/4inch (95mm) in diameter; Head vertical moving range (along the pillar): 2-3/4inch (70mm); Focusing adjustment range: 1-5/8inch (42mm); All metal mechanical components; Full optical glass elements; Power supply: Power adapter: 120V AC Battery: 3 AA batteries
Digital camera: - True color 640x480 pixels (0.3MP) - Frame speed: 30fps at 640x480 - Software compatible with Windows operating systems - Offers capturing still images, stitching, EDF, video recording and measurement functions - USB cable included
Dimension: 8-1/4inchx 4-3/4inch x 14-1/4inch (21cm x 12cm x 36cm)
5-year warranty against manufacturing defects
Description

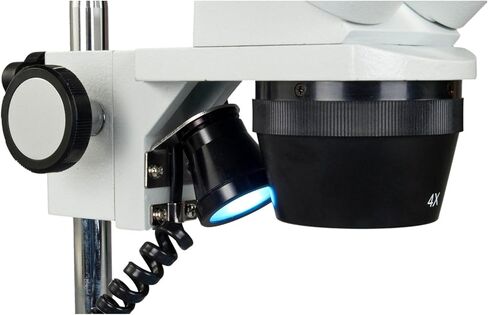

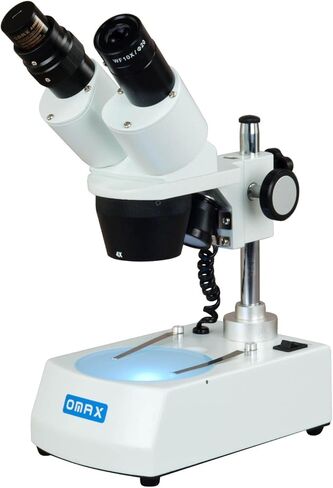

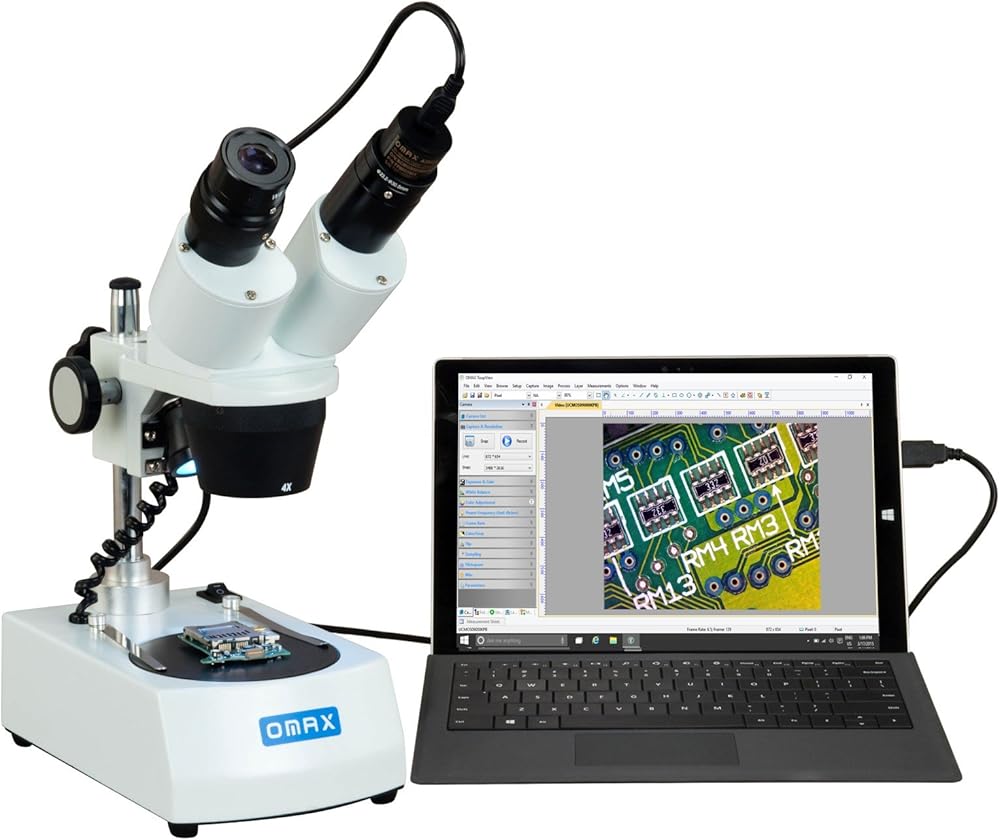

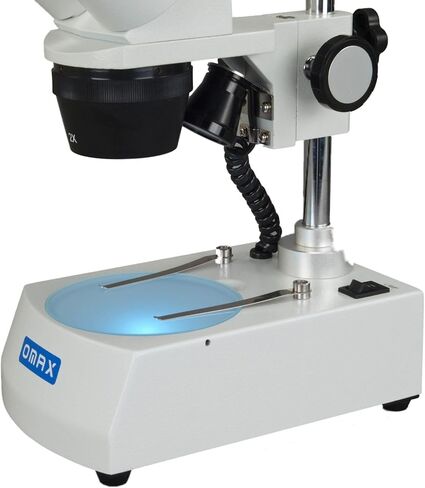

This is a package of cordless stereo binocular LED microscope with an USB digital imaging system. It can be used on 110V power supplies as well as running with 3 AA batteries, which means that it can be used in the outdoor fields. The microscopy has 20X and 40X two step magnifications with dual LED lights from both top and bottom sides. The stereo microscope has large working distance of 57mm and maximum field of view of 10mm. The digital camera captures still images, streams live videos on your computers, and is compatible with Windows (see version information below). The user-friendly editing and processing software for Windows offers advanced features including stitching, EDF (Extended Depth of Focus), video recording and measurement functions. The software allows you to make notes, shapes, and watermarks with ease. You can analyze, present, and share images of samples and specimens using the software. This microscope is a good choice for people who like to collect coins, stamps, rocks, gemstones but with low budget. It is also a good choice for students who would like to inspect insects, botanical specimens and etc.
