The vortex blower has sufficient pressure to meet the needs of long-distance gas transportation and can effectively convert electrical energy into gas pressure energy, thereby achieving efficient energy conversion.

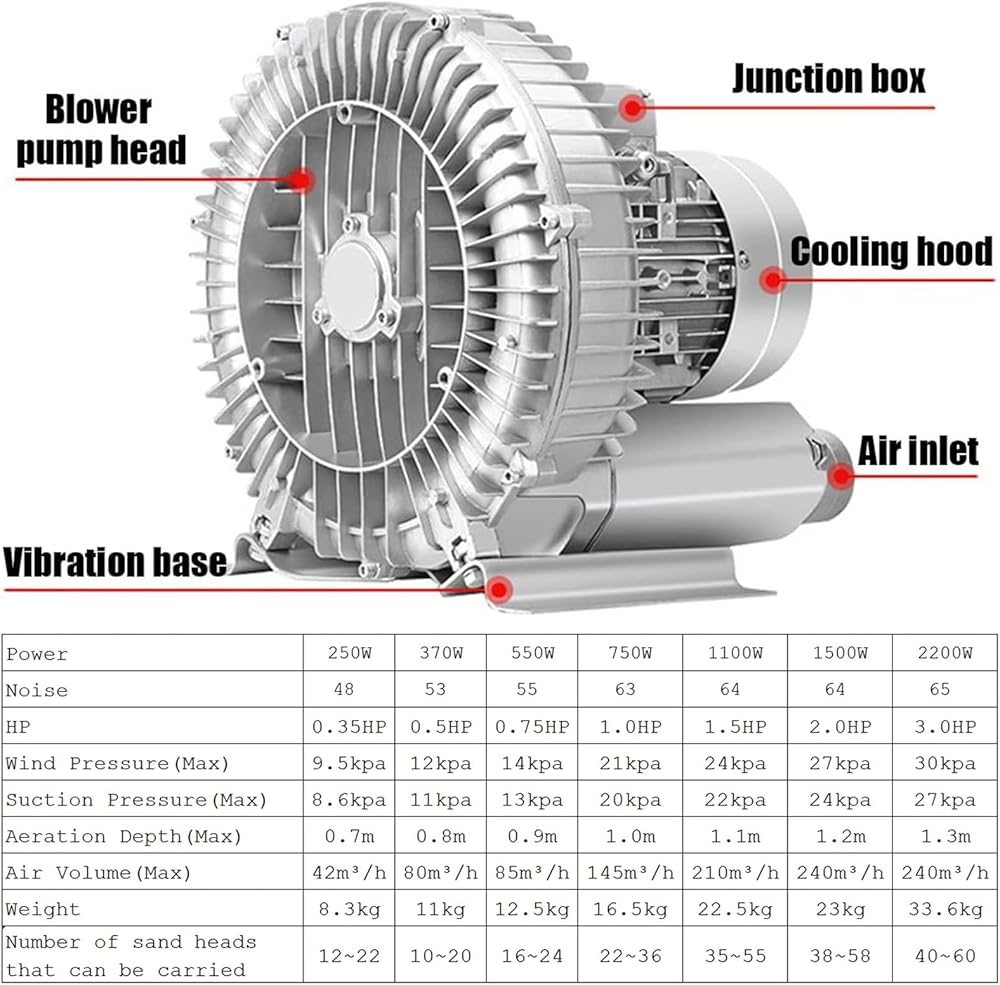

▼ Parameters:
- Voltage: 110V / 220V
- Frequency: 50~60Hz
- Power: 250W/0.35HP, 370W/0.5HP, 550W/0.75HP, 750W/1.0HP, 1100W/1.5HP, 1500W/2.0HP, 2200W/3.0HP
- Maximum Wind Pressure: 9.5/12/14/21/24/27/30 kpa
- Maximum Suction Pressure: 8.6/11/13/20/22/24/27 kpa
- Maximum Aeration Depth: 0.7/0.8/0.9/1/1.1/1.2/1.3m
▼ Specifications:
- Name: Regeneration Blower
- Material: aviation aluminum
- Color: silver
- Phase: single phase
- Installation Method: horizontal or vertical installation
- Weight: 8.3/11/12.5/16.5/22.5/23/33.6kg
- Working Temperature: -40~40℃ / -40~104℉
- Inlet Temperature: -40~80℃ / -40~176℉
▼ Packing Lists:
- Single Phase Blower x 1
- Instruction Manual x 1
▼ Warm Tips:
- There may be slight size errors due to manual measurement, please understand
- Due to different display screens, there may be slight color differences, which is normal
