550W/0.75HP

KWD 103.500
Brand
Mcamgiczin
Weight
8.3 kg
Size550W/0.75HP
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

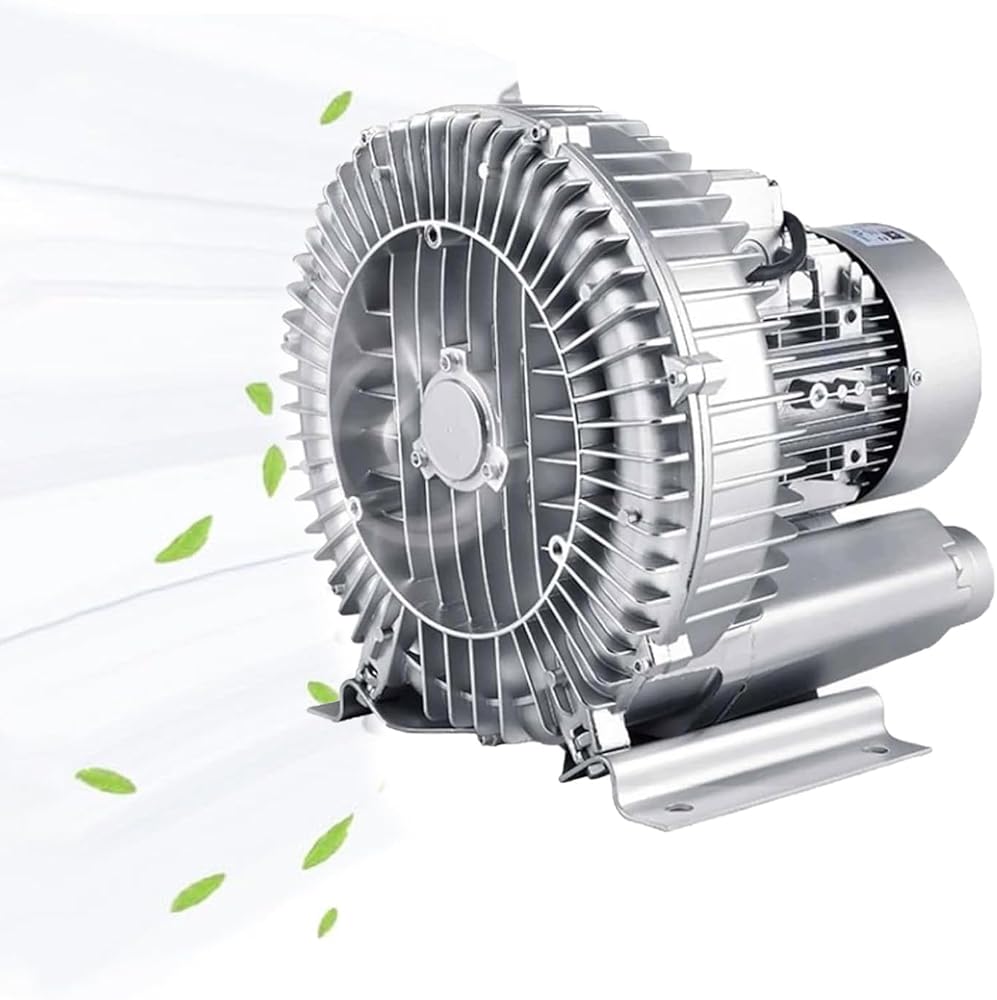

  • ▶【Regenerative Blower】The motor has no oil lubrication design, and the gas is more pure. Centrifugal circulation design, high pressure and large air volume. Air cushion design, lower noise. The starting torque is small, and the working process is stable and reliable.

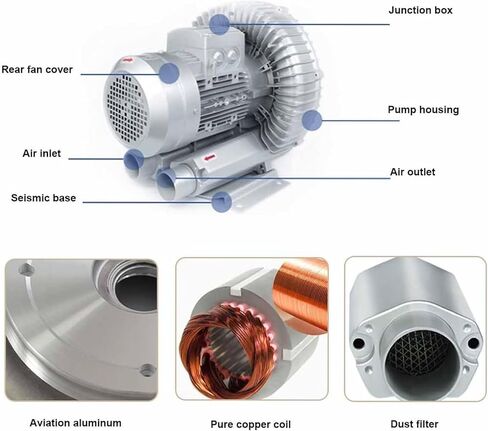

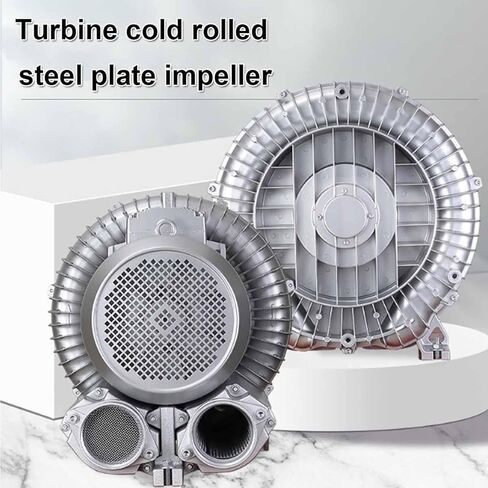

  • ▶【Efficient Design】This ring blower is equipped with dual-sided aluminum impeller processed with high precision machining techniques, preventing backflow and enabling rapid air exhaust while maintaining quiet run. Dust filters at the inlet and outlet effectively remove impurities, keeping the fan clean.

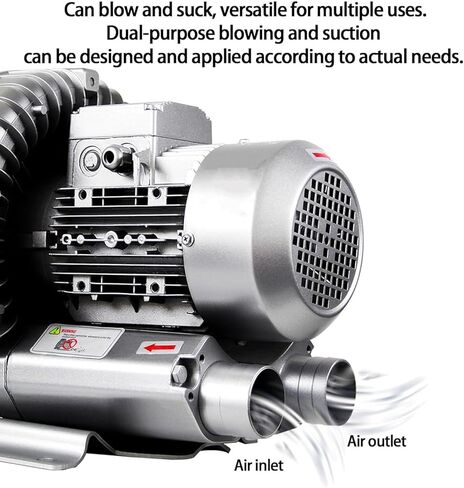

  • ▶【Dual-purpose Function】The vortex fan has two functions of air supply and air suction. Whether it is necessary to send air into a certain area or to extract air from a certain area, it can meet the ventilation needs in different scenarios.

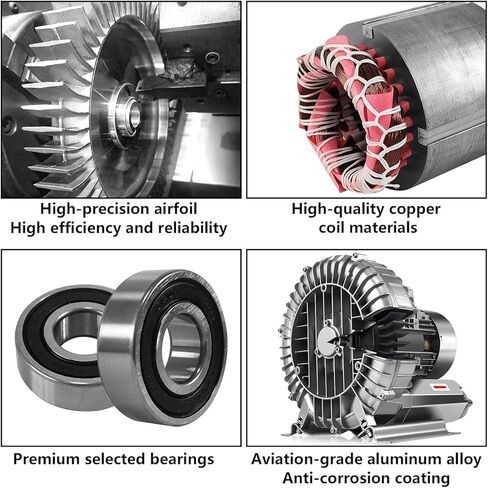

  • ▶【High-quality Materials】The shell is made of high-quality aluminum alloy, which has better heat dissipation effect. The pulling wire adopts expensive copper wire to ensure the high-efficiency, stable and safe run of the motor. Phosphate surface, electrostatic spraying, uniform color and stronger adhesion.
  • ▶【Wide Application】Vortex Ring Blower is suitable for industrial air blowing, textile industry, construction sites, powder transportation, fish pond aeration, hotels, aquaculture, printing and paper industries, etc.

Description

❤Multi-purpose blower, blowing and suction, high efficiency, low noise, compact structure, strong adjustability and easy maintenance.
❤Perfect for use in textile industry, powder transportation, industrial air drying and dehydration, aquaculture, construction sites, printing and other fields, with strong power and stable run.

☛☛Features:
●Centrifugal cycle design. High pressure and large air volume. Air cushion design, lower noise.
●Small starting torque, stable and reliable working process.
●No oil lubrication design, the gas is more pure.
●Appearance phosphating. Electrostatic spraying, uniform color, stronger adhesion.
●Wide range of power configuration, long product life.

☛☛SPECIFICATION:
Name: Single Phase Turbine Blower
Material: aviation aluminum
Frequency: 50HZ
Phase: single phase
Motor speed: 2980rpm/min

--Power:180w
Maximum air volume:30m³/h
Maximum air pressure:8.5kPa
Maximum suction pressure:7.6kPa
Noise:48dB
Aeration water depth:No more than 0.6m
Number of sand heads: 8~16

--Power: 250w
Maximum air volume: 42m³/h
Maximum air pressure: 9.5kPa
Maximum suction pressure: 8.6kPa
Noise: 53dB
Aeration water depth: no more than 0.7m
Number of sand heads: 12~22

--Power: 370w
Maximum air volume: 80m³/h
Maximum air pressure: 11.5kPa
Maximum suction pressure: 10.3kPa
Noise: 53dB
Aeration water depth: no more than 0.8m
Number of sand heads: 10~20

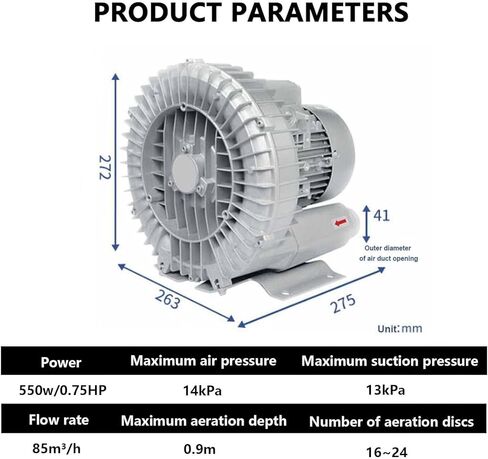

--Power: 550w
Maximum air volume: 85m³/h
Maximum air pressure: 14kPa
Maximum suction pressure: 13kPa
Noise: 55dB
Aeration water depth: no more than 0.9m
Number of sand heads: 16~24

♣ Packing list:
heat storage fan
instruction manual

If you have any questions, please contact us, we are happy to serve you.
