Transmission Meter for Tinted Window Film s with UV IR VL Transmission 108H
Overview

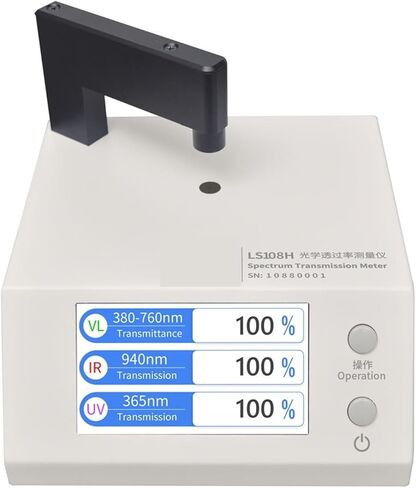

108H Spectrum Transmission Meter (2nd)

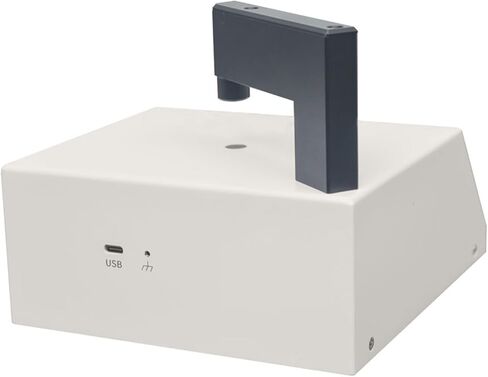

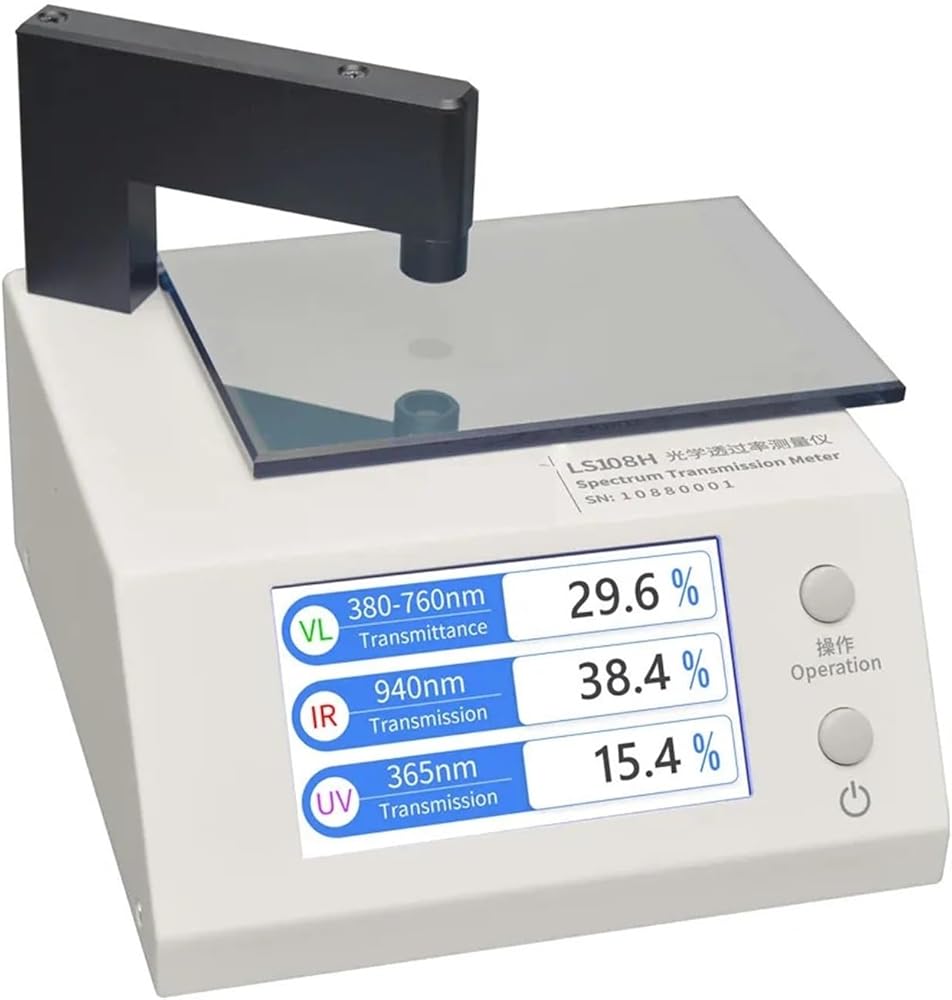

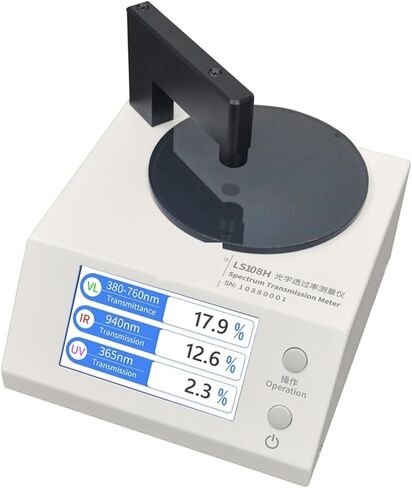

108H spectrum transmission meter is a desktop instrument, which is professionally used for optical transmittance test of various materials such as lens, s, coating material, organic material and paint, etc. The test aperture of the meter is 1mm, which is suitable for the measurement of light transmittance, infrared and ultraviolet transmittance of small-sized materials. The flat bench-top meter is convenient for placing various test samples. The test is fast and accurate. Once the test material is placed on the meter, the test results will be displayed immediately. The meter use parallel light path design that can measure thick materials.

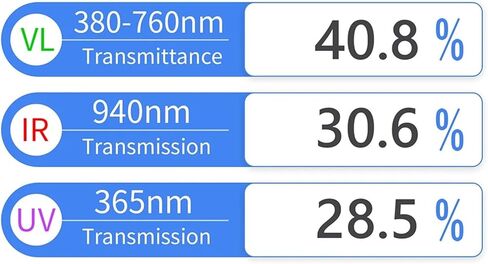

The 108H optical transmittance tester use ultraviolet light source, infrared light source and visible light source to illuminate the transparent material under test. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material under test. The ratio of the over light intensity to the incident light intensity is the transmittance, expressed as a percenta.

Features
6. Lar LCD display, Chinese and English interface can be selected.
7. 5V power supply, convenient to connect with e power (charging treasure).
Qualification and Standards

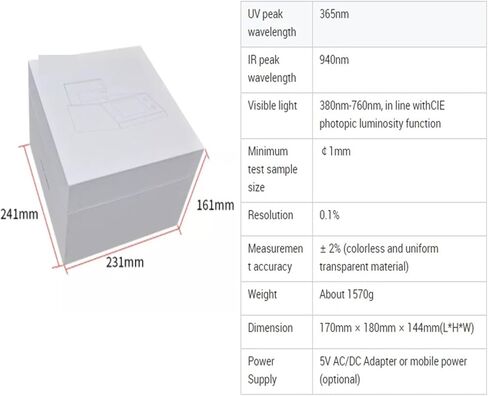

Paramenters
UV peak wavelength
365nm
IR peak wavelength
940nm
Visible light
380nm-760nm, in line withCIE photopic luminosity function
Minimum test sample size
1mm
Resolution
0.1%
Measurement accuracy
± 2% (colorless and uniform transparent material)
Weight
About 1570g
Dimension
170mm × 180mm × 144mm(L*H*W)
Power Supply
5V AC/DC Adapter or e power (optional)
