SpecificationsDC Version

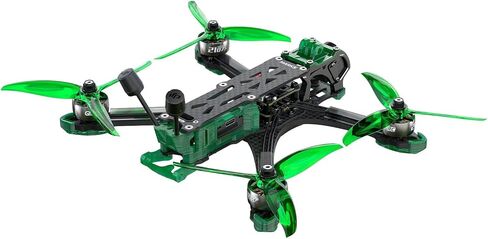

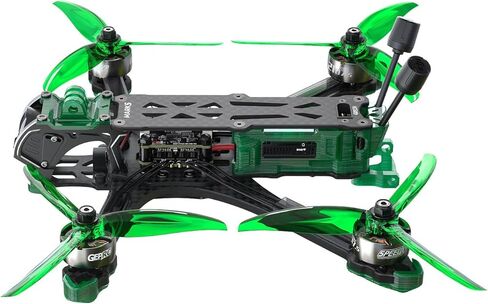

Model: MARK5 O4 Pro DC FPV
Wheelbase: 230mm
VTX: DJI O4 Air Unit Pro VTX module
Camera: DJI O4 Air Unit Pro camera module
Antenna: DJI O4 Air Unit Pro Antenna
Motor: SPEEDX2 2107.5 1960KV
Prop: Gemfan 5136
FC: GEP-F722-BT-HD V3
MCU: STM32F722
IMU: ICM42688-P(SPI)
OSD: BetaFlight OSD w / AT7456E chip
ESC: GEP-BL32 50A 96K 4IN1 ESC
Power Connector: XT60EW-M
Optional GPS：GEP-M10 GPS
Receiver: PNP / ELRS 2.4G / TBS NanoRX
Recommended battery: LiPo 6S 1050mAh-1550mAh
Printouts Color: emerald green
Weight: 433.4g ± 5g
Flight Time: 6-8 minutes（Based on slow cruising tests, the actual may vary due to product differences, firmware version, flying style, and environment. For reference only）
Includes1 x GEPRC MARK5 O4 Pro FPV
1 x Gemfan 5136（2CW 2CCW）
1 x 15*250mm strap
2 x 20*250mm straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench
Spare Screws Included:
1 x M5 Flange Nylon Knurled Nut
2 x M2 Stainless Steel Press-fit Nuts
1 x M5*25 Stainless Steel Button Head Hex Screw
4 x M3*10 Button Head Hex Screws
4 x M3*8 Button Head Hex Screws
2 x M3*8 Countersunk Hex Screws
2 x M3*5 Countersunk Hex Screws
