6.Magnetic mount
7.Tripod socket
Specification:
Receptor
Silicon photocell
Measuring Function
Illuminance: Ev (lx or fcd)
Color Coordinate: (x,y), (u\\\\\\\',v\\\\\\\') (CIE 1960)
Correlated Color Temperature: CT, uv
Color Difference:(Ev,x,y), (Ev,u\\\\\\\',v\\\\\\\'), (Ev,u\\\\\\\'v\\\\\\\'), (One set of reference color)
Measuring Range
Ev=0~80,000 lx (0~7,432 fcd); CT 99,990K Max.
Accuracy(at 25C/77F, 60%RH)
Ev: (3%+2 digital) (3,000 lx, standard illuminant A measured)
x, y: 0.02 (100 lx, RGB LED light)
Resolution
Ev: 0~9999 lx: 1 lx, Over 10000 lx: 10 lx;
0.0~999.9 fcd: 0.1 fcd, Over 1000 fcd: 1 fcd;
CT: 0~9999 K: 1 K, Over 10000 K: 10 K;
x, y: 0.001; u\\\\\\\'v\\\\\\\': 0.001
Response Time
Approx. 1 sec.
Temperature Drift
Ev: (5%+2 digital) (3,000 lx, standard illuminant A measured)
x, y: 0.008 (100 lx, RGB LED light)
Humidity Drift
Ev: (3%+2 digital) (3,000 lx, standard illuminant A measured)
x, y: 0.005 (100 lx, RGB LED light)
Operation Temperature
Store Temp.
Dimensions
Main Instrument: 140 X 49 X 29mm ( 5.51" x1.93"x1.14")

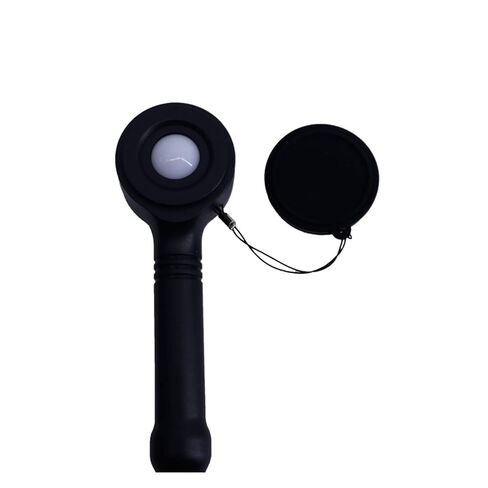

Sensor Probe: 165 X 50 X 36mm ( 6.50" x1.97"x1.42")
Weight
179g (6.31 oz.) without battery
Accessory
Instruction manual, Carrying Case
Applications:
1.Color LED Lighting
2.Commerical Displays
3.Film and Television
4.Projection Hall
5.Warehouses
6.Art Galleries
7.Museums
8.Schools & Libraries
9Theatres
10Arenas
11Stadiums
12Office
