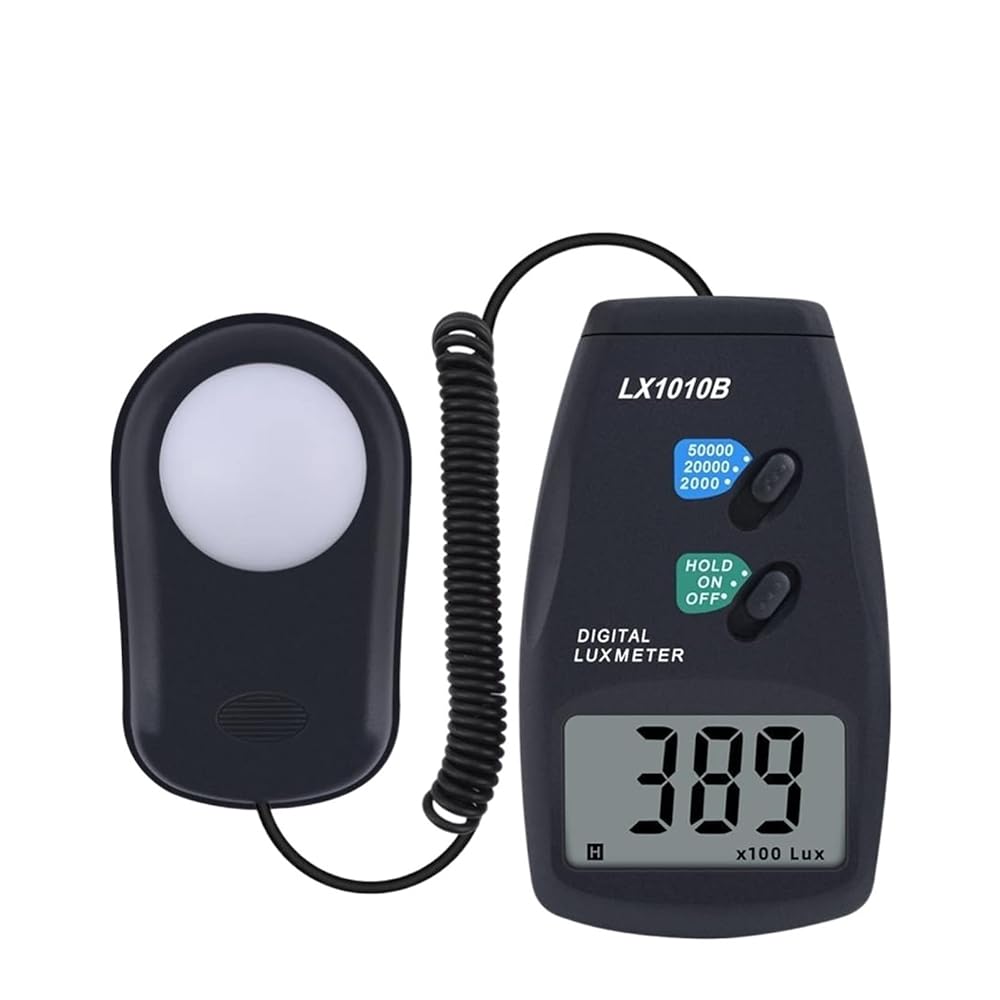

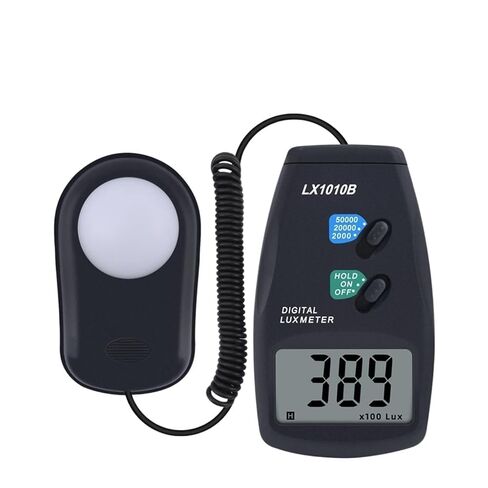

Lx1010B measuring ran is 1lux-50,000lux, the product has high measurement accuracy and fast response, with reading lock function, lock measurement value, digital display lar screen, screen display symbol and unit, easy to read, and can be automatically returned zero.
Specification:
Display: 3 12-digit LCD display showing maximum reading 1999

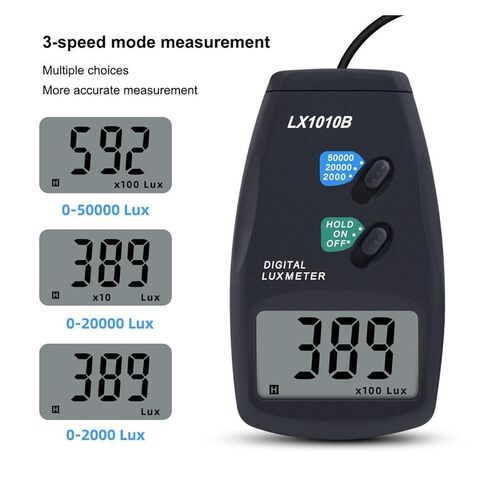

Measuring ran: Lx1010B-2000, 20000, 5000lux, 20,000 lux display reading value needs X10 to be the correct illuminance value 50,000 lux file display reading value X100 is the correct illuminance value
Accuracy: ±4%rdg±0.5%f.s (more than 10,000 lux accuracy is ±5%±10 words) (corrected with color temperature 2856K standard flat light)
Repeat test: ±2%
Temperature characteristics: ±0.1% / °C
Sample rate: 2.0 times / sec
Photoreceptor: Photodiode with filter lens
Working temperature and humidity: 0°C~40°C (32F~104F) 0-70%Rh
Stora temperature and humidity: -10 ° C ~ 50 ° C (14F-1407) 0-80., Rh
Overload display: highest digit "1". Display
Power: Single 9V battery(not included)
Battery life: about 200 hours of continuous use
Photodetector size: 100x60×28
Meter size: 118 × 70 × 29
Weight: 200g
It is widely used and is always with you in a healthy life.
The digital illuminometer is a precision instrument that is suitable for measuring illuminance in a variety of situations.
Suitable for schools, hospitals, homes, offices, factories, hotels, pubs, casinos, shopping malls, department stores, hairdressers and other places.
Packa including:
1 X Luzmeter
1 X Sensor
1 X English User Manual
FAQ
Q1: Measurement methods
A:
1. Turn on the power.
2. Select the appropriate measurement ar.
3. Open the light detection cover and align the front of the light detector with the light source to be measured.
4. Read the measured value of the illuminance meter LCD.
5. When reading the measured value, if the highest digit
