K02 50

KWD 134
اللونك02
مقاس50
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

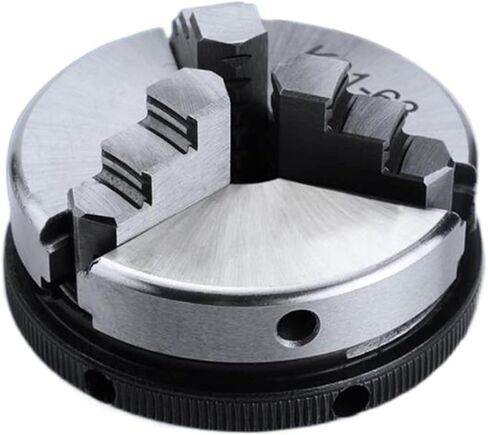

  • 1. Small size and easy to use.
  • 2. High centering accuracy and large clamping range.
  • 3. Made of high-quality steel, with high hardness, wear resistance and durability.
  • 4. The chuck has two installation methods: short-cylinder center installation and threaded installation, which are simple, fast and convenient.
  • 5. The chuck can be used for ordinary lathes, grinders, milling machines and most woodworking lathes, ordinary lathes and industrial machinery lathes on the market.

وصف

Description:
Specification:
Material: all steel parts
Machine tools: Lathe
Chuck structure: large through-hole chuck
Power type: Manual
Quantity: 1pcs
Type
Model
Chuck Type
Chuck Diameter
Chuck Aperture
Clamping Size Range
Holding Size Range
Packaging Size
A
K01-50
3 Jaws Chuck
50mm/1.97"
15mm/0.59"
1-33mm/0.04-0.13"
16-50mm/0.63-1.97"
14*6*6cm/5.51*2.36*2.36"
B
K01-63
3 Jaws Chuck
63mm/2.48"
14mm/0.55"
1-50mm/0.04-1.97"
16-50mm/0.63-1.97"
13*7*7cm/5.12*2.76*2.76"
C

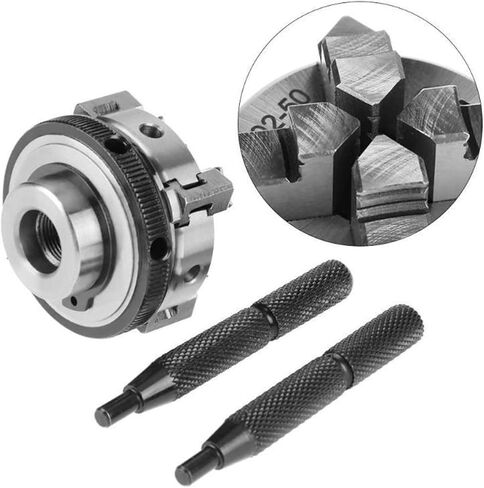

K02-50
4 Jaws Chuck
50mm/1.97"
15mm/0.59"
1-33mm/0.04-0.13"
16-50mm/0.63-1.97"
13*6*6cm/5.12*2.36*2.36"
D
K02-63
4 Jaws Chuck
65mm/2.56"
14mm/0.55"
1-50mm/0.04-1.97"
16-50mm/0.63-1.97"
13*7*7cm/5.12*2.76*2.76"
Package Included:
1 X Lathe Chuck
