Product Name: Hydraulic Chuck Claw Repair Device
Product Material: 40CR Alloy Steel

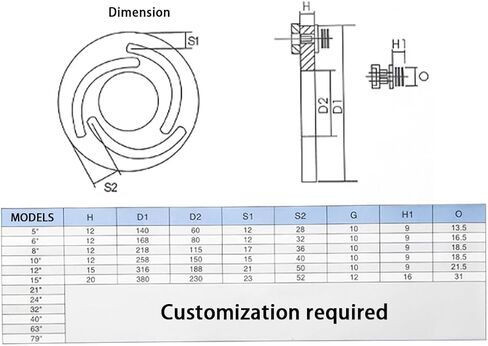

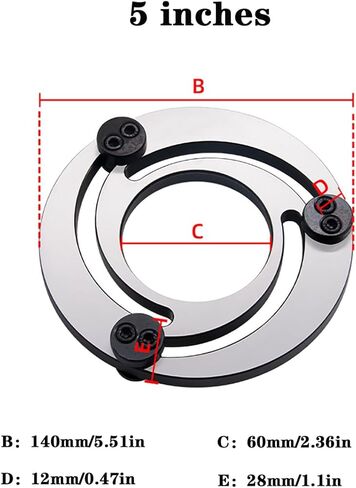

Product size: 4-15 inches
Adaptation: Installation of various machine tools
Difference: The front mounted three jaw chuck is an improvement on the ordinary chuck. It adopts a front mounted nut lock, which greatly improves the convenience of use compared to traditional chuck structures
instructions:
By using a molding ring, not only can it be formed in three ways: external clamping, internal tension, and through molding, but it can also be formed in the same state when clamping the working object, so the core vibration is reduced and the grip strength is improved. [As shown in Figures 1, 2, and 3]
When using hard claws for clamping, poor contact surface can result in a trumpet shape, and poor grip strength can cause centrifugal vibration, affecting accuracy and posing a high risk. (As shown in Figure 4)
When using a forming ring to form together with a clamp, there is no core vibration phenomenon, and the grasping force reaches 100%, which can improve accuracy. As shown in Figure 5)
